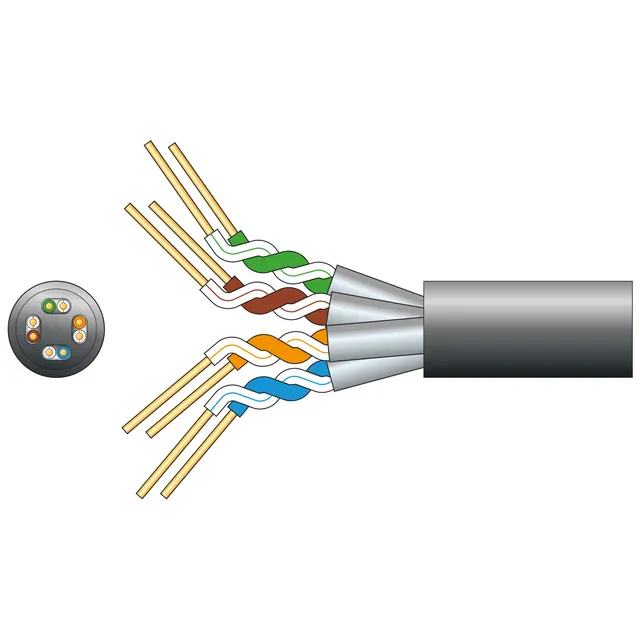

Mercury CAT6A FTP Outdoor Network Cable OFC 305m Grey 808.034UK
Κωδικός παραγγελίας: 25836EAN: 5015972231210
- Conductor:Solid OFC
- Strands:8 x 1/0.560mmØ ±2%
- Cable:diameter7.3±0.5mm
- Screen:Aluminium/Mylar foil
- Insulation:PE 1.330±0.05mmØ
- Όλα τα χαρακτηριστικά
325,00 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Περιγραφή
Cat6a oxygen free copper twisted pair data cable with LDPE sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoor environment.
- AWG 23 oxygen free solid copper conductor
- LDPE sheath with UV resistant properties ideal for outdoor installations
- Supplied on a sturdy wooden drum reel
- Passes Cat6a fluke test 100m at 500MHz
- Complies to TIA/EIA-568 Cat6a standard
Χαρακτηριστικά
- Conductor
- Solid OFC
- Strands
- 8 x 1/0.560mmØ ±2%
- Cable
- diameter7.3±0.5mm
- Screen
- Aluminium/Mylar foil
- Insulation
- PE 1.330±0.05mmØ
- Sheath
- LDPE 0.55±0.05mm thickness
- Capacitance
- <330pf/100m
- DC resistance @ 20°C
- <9.38 Ohms/100m
- Impedance (100 to 250MHz)
- 100±15 Ohms
- Impedance (250 to 500MHz)
- 100±22 Ohms
- Return Loss
- >26.62dB
- Attenuation
- <2.03dB
- NEXT
- >87.2dB
- PSNEXT
- >85.15dB
- ELFEXT
- >88.77dB
- PSELFEXT
- >86.74dB
- Phase delay
- <450.79ns
- Colour
- Black
- Length
- 305m
- Weight
- 17.4kg
