Mercury RG59 Shotgun Foam Cable 100m 808.105UK
Κωδικός παραγγελίας: 19716EAN: 5015972166499
- CSA:0.5mm²
- Conductor diameter:0.8mmØ
- Conductor material:Solid OFC
- Braid:48 x 0.12mmØ
- Dielectric:3.7mmØ foam PE
- Όλα τα χαρακτηριστικά
120,00 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Περιγραφή

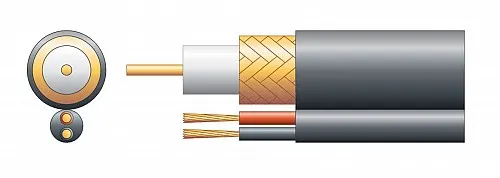

Mercury RG59 Shotgun Foam Cable 100m 808.105UK
75 Ohms RG59 coaxial cable coupled with a two core power cable. Constructed of a solid oxygen free copper conductor, foam filled polyethylene dielectric and copper clad aluminium braid. Paired with a two core strand conductor double insulated power cable. Designed for CCTV power and signal transmission.
- Solid OFC coaxial conductor
- Foam filled PE dielectric
- CCA braid
- Stranded OFC power cable conductor
- Supplied in 100m reel with metric cut markers
- CSA: 0.5mm²
- Conductor diameter: 0.8mmØ
- Conductor material: Solid OFC
- Braid: 48 x 0.12mmØ
- Braid: material CCA
- Dielectric: 3.7mmØ foam PE
- Cable diameter: 6mmØ
- Impedance: 75 Ohms
- Capacitance: 67pF/m
- Velocity factor: 83%
- Power cable: 2 x 7/0.38mmØ (0.79mm²) bare copper, red/black
- Max. current: 6A
- Return loss 5-400MHz: 24dB min./100m
- Return loss 450-1000MHz: 20dB min./100m
- Return loss 1000-2150MHz: 16dB min./100m
- Attenuation @ 5MHz: 2.8dB max./100m
- Attenuation @ 50MHz: 5.1dB max./100m
- Attenuation @ 100MHz: 7.3dB max./100m
- Attenuation @ 200MHz: 10.1dB max./100m
- Attenuation @ 400MHz: 14.9dB max./100m
- Attenuation @ 860MHz: 22.1dB max./100m
- Attenuation @ 1000MHz: 24.7dB max./100m
- Attenuation @ 1750MHz: 34.1dB max./100m
- Attenuation @ 2150MHz: 38.1dB max./100m
- Colour: Black
- Length: 100m
- Weight: 6.4kg
Χαρακτηριστικά
- CSA
- 0.5mm²
- Conductor diameter
- 0.8mmØ
- Conductor material
- Solid OFC
- Braid
- 48 x 0.12mmØ
- Dielectric
- 3.7mmØ foam PE
- Cable diameter
- 6mmØ
- Impedance
- 75 Ohms
- Capacitance
- 67pF/m
- Velocity factor
- 83%
- Power cable
- 2 x 7/0.38mmØ (0.79mm²) bare copper, red/black
- Max. current
- 6A
- Return loss 5-400MHz
- 24dB min./100m
- Return loss 450-1000MHz
- 20dB min./100m
- Return loss 1000-2150MHz
- 16dB min./100m
- Attenuation @ 5MHz
- 2.8dB max./100m
- Attenuation @ 50MHz
- 5.1dB max./100m
- Attenuation @ 100MHz
- 7.3dB max./100m
- Attenuation @ 200MHz
- 10.1dB max./100m
- Attenuation @ 400MHz
- 14.9dB max./100m
- Attenuation @ 860MHz
- 22.1dB max./100m
- Attenuation @ 1000MHz
- 24.7dB max./100m
- Attenuation @ 1750MHz
- 34.1dB max./100m
- Attenuation @ 2150MHz
- 38.1dB max./100m
- Colour
- Black
- Length
- 100m
- Weight
- 6.4kg
