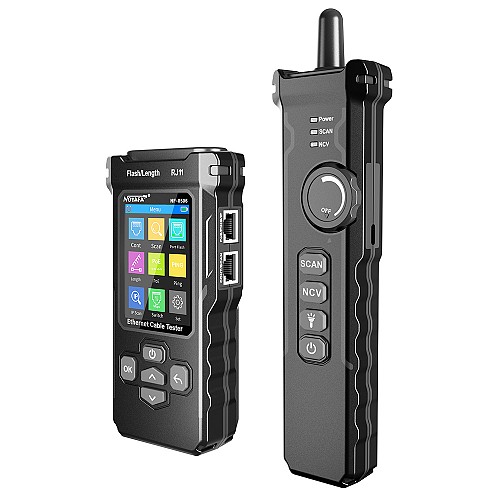

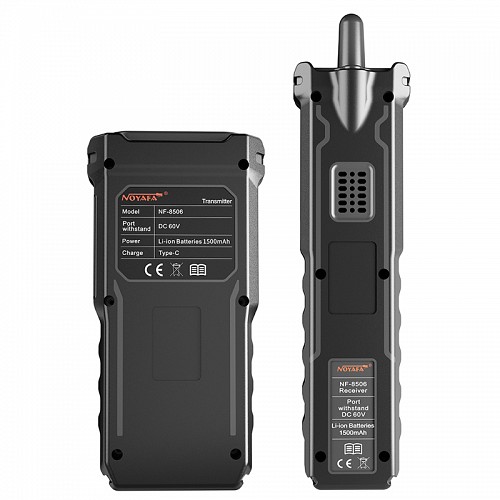

Noyafa NF-8506 Multi-Function Cable Tester/Tracker
Multi-Function Network Cable Tester
- PoE testing : identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard)
- Measure cable length accurately , the range is 200m.
- Two scan modes selectable: AC filter & Non AC filter
- Test physical status for STP, UTP lan cable.
- Hub blink for locating network port by the flashing port light on Hub / Switch.
Ping & IP & Switch testing function
- Ping test:Check network connectivity
- P Scan:Scan out the IP addresses in use in the switch
- Switch test:Identify the switch type 10M/100M/1000M and the duplex mode of the switch.
Other functions:
- Detect AC voltage presence (50V-1000V).
- Lamp function assists use in dark corners.
Transmitter
Wiremap
- Cable type: CAT5,CAT6 (STP & UTP)
- Test with switch directly: Yes
- Max range: 600m
Scan
- Cable type: CAT5/CAT6 (STP & UTP)/RJ11/other metal wires
- AC filter: Yes
- Max range: 600m
Length
- Cable type: CAT5, CAT6 (STP & UTP)
- Test range: 2~200m
- Breakage location: Yes
POE test
- Test range: DC 5~60V standard / non-standard PoE switch
- Voltage display: Yes
- PSE type: Mid-span/End-span/AT-4 pairs
Switch test
- Link speed: 10M/100M/1000M - Duplex Mode(Full/Half)
- Ping Scan function: Yes
- IP Scan function: Yes
- Battery: 3.7V lithium battery
- Dimensions (LxWxD): 150*75*35mm

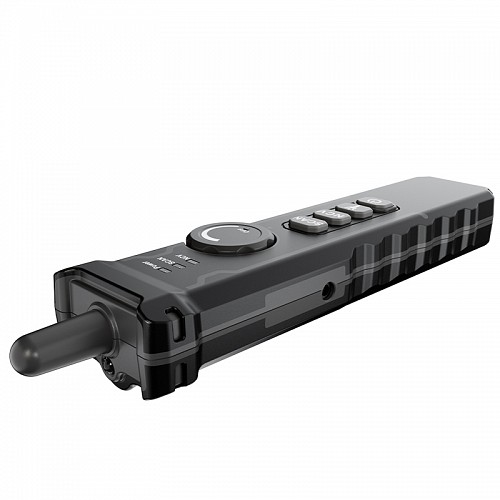

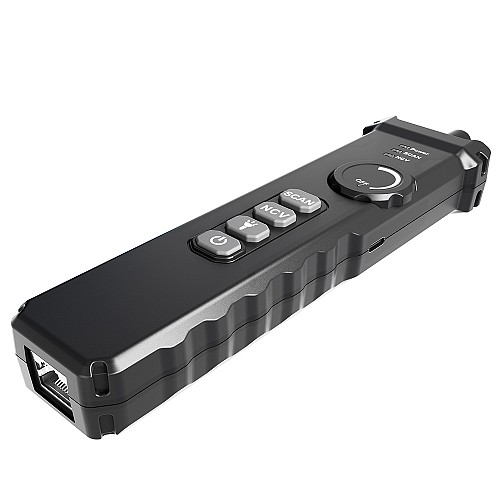

Receiver
- Lamp: Yes
- AC Voltage detecting: Yes
- Battery type: 3.7V lithium battery
- Dimensions (LxWxD): 200*50*33mm
