Zudsec

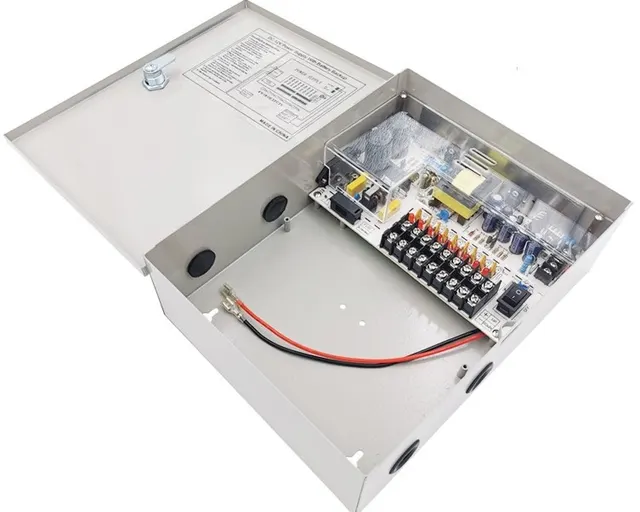

Zudsec Power Supply+UPS 12v10A ZDCP-1210-9U
Κωδικός παραγγελίας: 24691EAN: 45399324146
- Input Voltage:AC110-240V
- Input Voltage Frequency:60Hz/50Hz
- Output DC:12V, 10A, 9CH (1200W)
- Total Output Current:10A ( (500amp/output, 9channels for 9 sets security cameras))
- Total Outputs:120W
- Όλα τα χαρακτηριστικά
95,00 €με ΦΠΑ
Αποστολή σε 2-4 εργάσιμες
Δωρεάν παραλαβή από το κατάστημα
Περιγραφή
- AC input voltage range is switched by switch
- Support UPS Uninterrupted function
- Medium volume, light weight and high efficiency
- Protection Characteristics: Output over-voltage, over-current and short-circuit protection
- With boot-up display (light emitting diode)
- 100% Full Load Burning Machine Test
- Built-in EMI filter
- 100% load test
- Full range of input voltage
- Output voltage accurate and stable
- Output low ripple and noise
Χαρακτηριστικά
- Input Voltage
- AC110-240V
- Input Voltage Frequency
- 60Hz/50Hz
- Output DC
- 12V, 10A, 9CH (1200W)
- Total Output Current
- 10A ( (500amp/output, 9channels for 9 sets security cameras))
- Total Outputs
- 120W
- Fuse Type
- Glass (Resetable fuse)
- Fuse rating
- 1.5Amps /250VAC
- <u><strong>Backup battery
- DC 12V 7Ah Sealed lead-acid battery (not included )</strong></u>
- General Protection
- each output has individual glass (Resetable) fuse and LED indicator, when problem occurs,only affect the individual output, other outputs still working
- Circuit Short Protection
- when short condition occurs, individual glass (Resetable) fuse will open the circuit,when condition removed, glass (Resetable) fuse will automatically back to close
- High Voltage Protection
- when high voltage occurs, the surge protection will be hit through to protect the connected device
- high tenperature protection
- 115 degree
- Feature Power
- ON/OFF switch
- Safety standards
- GB4943, UL60950-1,EN60950-1 standards.
- E M C standards
- GB9254, EN55022 class A EN61347-2-13:2008 standards
- CCTV
- Camera, PTZ, IR Illuminators, Video Process Equipment, etc
- Access Control
- Reader, Lock, Panel, etc.
- Size
- (mm) 240(L)*210(M)*53(H)mm
- Cooling method
- Natural cooling air convection
- Weight
- 1.5KG
