AJAX

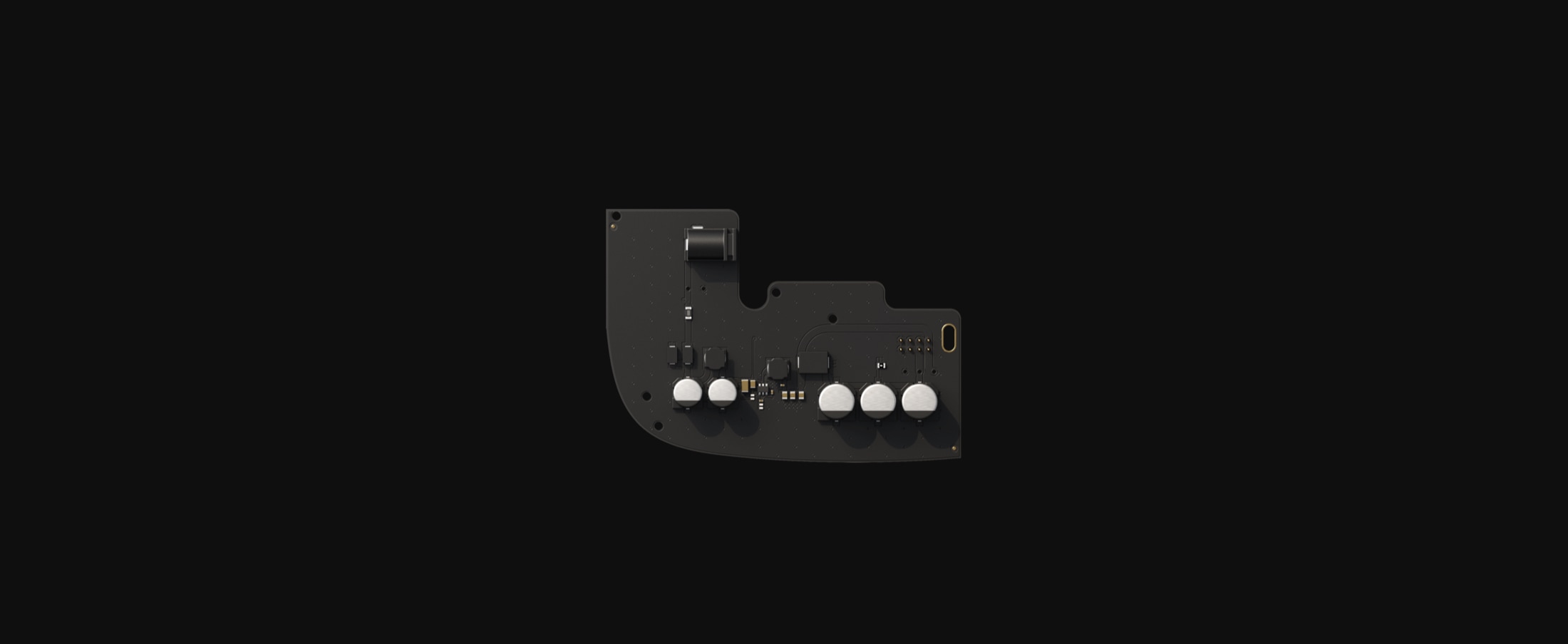

AJAX Power Board for Hub2 12V
Order code: 20828EAN: 0810031990504
- Input Voltage:8-20 V DC
- Output Voltage:4.8 V ± 3%
- Switch-on voltage:8 V ± 2.5%
- Switch-off voltage:6.9-7.5 V (depending on load)
- Input Current:<1 А
- All specifications
€42.00incl. VAT
Ships in 2-4 working days
Free pickup from our shop
Description
- A power supply unit, connecting the Hub 2 control panel to a low-voltage power source
Compatibility
- The power supply unit is compatible with Hub 2 central panel. It features a standard socket for connecting the power jack plug and has a bundled terminal adapter.
Installation

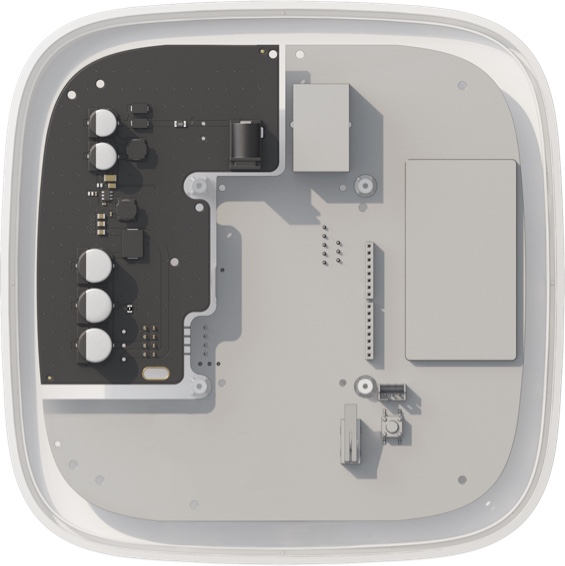

- 12V PSU is installed into the device body, replacing the pre-installed 110/230 V power supply unit
Specifications
- Input Voltage
- 8-20 V DC
- Output Voltage
- 4.8 V ± 3%
- Switch-on voltage
- 8 V ± 2.5%
- Switch-off voltage
- 6.9-7.5 V (depending on load)
- Input Current
- <1 А
- Output Current
- 1,5 А
- Connection
- Socket: 6,5 × 2 mm / Plug: 5,5 × 2,1 mm (power jack)
- Dimensions
- 98 × 70 × 17 mm
- Weight
- 28 g
