CasaTunes 2 Channels X 100W Amplifier

Order code: 23747

Audio Inputs:Stereo Analog RCA
Audio Outputs:Buffered stereo analog RCA loop output
Output power:100 watts per channel into 8 ohms (0.1% THD+N), or 125 watts per channel into 4 ohms (0.5% THD+N), or 225 watts into a single 8 ohm load (0.2% THD+N)
Minimum Output Impedance:4 ohms in stereo mode, 8 ohms in mono bridged mode
Trigger Input:12 VDC, 10 kΩ
All specifications

€399.00€900.00incl. VAT

You save €501.00 (56%)

Ships in 2-4 working days

Free pickup from our shop

Description

Class-D amplifier providing 100 watts/channel (RMS) into 8 ohm loads or 125 watts/channel into 4-ohm loads
Bridgeable output provides 225 watts into a single 8-ohm load

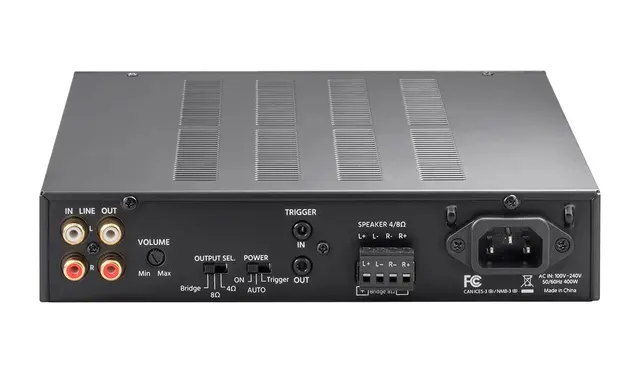

4-pole detachable speaker screw connector (Phoenix connector) with support for up to 12 AWG speaker wire
12-volt trigger input for power-on/off
12-volt trigger output for controlling other devices
Buffered loop output of original signal for connecting additional amplifiers
Rear panel volume gain adjustment
Built-in thermal and short circuit protection circuits

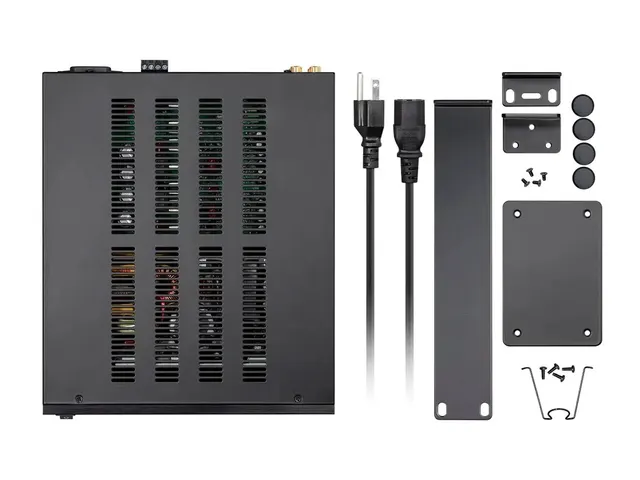

Includes rack-mount ears for mounting a single unit, or two units side-by-side

Audio Inputs: Stereo Analog RCA
Audio Outputs: Buffered stereo analog RCA loop output
Output power: 100 watts per channel into 8 ohms (0.1% THD+N), or 125 watts per channel into 4 ohms (0.5% THD+N), or 225 watts into a single 8 ohm load (0.2% THD+N)
Minimum Output Impedance: 4 ohms in stereo mode, 8 ohms in mono bridged mode
Trigger Input: 12 VDC, 10 kΩ
Trigger Output: 12VCD, 100mA
Input Power: 100 - 240 VAC, 50/60Hz, 2.5A
Standby Power Consumption: ≤ 0.5 watts
