Citronic
Citronic CSP408 8 Channel Mixer & Amplifier 400W with DSP 170.841UK
Order code: 24634EAN: 5015972196175
- Power consumption:600W
- Fuse:T10A (5 x 20mm, 250V)
- Output power @ 4 Ohms:2 x 200Wrms
- Output power @ 8 Ohms:2 x 130Wrms
- Power Supply:230Vac 50Hz (IEC)
- All specifications
€349.00incl. VAT
Ships in 2-4 working days
Free pickup from our shop
Description

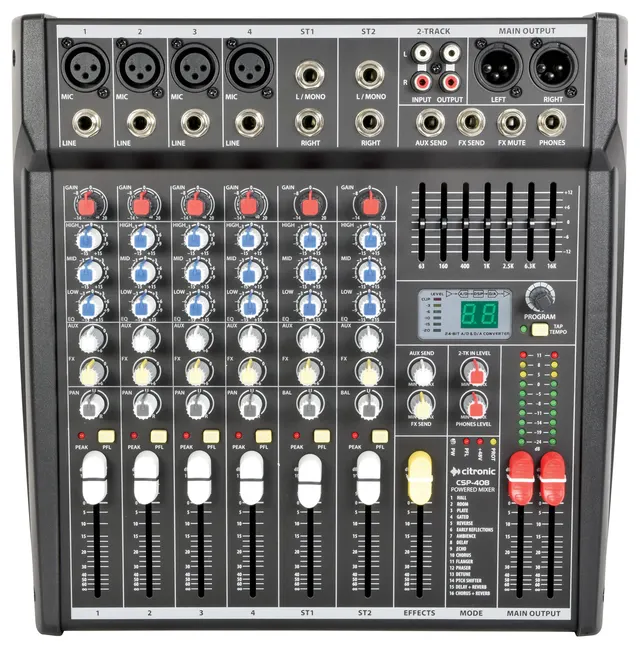

Powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. The built-in stereo amplifier delivers ample power to drive 2 or 4 speakers for coverage in medium sized venues, offering a compact and comprehensive solution for mobile PA, bars and special events.
- 24-bit 16 program DSP effects
- 48V phantom power for XLR inputs
- 3-band EQ per channel
- 7-band global graphic EQ
- Internal stereo power amplifier
- Balanced main outputs
Specifications
- Power consumption
- 600W
- Fuse
- T10A (5 x 20mm, 250V)
- Output power @ 4 Ohms
- 2 x 200Wrms
- Output power @ 8 Ohms
- 2 x 130Wrms
- Power Supply
- 230Vac 50Hz (IEC)

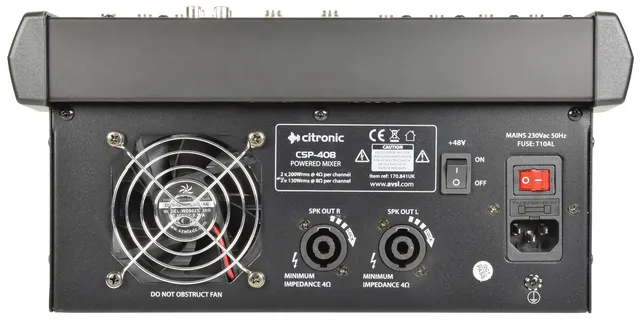

- Speaker
- outputs: L+R SPK connectors
- Effects
- 16 program DSP (24-bit sigma-delta, 40khz)
- Phantom Power
- +48V (XLR inputs)
- Frequency response
- 20Hz-30kHz (0.5dB)
- Input level
- +24dBu
- Output level
- line: +26dBu
- Crosstalk
- >85dB (fader mute), >82dB (channel)
- Noise rms
- 22Hz-22kHz-122dBu (EIN), -82dBu (mix)
- EQ
- low: 80Hz ±15dB shelving
- Input impedance
- line (balanced): 10k Ohms
- Sensitivity
- line-40 to +14dBu
- Output impedance
- <75 Ohms
- Inputs
- mic/line 4 x balanced XLRF/TRS jack
- Headphone output
- 6.3mm jack, 30-600 Ohms

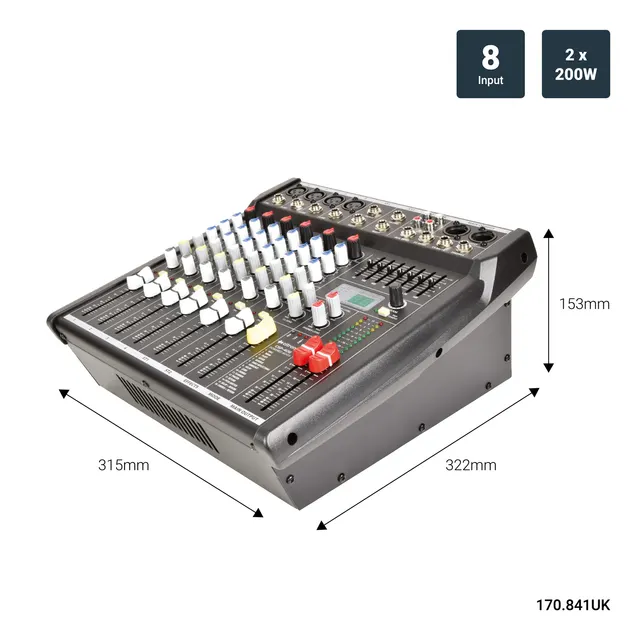

- Dimensions
- 315 x 322 x 153mm
- Weight
- 6.80kg
