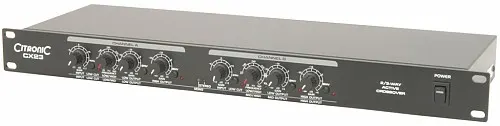

Citronic CX23 2/3-way crossover 1U 170.929UK

Citronic CX23 2/3-way crossover 1U 170.929UK

The CX23 is a 2-way stereo or 3-way mono active crossover designed to split frequencies so that low frequencies are delivered to the amp driving the sub cabinets and mid/top frequencies are delivered to the amp driving the mid/top frequency cabs. This type of system is more efficient and delivers more accurate sound quality, especially in larger PA systems.

• 2-way stereo, 3-way mono crossover
• 19" rack mountable
• Butterworth filters - 18dB/octave
• Continuously adjustable cutoff frequencies
• 40Hz ultra-low frequency cut
• Phase invert function
• Inputs and outputs via XLR

• Power supply: 115/230Vac selectable 50/60Hz (IEC)
• Input impedance: balanced40k ohms
• Input impedance: unbalanced20k ohms
• Output impedance: 220 ohms
• Crossover ranges: stereo50Hz-5kHz;750Hz-7.5kHz
• Crossover ranges: mono50Hz-5kHz;750Hz-7.5kHz; 2kHz-20kHz
• Filter slope: 18dB/octave
• Frequency response: 20Hz-25kHz +0/-1dB
• Signal to noise ratio: >90dB
• THD: 0.006%
• Dimensions4: 82 x 44 x 170mm
• Weight: 2.5Kg
