Citronic

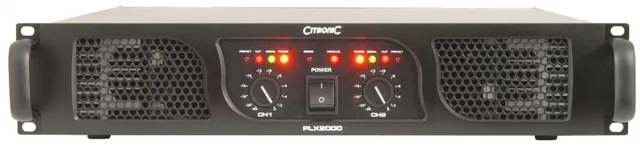

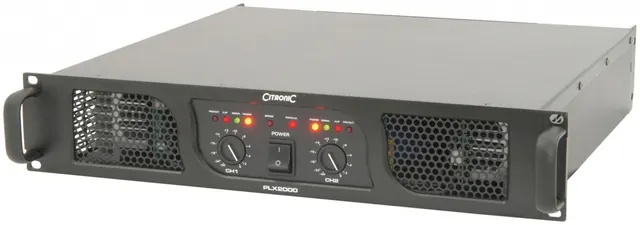

Citronic PLX2000 Power Amp 2x1000W/2ohm 172.214UK
Order code: 14282EAN: 5015972100912
- Power Supply:240Vac, 50Hz (IEC)
- Controls:Level channel 1, level channel 2, ground, mode, clip limiter
- Input impedance:20k ohms
- Frequency response:5Hz - 50kHz
- Total harmonic distortion:0.05%
- All specifications
€405.00incl. VAT
Ships in 2-4 working days
Free pickup from our shop
Description

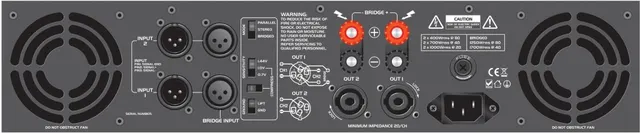

19" rackmount 2U power amplifiers with dual fan cooling and class H architecture for safe, reliable power delivery. Balanced inputs via 6.3mm jack or XLR sockets, speaker outputs on 2 SPK connectors or 4mm binding posts. High power output stable down to 2 Ohms load per side can also be bridged mono to 4 Ohms. Switchable ground lift, bridge mode and clip limiter.
- Bridge mode for high power mono operation
- Output stable down to 2 Ohms
- Removable handles for low profile install
- Switchable clip limiter
Specifications
- Power Supply
- 240Vac, 50Hz (IEC)
- Controls
- Level channel 1, level channel 2, ground, mode, clip limiter
- Input impedance
- 20k ohms
- Frequency response
- 5Hz - 50kHz
- Total harmonic distortion
- 0.05%
- Slew rate
- 40V/us
- Damping factor
- >400
- Protection
- Short-circuit, overload, D.C. and thermal protect
- Dimensions
- 482 x 453 x 88mm (2U
- Output power
- 2 x 1000Wrms @2 ohms
- Power rms @ 2 Ohms
- 2 x 1000W
- Power rms @ 4 Ohms
- 2 x 700W
- Power rms @ 8 Ohms
- 2 x 400W
- Power rms bridge @ 4 Ohms
- 1700W
- Power rms bridge @ 8 Ohms
- 1250W
- Weight
- 22.5kg
