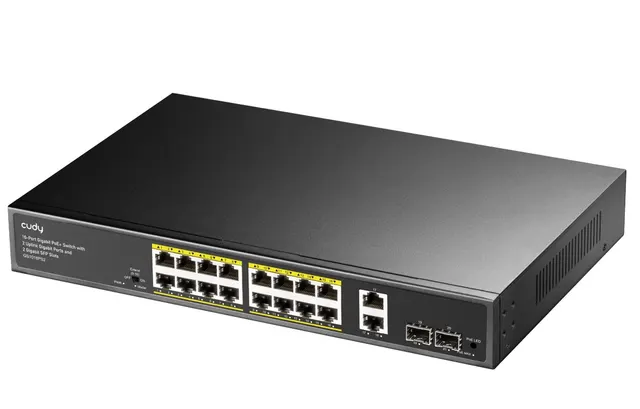

Cudy Switch PoE Gigabit 16PoE + 2GbE + 2SFP Uplink 200W R/M GS1018PS2
Order code: 25963EAN: 6971690793326
- PoE Standard:IEEE802.3af /IEEE802.3at
- Max each port:15.4W ( IEEE 802.3af )
- PoE compatibility:IEEE 802.3af/at adaptive
- PoE port output:DC48-55V
- Power Pin:Power over spare pairs 1/2(+) , 3/6 (-)
- All specifications
€159.99incl. VAT
Ships in 2-4 working days
Free pickup from our shop
Description
- Dual uplink GbE and dual SFP slots allow network expansion and long-distance surveillance
- 16× GbE PoE Ports, 802.3at / 802.3af (30W per port)
- 2× Uplink GbE, 2× Uplink SFP
- Port 9-16 Supports Extend (CCTV) Mode for max 250 meters transmission
- 200-watt total power supply
- Watchdog detects unresponsive PoE clients and restores them under Extend mode
- PoE Port Priority streamlines device power management
Specifications
- PoE Standard
- IEEE802.3af /IEEE802.3at
- Max each port
- 15.4W ( IEEE 802.3af )
- PoE compatibility
- IEEE 802.3af/at adaptive
- PoE port output
- DC48-55V
- Power Pin
- Power over spare pairs 1/2(+) , 3/6 (-)
- 10BASE-T
- Cat 5E UTP(≤250 meter)
- 100BASE-TX
- Cat5 or more UTP (≤100 meter)
- 1000BASE-TX
- Cat5 or more UTP (≤100 meter)
- Multimode optical fiber
- 50/125, 62.5/125, 100/140um
- Single-mode optical fiber
- 8/125, 8.7/125, 9/125, 10/125um
- Bandwidth
- 40Gbps
- MAC
- 8K
- Packet Buffer Memory
- 3 Mbit
- Packet Forwarding Rate
- 29.76 Mpps

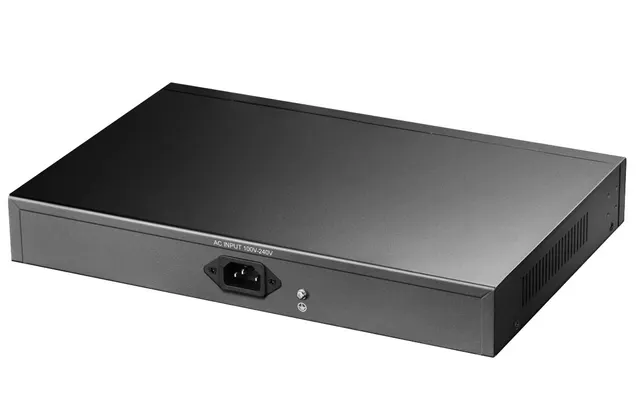

- Power input
- AC100-240V 50/60Hz, Power Budget: 200 W
- Operating Temperature
- -20℃ ~ 50℃;
- Storage Temperature
- -40℃ ~ 80℃;
- Operating Humidity
- Max 90%, non-condensing
- Storage Humidity
- Max 95%, non-condensing
- Working Height
- Max to 10,000 feet (3,000 meters)
- Storage Height
- Max to 10,000 feet (3,000 meters)
