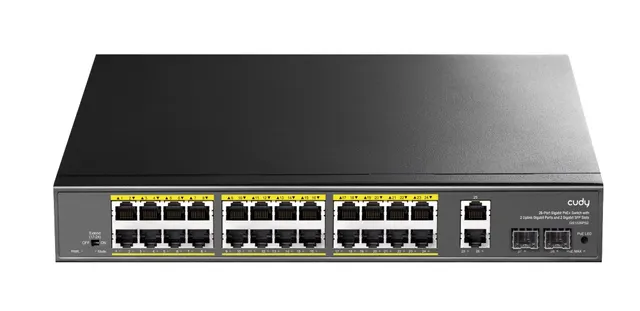

Cudy Switch PoE Gigabit 24PoE + 2GbE + 2SFP Uplink 300W R/M GS1026PS2

Order code: 25962EAN: 6971690793333

PoE Standard:IEEE802.3af /IEEE802.3at
Max each port:15.4W ( IEEE 802.3af )
PoE compatibility:IEEE 802.3af/at adaptive
PoE port output:DC48-55V
Power Pin:Power over spare pairs 1/2(+) , 3/6 (-)
All specifications

€219.99incl. VAT

Ships in 2-4 working days

Free pickup from our shop

Description

Dual uplink GbE and dual SFP slots allow network expansion and long-distance surveillance
24× GbE PoE Ports, 802.3at / 802.3af (30W per port)
Port 17-24 Supports CCTV Mode for max 250 meters transmission
300-watt total power supply
Watchdog detects unresponsive PoE clients under VLAN mode
PoE Port Priority streamlines device power management

Specifications

PoE Standard: IEEE802.3af /IEEE802.3at
Max each port: 15.4W ( IEEE 802.3af )
PoE compatibility: IEEE 802.3af/at adaptive
PoE port output: DC48-55V
Power Pin: Power over spare pairs 1/2(+) , 3/6 (-)
10BASE-T: Cat 5E UTP(≤250 meter)
100BASE-TX: Cat5 or more UTP (≤100 meter)
1000BASE-TX: Cat5 or more UTP (≤100 meter)
MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km
Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km
Bandwidth: 56Gbps
MAC: 8K
Packet Buffer Memory: 3 Mbit
Packet Forwarding Rate: 41.644 Mpps
Power input: AC100-240V 50/60Hz, Power Budget: 300 W
PWR: Power supply indicator (Red)
Lighting: Powered
Un-Light: No Power
On: Link normal
Off: Link blocked
Flashing: Data transmitting
Operating Temperature: -20℃ ~ 50℃;
Storage Temperature: -40℃ ~ 80℃;
Operating Humidity: Max 90%, non-condensing
Storage Humidity: Max 95%, non-condensing
Working Height: Max to 10,000 feet (3,000 meters)
Storage Height: Max to 10,000 feet (3,000 meters)
