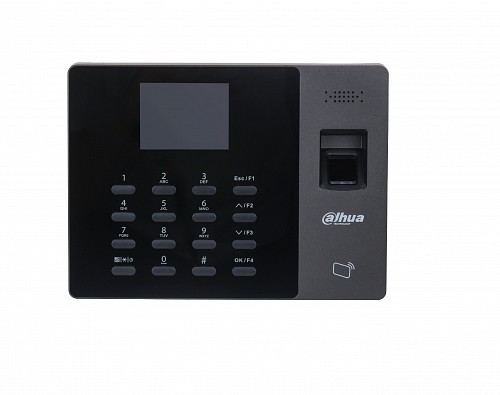

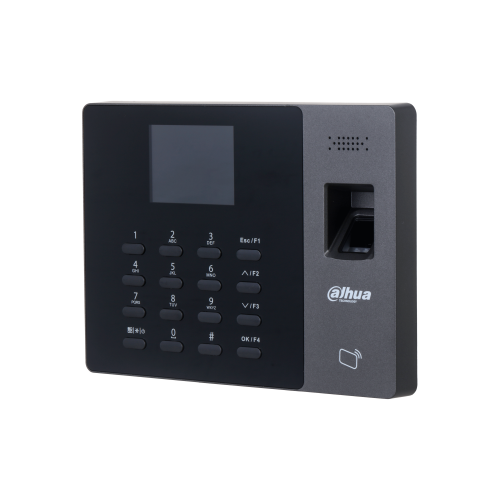

Dahua AC Time Attendance Terminal ASA1222GL
- Built with 16 mechanical buttons, a 2.4 inch LCD display and has a user friendly interface
- Lasts up to 3 hours when the battery is fully charged
- Personnel can clock in and out with fingerprint, password and card swipe
- Supports up to 1,000 users, 2,000 fingerprints, 1,000 passwords, 1,000 cards and 100,000 attendance records
- The shifts of users and departments can be arranged on a weekly and monthly basis, and each shift can have 2 periods and 1 overtime period
- Provides scheduled reminders accompanied with a ring
- Imports and exports data from the USB flash drive, such a data on personnel, fingerprints, attendance and configurations
- Supports voice prompt
- Sends attendance records to the SmartPSS Lite client through the network
- Updates the firmware through the Internet and USB flash drive
System
- Main Processor : Embedded Processor
- Button Type : Mechanical
- Network Protocol : UDP; TCP; IPv4
Basic
- Display Screen : 2.4" TFT
- Product Type : Attendance Standalone
- Screen Type : Non-touchscreen
- Screen Resolution : 320 × 240
- Voice Prompt : Yes
- Powering On/Off Button : 1
- Casing Material : PC + ABS
Function
- Card Type : IC card
- Network Update : Yes
- Real-time Monitoring : Yes
- Auto Registration : Yes
Performance
- Response Time : 0.1 s
- Card Reading Distance : 0 cm–5 cm
- Fingerprint Sensor Type : Optical fingerprint
- Fingerprint Verification Mode : 1:N
- Fingerprint Recognition Time : 2 s
Attendance
- Export Attendance Record : USB flash drive export
- Attendance Check Mode : Free attendance; Fixed attendance
- Attendance Statistics : Yes
- Department Setting : Yes
- Schedule Setting : Yes
User
- User (Card) Type : General user
Capacity
- User Capacity : 1,000
- Fingerprint Capacity : 2,000
- Card Capacity : 1,000
- Password Capacity : 1,000
- Record Capacity : 100,000
Port
- USB : 1 × USB 2.0 port
- Network Port : 1 × RJ-45
- Exit Button : 1 channel
- Lock Control : 1 channel, overlay
General
- Power Adapter : Included
- Power Supply : 12 VDC, 1 A
- Power Consumption : ≤ 12 W (Working)
- Product Dimensions : 181.6 mm × 135.6 mm × 32.7 mm
- Packaging Dimensions : 298 mm × 162 mm × 71 mm (L × W × H, in an inner carton) / 383 mm × 313 mm × 349 mm (L × W × H, protection box)
- Operating Temperature : –10 °C to +55 °C
- Operating Humidity : 5%–95% (RH)
- Operating Environment : Indoor
- Gross Weight : 0.61 kg
- Installation : Surface Mount
- Certifications : CE; FCC
- Storage Temperature : –20 °C to +60 °C
