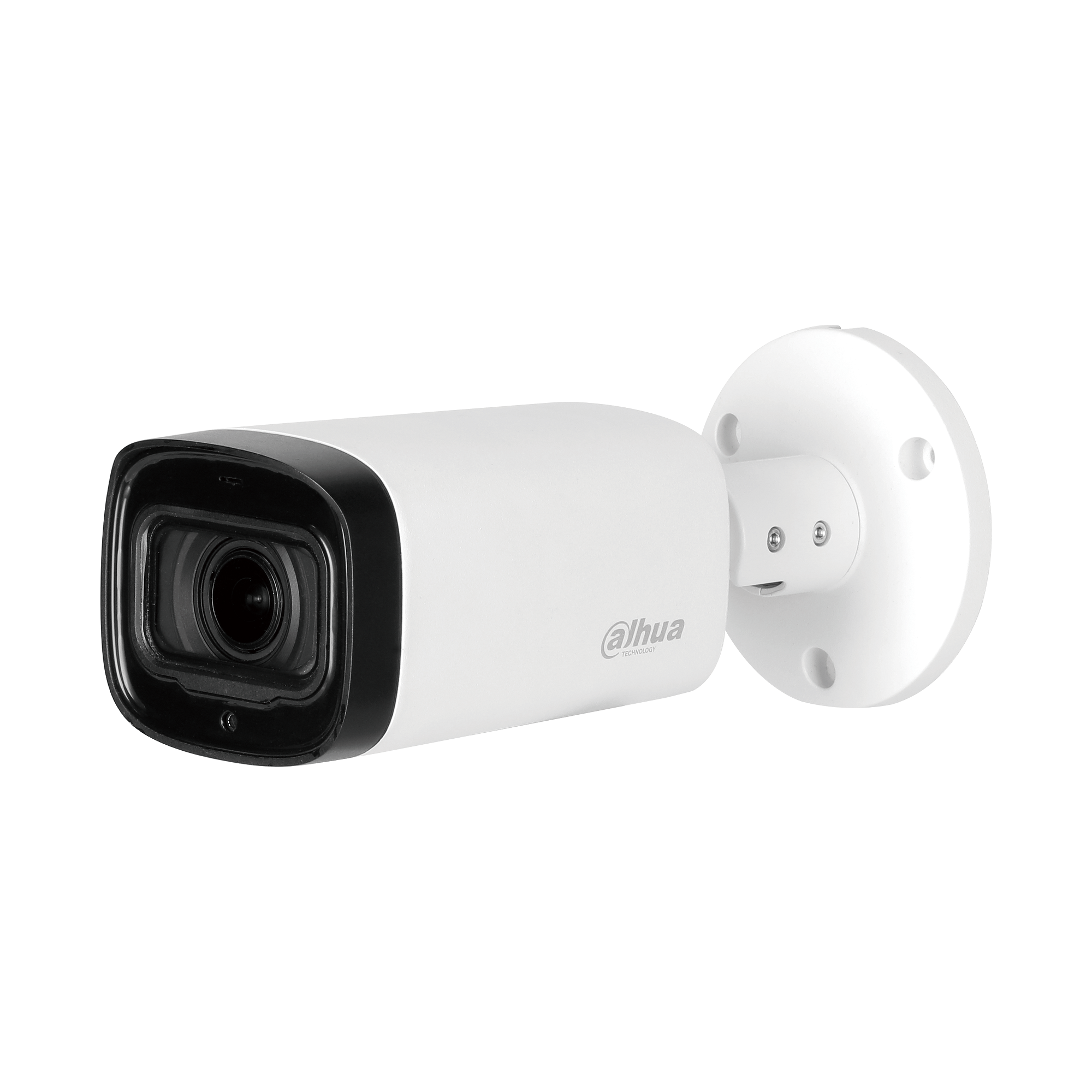

Dahua HDCVI 2.0MP Bullet 2.7-12mm Starlight Motorized HFW1231R-Z-A

Specifications

Image Sensor

1/2.8" CMOS

Effective Pixels

1920(H)×1080(V), 2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25~1/100000s / NTSC: 1/30~1/100000s

Minimum Illumination

0.002Lux/F1.5, 30IRE, 0Lux IR on

S/N Ratio

More than 65dB

IR Distance

Up to 80m

IR On/Off Control

Auto

IR LEDs

4

Lens Type

Motorized vari-focal / Auto Focus

Lens Mount

φ14

Focal Length

2.7 mm–12 mm

Max. Aperture

F1.5

Field of View

Diagonal: 38°– 123° / Horizontal: 33°–102° / Vertical: 19°–53°

Iris Control

Fixed

Close Focus Distance

0.5 m

Resolution

1080P (1920×1080) / 960H (960 × 576/960 × 480)

Frame Rate

CVI : PAL: 1080P@25fps; NTSC: 1080P@30fps; / AHD : PAL: 1080P@25fps; NTSC: 1080P@30fps; / TVI : PAL: 1080P@25fps; NTSC: 1080P@30fps; / CVBS : PAL: 960×576H; NTSC: 960×480H;

Day/Night

Auto (ICR)

BLC Mode

BLC / HLC / DWDR

WDR

130dB

Gain Control

Auto / Manual

Noise Reduction

3D NR

White Balance

Auto/Area WB

Smart IR

Auto / Manual

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

CE (EN55032

2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)

Power Supply

12V DC ±30%

Power consumption

Max 9.4W (12V DC, IR on)

Operating Temperature

–30°C to +60°C (–22°F to +140°F); < 95% (non-condensation)

Storage Temperature

–30°C to +60°C (–22°F to +140°F); < 95% (non-condensation)

Ingress Protection & Vandal Resistance

IP67

Casing

Metal throughout the whole casing

Camera Dimensions

209.6 mm × 90.4 mm × 90.4 mm

Net Weight

0.55 kg

Gross weight

0.76 kg
