Dahua

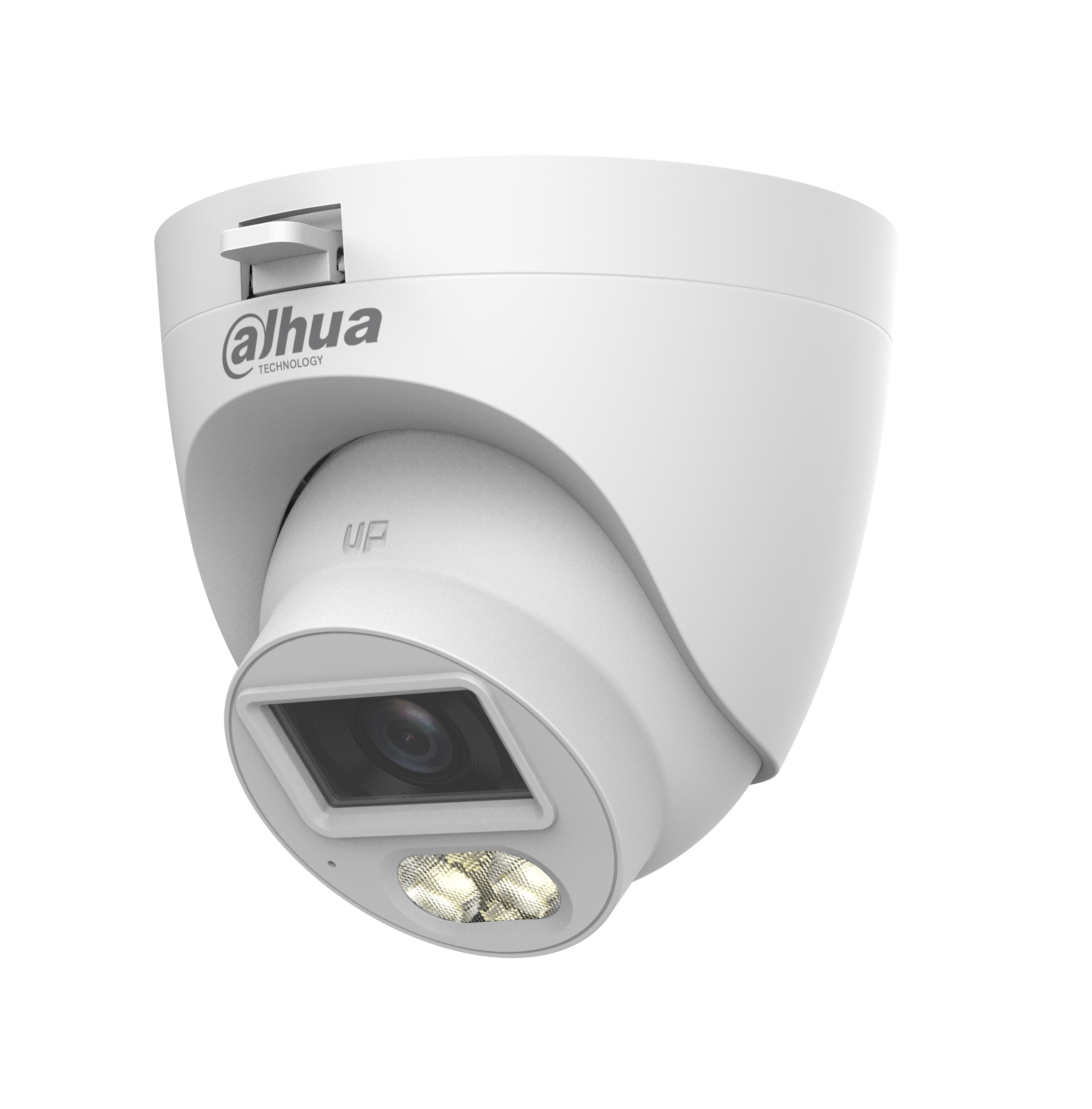

Dahua HDCVI 5.0MP Dome 2.8mm Dual Illuminator HDW1500CLQ-IL-A-0280B-S3
Order code: 28746
- Image Sensor:5 MP CMOS
- Max. Resolution:2880 (H) × 1620 (V)
- Scanning System:Progressive
- Electronic Shutter Speed:PAL: 1/25 s–1/100000 s / NTSC: 1/30 s–1/100000 s
- Min. Illumination:0.01 [email protected] (Color, 30 IRE) / 0.001 [email protected] (B/W, 30 IRE) / 0 lux (Illuminator on)
- All specifications
€72.00incl. VAT
Out of stock
Description
- * The parameters and datasheets below can only be applied to1500-IL-S3 series.
- * In order to use the 5MP 16:9 and the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.
- Max. 25 fps@5MP (16:9 video output)
- Starlight, 3D NR
- Smart Dual Light.
- 30 m illumination distance.
- Built-in Mic.
- Quick-to-install eyeball saves installation time.
- 2.8 mm
- CVI/CVBS/AHD/TVI switchable.
- IP67, 12 VDC.
Specifications
- Image Sensor
- 5 MP CMOS
- Max. Resolution
- 2880 (H) × 1620 (V)
- Scanning System
- Progressive
- Electronic Shutter Speed
- PAL: 1/25 s–1/100000 s / NTSC: 1/30 s–1/100000 s
- Min. Illumination
- 0.01 [email protected] (Color, 30 IRE) / 0.001 [email protected] (B/W, 30 IRE) / 0 lux (Illuminator on)
- S/N Ratio
- >65 dB
- Illumination Distance
- IR: 30 m / Warm light: 30 m
- Illuminator On/Off Control
- Auto
- Illuminator Number
- 2 (Multi-core light)
- Lens Type
- Fixed-focal
- Auto Focus
- No
- Lens Mount
- M12
- Focal Length
- 2.8 mm; 3.6 mm
- Max. Aperture
- F1.6
- Field of View
- 2.8 mm: H: 113.3°; V: 62.1°; D: 134.3° / 3.6 mm: H: 90.1°; V: 47.8°; D: 109.3°
- Iris Control
- Fixed
- Close Focus Distance
- 2.8 mm: 0.8 m / 3.6 mm: 1.3 m
