Dahua

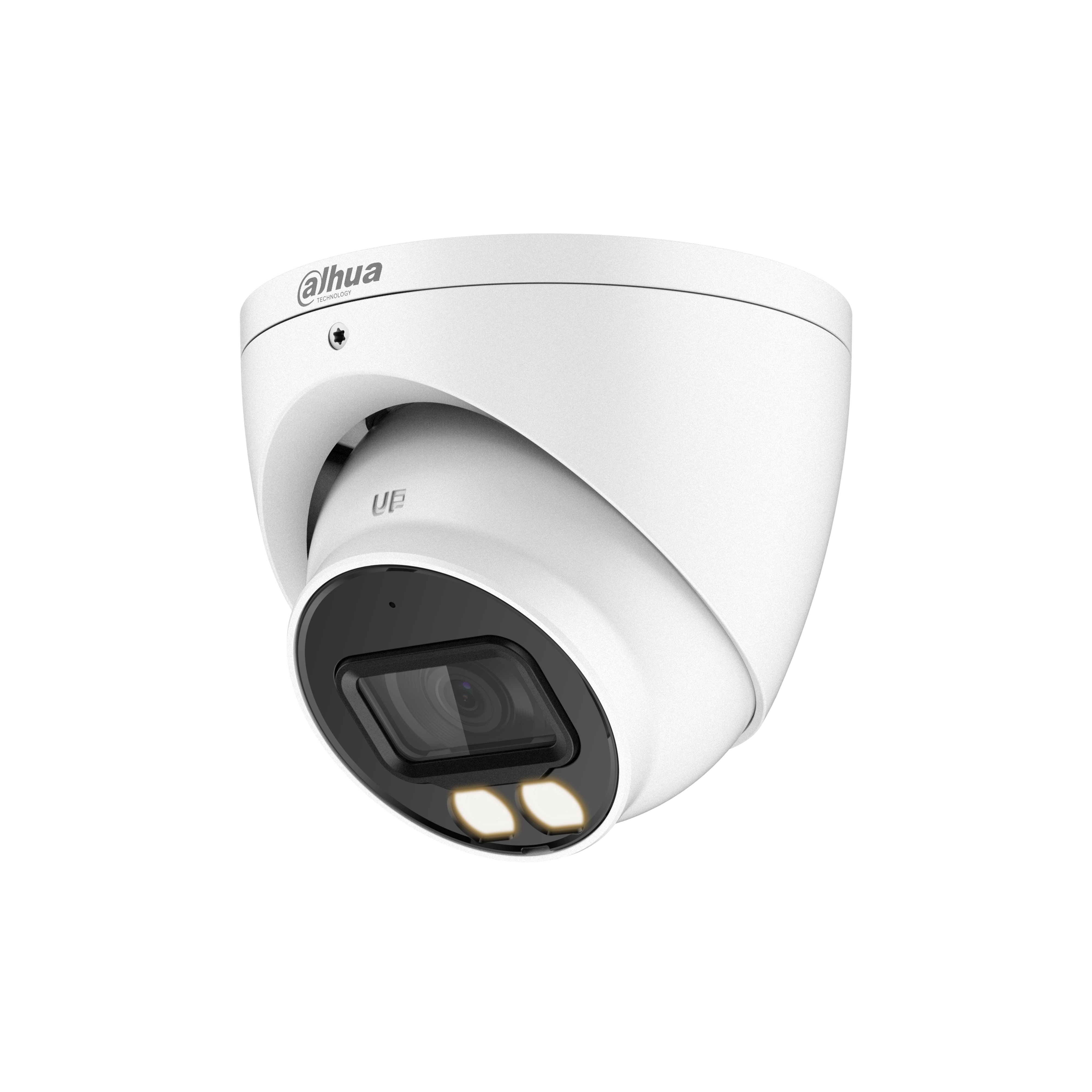

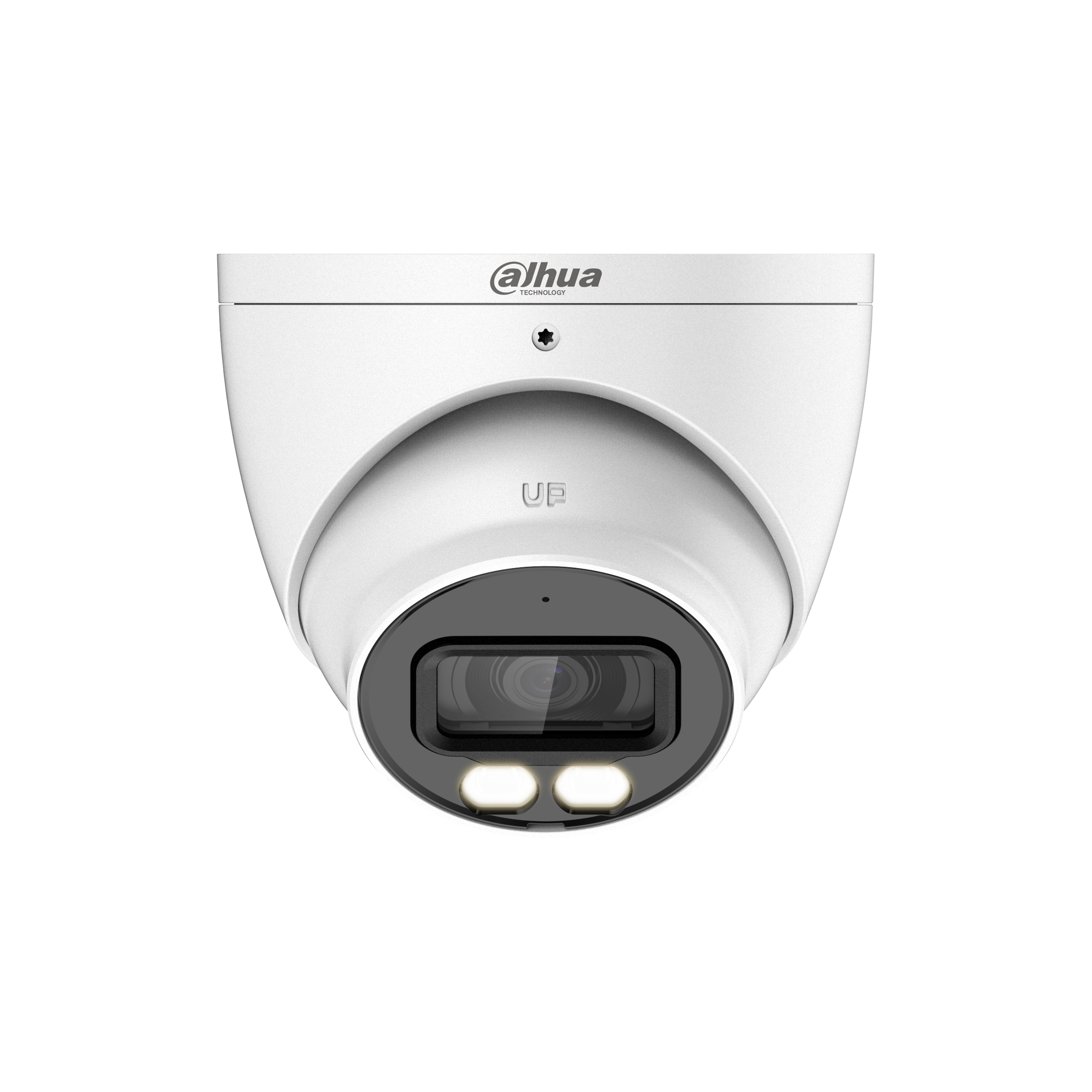

Dahua HDCVI 5.0MP Dome 2.8mm Dual Illuminator HDW1509T-IL-A-0280B-S2
Order code: 24692
- Pixel:5MP
- Image Sensor:5MP CMOS
- Max. Resolution:2880 (H) × 1620 (V)
- Scanning System:Progressive
- Electronic Shutter Speed:PAL: 1/3 s–1/100000 s / NTSC: 1/4 s–1/100000 s
- All specifications
€114.00incl. VAT
Out of stock
Description
* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
- Max 25 fps@5MP (16:9 video output)
- 120 dB true WDR, 3D NR
- Smart Dual Illuminators
- 40 m illumination distance
- Super Adapt
- Built-in MIC
- 2.8 mm fixed lens
- CVI/CVBS/AHD/TVI switchable
- IP67, 12 VDC
Specifications
- Pixel
- 5MP
- Image Sensor
- 5MP CMOS
- Max. Resolution
- 2880 (H) × 1620 (V)
- Scanning System
- Progressive
- Electronic Shutter Speed
- PAL: 1/3 s–1/100000 s / NTSC: 1/4 s–1/100000 s
- Min. Illumination
- 0.001 [email protected] (Color, 30 IRE) / 0.0001 [email protected] (B/W, 30 IRE) / 0 lux (Illuminator on)
- S/N Ratio
- >65 dB
- Illumination Distance
- IR: 40 m / Warm light: 40 m
- Illuminator On/Off Control
- Auto; manual
- Illuminator Number
- 2 (IR light) / 2 (Warm light)
- Lens Type
- Fixed-focal
- Mount Type
- M12
- Focal Length
- 2.8 mm
- Max. Aperture
- F1.0
- Field of View
- 2.8 mm: H: 111°; V: 57°; D: 131°
- Iris Control
- Fixed
- Close Focus Distance
- 2.8 mm: 1.5 m
