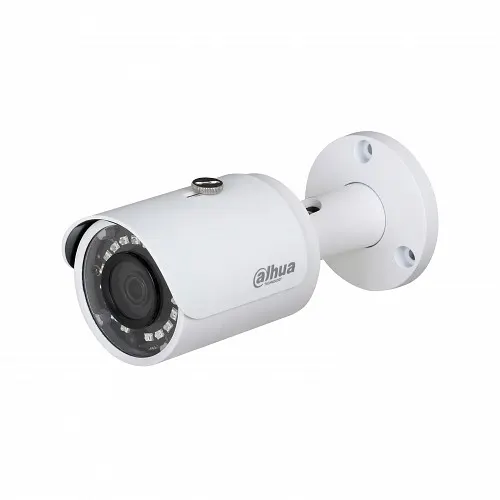

Dahua IP 2.0MP Bullet 2.8mm HFW1230S-S5

Dahua IP 2.0MP Bullet 2.8mm HFW1230S-S5

• 1/2.7” 2Megapixel progressive CMOS
• H.265& H.264 dual-stream encoding
• 25/30fps@1080P(1920×1080)
• DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• 2.8mm fixed lens
• Max IR LEDs Length 30m
• IP67, PoE

Camera

• Image Sensor : 1/2.7” 2Megapixel progresive CMOS
• Effective Pixels : 1920(H) x1080(V)
• RAM/ROM : 64MB/16MB
• Scanning System : Progressive
• Electronic Shutter Speed : Auto/Manual, 1/3~1/100000s
• Minimum Illumination : 0.001Lux/F2.0
• IR Distance : Distance up to 30m
• IR On/Off Control : Auto/ Manual
• IR LEDs : 18

Lens

• Lens Type : Fixed
• Mount Type : M12
• Focal Length : 2.8 mm
• Max. Aperture : F2.0/F2.0
• Angle of View : H:105°,V:57°,D :125°
• Focus Control : Fixed
• Close Focus Distance : 0.5m

Video

• Compression : H.265/H.264H/MJPEG(Sub Stream)
• Smart Codec : Support H.265+/H.264+
• Streaming Capability : 2 Streams
• Resolution : 1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240)
• Frame Rate : Main Stream: 1080P(1 ~ 25/30fps) / Sub Stream: D1(1 ~ 25/30fps)
• Bit Rate Control : CBR/VBR
• Bit Rate : H.265: 12K ~ 6400Kbps / H.264: 32K ~ 10240Kbps
• Day/Night : Auto(ICR) / Color / B/W
• BLC Mode : BLC / HLC / DWDR
• White Balance : Auto/Natural/Street Lamp/Outdoor/Manual
• Gain Control : Auto/Manual
• Noise Reduction : 3D DNR
• Motion Detection : Off / On (4 Zone, Rectangle)
• Region of Interest : Off / On (4 Zone)
• Electronic Image : Support
• Smart IR : Support
• Digital Zoom : 16x
• Flip : 0°/90°/180°/270°
• Mirror : Off / On
• Privacy Masking : Off / On (4 Area, Rectangle)

Audio

• Compression : N/A

Network

• Ethernet : RJ-45 (10/100Base-T)
• Protocol : HTTP;HTTPs;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPoE;IPv4/v6;QoS;UPnP;NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;TLS
• Interoperability : ONVIF Profile S&G, API
• Streaming Method : Unicast / Multicast
• Max. User Access : 10 Users / 20 Users
• Edge Storage : FTP,Dahua Cloud
• Web Viewer : IE, Chrome, Firefox, Safari
• Management Software : Smart PSS, DSS, DMSS
• Smart Phone : IOS, Android

Certifications

• CE-LVD: EN60950-1
• CE-EMC: Electromagnetic Compatibility Directive
• 2014/30/EU
• FCC: 47 CFR FCC Part 15, Subpart B

Electrical

• Power Supply : DC12V, PoE (802.3af)(Class 0)
• Power Consumption : <5.4W

Environmental

• Operating Conditions : -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
• Strorage Conditions : -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
• Ingress Protection : IP67
• Vandal Resistance : N/A

Construction

• Casing : Metal+Plastic
• Dimensions : Φ70mm×164.7mm(2.76''x6.49'')
• Net Weight : 0.39Kg
• Gross Weight : 0.50Kg
