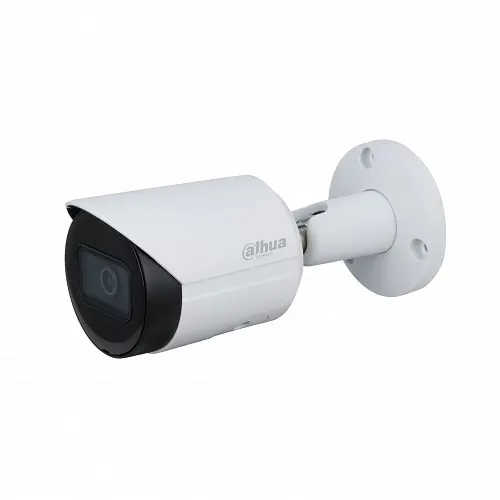

Dahua IP 2.0MP WDR Bullet 2.8mm Starlight HFW2231S

Dahua IP 2.0MP WDR Bullet 2.8mm Starlight HFW2231S

2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition

• Outputs max. 2MP (1920 × 1080) @25/30 fps
• H.265 codec, high compression rate, ultra-low bit rate
• Built-in IR LED, max. IR distance: 30 m
• ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent detection: Intrusion, tripwire
• Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict,  illegal access, voltage detection
• Supports max. 256 GB Micro SD card
• 12V DC/PoE power support
• IP67 protection

Camera

• Image Sensor : 1/2.8” 2Megapixel progresive CMOS
• Effective Pixels : 1920(H) x1080(V)
• RAM/ROM : 128MB/128MB
• Scanning System : Progressive
• Electronic Shutter Speed : Auto/Manual, 1/3~1/100000s
• Minimum Illumination : 0.002 Lux @F1.6
• IR Distance : 30m(98.4ft)
• IR On/Off Control : Auto/ Manual
• IR LEDs : 1

Lens

• Lens Type : Fixed
• Mount Type : M12
• Focal Length : 2.8 mm
• Max. Aperture : F1.6/F1.6
• Angle of View : H:106°,V:56°,D:126°
• Close Focus Distance : 0.6m(0.9m)

Intelligence

• Event Trigger : Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly
• IVS : Tripwire, Intrusion

Video

• Compression : H.265; H.264; H.264B; MJPEG
• Smart Codec : Yes
• Streaming Capability : 2 Streams
• Resolution : 1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240)
• Frame Rate : Main Stream: 1080P(1 ~ 25/30fps) / Sub Stream: D1(1 ~ 25/30fps)
• Bit Rate Control : CBR/VBR
• Bit Rate : H.265: 12K ~ 6400Kbps / H.264: 32K ~ 10240Kbps
• Day/Night : Auto(ICR) / Color / B/W
• BLC Mode : BLC / HLC / DWDR
• White Balance : Auto/Natural/Street Lamp/Outdoor/Manual
• Gain Control : Auto/Manual
• Noise Reduction : 3D DNR
• Motion Detection : Off / On (4 Zone, Rectangle)
• Region of Interest : Off / On (4 Zone)
• Electronic Image : Support
• Smart IR : Yes
• Flip : 0°/90°/180°/270°
• Mirror : Off / On
• Privacy Masking : Off / On (4 Area, Rectangle)

Network

• Ethernet : RJ-45 (10/100Base-T)
• Protocol : HTTP;HTTPs;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPoE;IPv4/v6;QoS;UPnP;NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;TLS
• Interoperability : ONVIF Profile S&G, API
• Streaming Method : Unicast / Multicast
• Max. User Access : 10 Users / 20 Users
• Edge Storage : NAS / Local PC for instant recording
• Web Viewer : IE, Chrome, Firefox, Safari
• Management Software : Smart PSS, DSS, DMSS
• Smart Phone : IOS, Android

Certifications

• CE-LVD: EN60950-1
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
• FCC: 47 CFR FCC Part 15, Subpart B
• UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

• Power Supply : DC12V, PoE (802.3af)(Class 0)
• Power Consumption : <4.9W

Environmental

• Operating Conditions : -40° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
• Strorage Conditions : -40° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
• Ingress Protection : IP67

Construction

• Casing : Metal
• Dimensions : 166.2 mm × Φ70 mm (6.5" × Φ2.8")
• Net Weight : 0.48Kg
• Gross Weight : 0.57Kg
