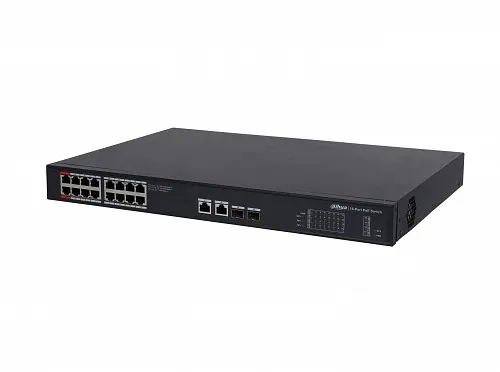

Dahua PoE Switch 16ports 240W PFS3220-16GT-240

Dahua PoE Switch 16ports 240W PFS3220-16GT-240

• Intelligent PoE
• Red Port Supports BT 90W
• All-giga Ports
• Smooth Transmission
• Wide Working Temperature: –10 to 55°C (14°F to 131°F)
• Plug and Play

Performance

• Layer 2
• Managed No
• Switching Capacity 52 Gbps
• Packet Forwarding Rate 29.76 Mpps
• Packet Buffer Memory 4 Mbit
• MAC Table Size 8K
• Standards Compliance IEEE802.3, IEEE802.3u, IEEE802.3x
• IEEE802.3ab, IEEE802.3z

Hardware Feature

• Standard Power Supply Yes
• PoE Yes
• Ethernet Port 16
• Optical Port 2
• Ethernet Port Rate 1 Gbps
• Optical Port Rate 1 Gbps
• Number of Bussiness Card Slots
• Port 1–16: 16 × RJ45 10/100/1000 M (PoE)
• Port 17–18: 2 × RJ45 10/100/1000 M (uplink)
• Port 19–20: 2 × SFP 1000 M (uplink)
• Power Supply 100V AC–240V AC
• Operating Temperature –10°C to 55°C (14°F to 131°F)
• Operating Humidity 10%–90%
• Storage Humidity 5%–95%
• Power Consumptio Idling: 7W Full load: 240W

PoE

• PoE Standard IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt
• PoE Budget Port 1–2≤90W, Port 3–16≤30W, total≤240W
• PoE Pin Assignment PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

General

• ESD Air discharge: 8kV Contact discharge: 6kV
• Thunderproof Common mode: 4kV Differential mode: 2kV
• Dimensions 440 mm × 300 mm × 44 mm (17.32" × 11.81" × 1.73")
• Packaging Dimensions 527 mm × 412 mm × 110 mm (20.75" × 16.22" × 4.33")
