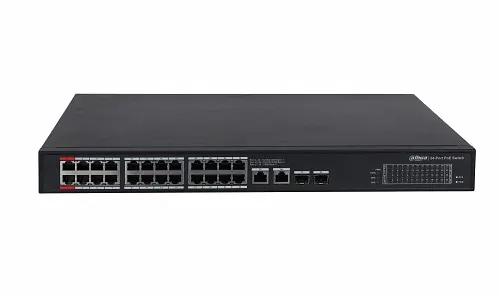

Dahua PoE Switch 24ports 360W PFS3228-24GT-360

Dahua PoE Switch 24ports 360W PFS3228-24GT-360

• Intelligent PoE
• Red Port Supports BT 90W
• All-giga Ports
• Smooth Transmission
• Wide Working Temperature: –10°C to 55°C (14°F to 131°F)
• Plug and Play

Certification

• Layer : Layer 2
• Managed : No
• Switching Capacity : 52 Gbps
• Packet Forwarding Rate : 38.688 Mpps
• Packet Buffer Memory : 4 Mbit
• MAC Table Size : 8K
• Standards Compliance : IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z

Hardware Feature

• Standard Power Supply : Yes
• PoE : Yes
• Ethernet Port : 24
• Optical Port : 2
• Ethernet Port Rate : 1 Gbps
• Optical Port Rate : 1 Gbps
• Number of Bussiness Card Slots : Port 1–24: 24 × RJ45 10/100/1000 M (PoE) / Port 25–26: 2 × RJ45 10/100/1000 M (uplink) / Port 27–28: 2 × SFP 1000 M (uplink)
• Power Supply : 100V AC–240V AC
• Operating Temperature : –10°C to 55°C (14°F to 131°F)
• Operating Humidity : 10%–90%
• Storage Humidity : 5%–95%
• Power Consumption : Idling: 8W / Full load: 360W

PoE

• PoE Standard : IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt
• PoE Budget : Port 1–2≤90W, Port 3–24≤30W, total≤360W
• PoE Pin Assignment : PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

General

• ESD : Air discharge: 8kV / Contact discharge: 6kV
• Thunderproof : Common mode: 4kV / Differential mode: 2kV
• Dimensions : 440 mm × 300 mm × 44 mm
• Packaging Dimensions : 527 mm × 412 mm × 110 mm
