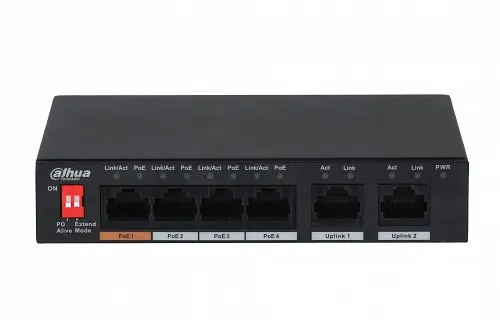

Dahua PoE Switch 4port +2UP 60W PFS3006-4ET-60 V2

Dahua PoE Switch 4port +2UP 60W PFS3006-4ET-60 V2

• Layer two commercial switch
• Supports IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3x standards
• MDI/MDIX self-adaptation
• RJ-45 port supports 10/100 Mbps self-adaptation, and confirms to 802.3at, and 802.3af power supply standards
• Port 1 supports Hi-PoE 60W power supply
• 250 m PoE power supply
• Wall mounting and mechanical anti-thef
• 53V DC power supply
• Supports PoE watchdog

Hardware

• Ethernet Port : 4
• Optical Port : 0
• Ethernet Port Rate : 100 Mbps
• Number of Business Card Slots : Port 1–4 : 4 × RJ-45 10/100 M (PoE) / Port 5–6 : 2 × RJ-45 10/100 M (uplink)
• Power Supply :53V DC
• Operating Temperature : –10°C to +55°C
• Operating Humidity : 5%–95%
• Storage Temperature : –20°C to +70°C
• Storage Humidity : 5%–95%
• Power Consumption : Idling: 1.5W
• Full load: 60W

Performance

• Switching Capacity : 1.80 Gbps
• Packet Forwarding Rate : 0.89 Mpps
• Packet Buffer Size : 1 Mbit
• MAC Table Size : 2K
• Communication Standard : IEEE802.3, IEEE802.3u, IEEE802.3x

PoE

• PoE Standard : IEEE802.3af/IEEE802.3at/Hi-PoE
• PoE Power : 60W
• PoE Power Consumption Management : Yes
• PoE Pin Assignment : PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
• Far Distance Mode : 250 m @10 Mbps

General

• ESD : Air discharge: 8kV / Contact discharge: 6kV
• Thunderproof : Common mode: 2kV / Differential mode: 1kV
• Net Weight : 0.3 kg
• Gross Weight : 0.9 kg
• Product Dimensions : 130 mm × 85 mm × 26 mm
• Packaging Dimensions : 267 mm × 239 mm × 77 mm
