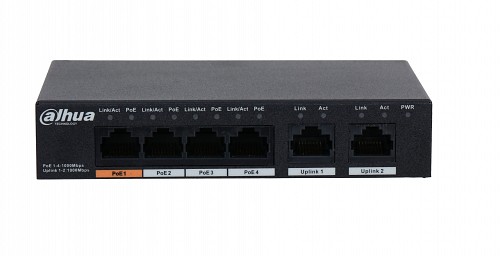

Dahua PoE Switch 4port Gig +2UP 60W PFS3006-4GT-60 V2
- Intelligent PoE
- Hi-PoE 60W (orange port)
- Long distance PoE ( up to 250m )
- PoE watchdog ( It enables the switch to automatically detect port status and restart failed ports to recover connection in case of IPC connection exception)
- All-giga ports
- Wide working temperature
Hardware Feature
- Ethernet Port : Port1-4: 4 × RJ-45 10/100/1000M (PoE) / Port5-6: 2 × RJ-45 10/100/1000M (uplink)
- PoE Power Consumption : Port1≤ 60 W (Hi-PoE) / Port2-4 ≤30 W / Total≤60 W
- Power Consumption : Idling: 0.96 W / Full load: 60 W
- Standard : IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
PoE
- PoE Protocol : IEEE802.3af/ IEEE802.3at/ Hi-PoE
- Power Supply Pin : 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
- Long Distance : 250 m long distance PoE transmission
- PoE Power Management : Yes
- PoE Watchdog : Yes
Performance
- Switching Capacity : 14 Gbps
- Packet Forwarding Rate : 8.928 Mbps
- Packet Buffer Memory : 1 Mbit
- MAC Address Table : 2 K
- Flow Control : Enable by default
- Working Temperature : –10 °C to 55 °C (+14°F to +131°F)
- Application Humidity : 5%–95% (RH)
General
- Power Input : 48 V - 57 V DC
- Lighting Protection : Common mode: 4 kV / Differential mode: 2 kV
- ESD Protection : Air discharge: 8 kV / Contact discharge: 6 kV
- Wall-mount Installation : Yes
- Anti-theft Lock Hole : Yes
- Weight : 0.30 kg
- Dimension : 130 mm × 85 mm × 26 mm
