Dahua

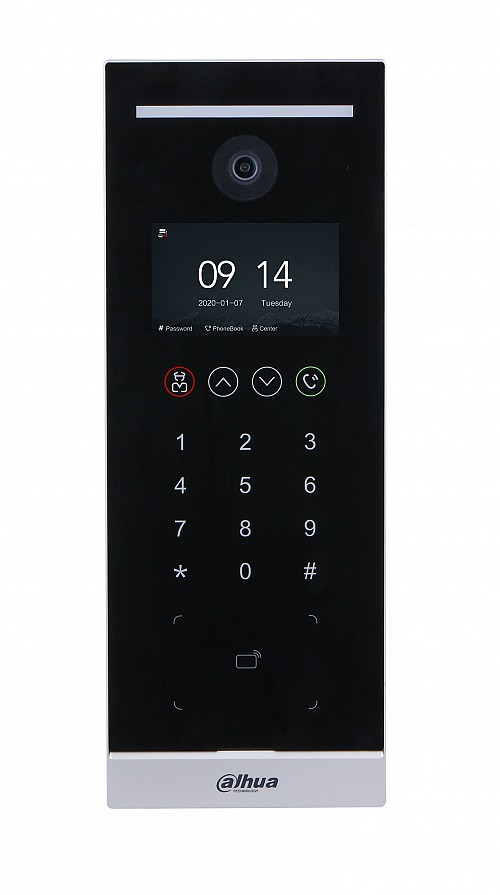

Dahua VD IP Doorphone Apartment Camera VTO6521H-S2
Order code: 28298
- Main Processor:Embedded Processor
- Operating System:Embedded Linux operating system
- Button Type:Touch button
- Display:4.3 inch IPS screen
- Screen Resolution:800×480
- All specifications
€694.00incl. VAT
Out of stock
Description
- 4.3" LCD with a resolution of 800 × 480.
- 2 MP HD camera.
- Supports smart illumination, which can reduce light pollution.
- Supports 40,000 users and 20,000 cards.
- Offers multiple types of alarms such as duress, tamper, emergency and alarms from door detectors.
- Supports leaving audio and video messages when no one responds through the indoor monitor. (An SD card in VTH is required).
- Supports multiple unlock methods including password, IC card, QR code (supported by DSS) and unlocks remotely.
- Unlocks the door through the indoor monitor, management center and app.
- Provides 12 VDC, 500 mA power for the extension module or card reader.
- IP65 rated. (Silicone sealant is required for the shell, see the quick start guide.)
- Standard PoE power supply. (If the VTO device with 12 V power output needs to charge the load, it should be connected to a PSE switch that complies with the 802.3.at standard.)
Specifications
- Main Processor
- Embedded Processor
- Operating System
- Embedded Linux operating system
- Button Type
- Touch button
- Display
- 4.3 inch IPS screen
- Screen Resolution
- 800×480
- Camera
- 1/2.7" 2MP CMOS high definition, low illumination, white illuminator and IR illuminator
- Field of View
- H: 95°; V: 50°; D: 110°°
- Aperture
- F2.0
- WDR
- 120dB
- Noise Reduction
- 3D noise reduction
- Video Compression
- H.264 / H.265
- Video Resolution
- Main Stream: 720p, sub stream: 1080P
- Frame Rate
- Main stream: 720P/D1/WVGA; / Sub stream: 1080P/720P/D1/WVGA/CIF/QVGA
- Video Bit Rate
- 1,024 kbps–8,192 kbps
- Light Compensation
- Auto white light Auto IR light
- Day/Night
- ICR auto switch
- Audio Compression
- G.711u
- Audio Input
- 1
- Audio Output
- Built-in speaker
- Audio Mode
- Full duplex communication
- Audio Enhancement
- Echo suppression and cancellation/digital noise reduction
- Audio Bit Rate
- 16KHz, 16Bit
- Communication Mode
- Full digital
- Unlock Mode
- Card/Remote/Password
- Card Type
- IC card
- Motion Detection
- Video motion detection
- Auto Snapshot
- Yes
- Leave Videos or Text Messages
- Yes
- Web Configuration
- Yes
- Card Reading Distance
- 1cm–5cm
- Issue Card Locally
- Yes
- Casing Material
- PC+ABS
- Card
- 20,000
- RS-485
- 1
- Wiegand
- 1 input,1 output
- Electric lock
- 1
- Alarm Input
- 2
- Alarm Output
- 2
- Power Output
- 1 x12V/100mA
- Exit Button
- 1
- Door Status Detection
- 1
- Lock Control
- 1, NO by default
- Network
- 1 RJ-45 10Mbps/100Mbps self-adaptive
- Tamper
- Yes
- Unlock Password Mode
- User password/public password/duress password
- Color
- Silver
- Power Supply Mode
- DC 12V2A / Standard PoE
- Power Adapter
- Optional
- Installation
- Surface mount and Flush mount
- Certification
- CE
- Accessory
- Optional
- Product Dimensions
- 388.5 mm×145.5 mm×43.5 mm
- Protection Grade
- IP65 (silicone sealant is needed, see the quick start guide)
- Operating Temperature
- -30°C to +60°C
- Operating Humidity
- 0%RH–90%RH (non-condensing)
- Operating Altitude
- 0 m–3,000 m
- Power consumption
- ≤5W (standby), ≤18W (working)
- Gross weight
- 1.48 kg
