Dahua

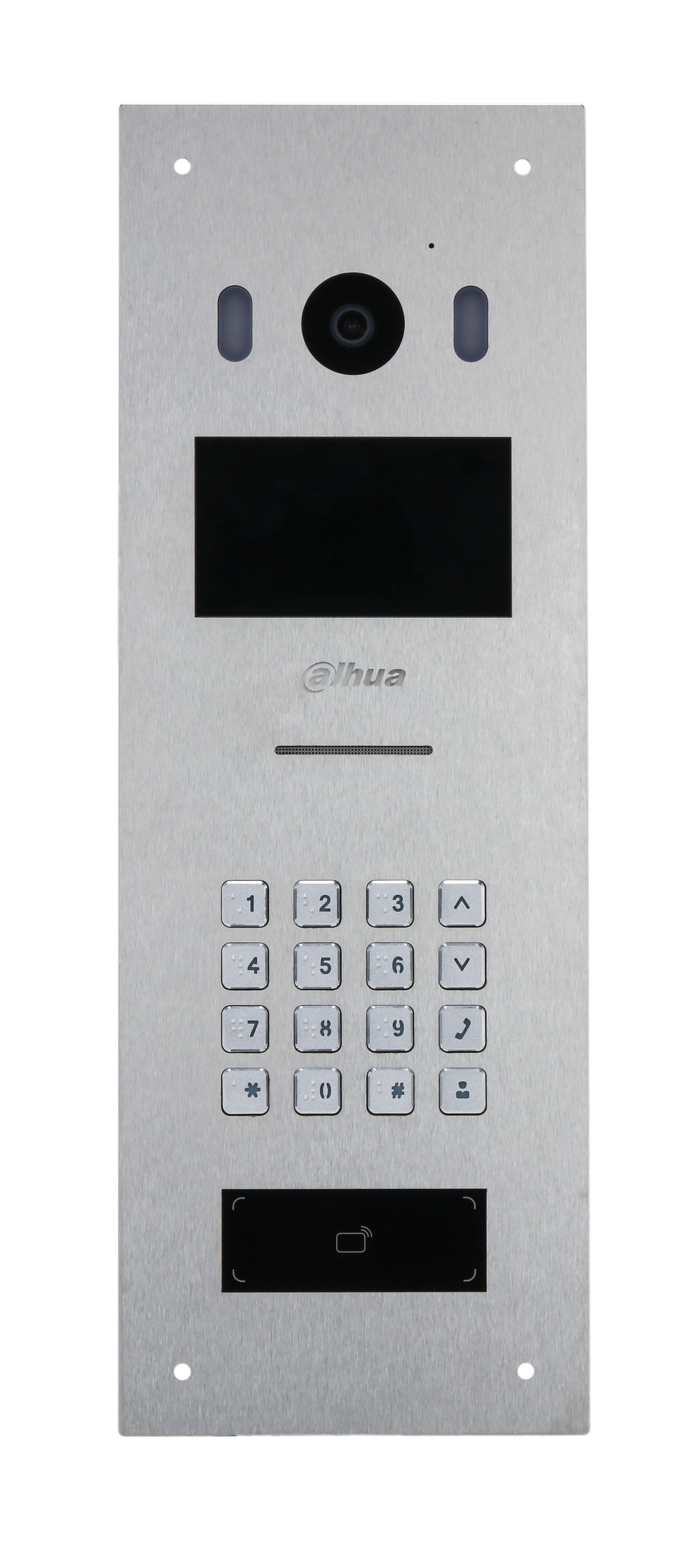

Dahua VD IP Doorphone Apartment Camera VTO6521K-S2
Order code: 28281
- Main Processor:Embedded Processor
- Operating System:Embedded Linux operating system
- Button Type:Mechanical
- Network Protocol:RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF
- Screen Type:Non-touchscreen
- All specifications
€895.00incl. VAT
Out of stock
Description
- 4.3" LCD with a resolution of 800 × 480.
- 2 MP HD camera.
- Supports smart illumination, which can reduce light pollution.
- Supports 40,000 users and 20,000 cards.
- Offers multiple types of alarms such as duress, tamper, emergency and alarms from door detectors.
- Supports leaving audio and video messages when no one responds through the indoor monitor. (An SD card in VTH is required).
- Supports multiple unlock methods including password, IC card, QR code (supported by DSS) and unlocks remotely.
- Unlocks the door through the indoor monitor, management center and app.
- Provides 12 VDC, 500 mA power for the extension module or card reader.
- IP65 rated. (Silicone sealant is required for the shell, see the quick start guide.)
- Standard PoE power supply. (If the VTO device with 12 V power output needs to charge the load, it should be connected to a PSE switch that complies with the 802.3.at standard.)
Specifications
- Main Processor
- Embedded Processor
- Operating System
- Embedded Linux operating system
- Button Type
- Mechanical
- Network Protocol
- RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF
- Screen Type
- Non-touchscreen
- Display
- 4.3 inch LCD
- Screen Resolution
- 800×480
- Camera
- 1/2.8" 2MP CMOS low-illumination HD color camera
- Field of View
- H: 95°; V: 50°; D: 110°
- WDR
- 120dB
- Noise Reduction
- 3D noise reduction
- Video Compression
- H.264, H.265
- Video Resolution
- Main stream: 720P/D1/WVGA; / Sub stream: 1080P/720P/D1/WVGA/CIF/QVGA
- Frame Rate
- 25 fps
- Video Bit Rate
- 1,024 kbps–8,192 kbps
- Light Compensation
- Auto white light
- Audio Compression
- G.711a; G.711u; PCM
- Audio Input
- 1
- Audio Output
- Built-in speaker
- Audio Mode
- 2-way voice communication
- Audio Enhancement
- Echo suppression and cancellation/digital noise reduction
- Audio Bit Rate
- 16KHz, 16Bit
- Communication Mode
- Full digital
- Unlock Mode
- Card; remote; password; QR code
- Card Type
- IC card
- Motion Detection
- Video motion detection
- Auto Snapshot
- Yes
- Leave Videos
- Yes
- Web Configuration
- Yes
- Card Reading Distance
- 1cm–3cm
- Issue Card Locally
- Yes
- Casing Material
- 316 stainless steel
- Card
- 10,000
- RS-485
- 1
- Wiegand
- 1 input,1 output
- Electric lock
- 1
- Alarm Input
- 1 (digital quantity)
- Alarm Output
- 1 (relay)
- Power Output
- 1 x12V/200mA
- Exit Button
- 1
- Door Status Detection
- 1
- Lock Control
- 1, normally open by default (can be expanded to 2 channels with RS-485)
- Network
- 1 RJ-45 10Mbps/100Mbps self-adaptive
- Tamper
- Yes
- Unlock Password Mode
- User password/public password/duress password
- Color
- Silver
- Power Supply Mode
- DC 12V2A / Standard PoE
- Power Adapter
- Optional
- Installation
- Surface mount and Flush mount
- Certification
- CE
- Accessory
- Optional: flush mount box, rain cover
- Product Dimensions
- 406 mm × 143 mm × 54.05 mm
- Protection Grade
- IP65 (silicone sealant is needed, see the quick start guide) / IK08
- Operating Temperature
- -30°C to +60°C
- Operating Humidity
- 0%RH–90%RH (non-condensing)
- Operating Altitude
- 0 m–3,000 m
- Power consumption
- ≤ 5 W (standby), ≤ 18 W (working)
- Gross weight
- 2.3 kg
