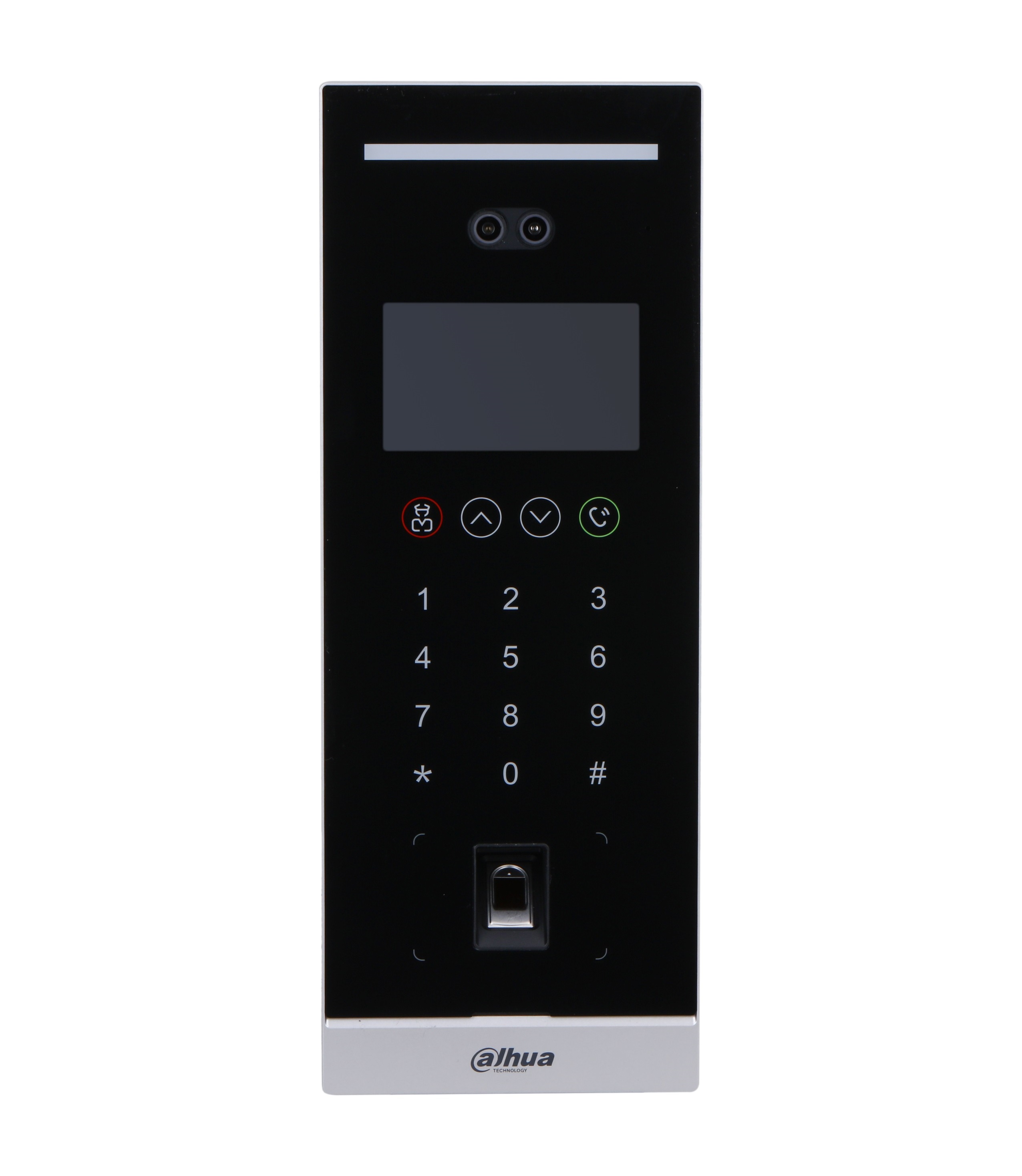

Dahua VD IP Doorphone Apartment Camera With Face Recognition VTO6541H-S2
Order code: 28740
- Main Processor:Embedded Processor
- Operating System:Embedded Linux OS
- Button Type:Touch button
- Interoperability:CGI; ONVIF
- Network Protocol:RTMP; HTTP/HTTPS; DNS; RTSP; SSH; ONVIF; SIP; RTP
- All specifications
€1,126.00incl. VAT
Out of stock
Description
- 4.3" LCD with a resolution of 800 × 480.
- 2 MP HD dual-lens camera.
- White light illuminators that help recognize the targets in darkness or low light environments.
- Supports 40,000 users, 20,000 faces, 20,000 cards, and 10,000 finger prints.
- Recognizes faces 0.3 to 1.5 m away (0.98 ft–4.92 ft) at an accuracy of 99.9%, and compares 1 face with N faces at the speed of 0.2 seconds/ person.
- Liveness detection is used to detect spoof attempt, such as using a photo or video to gain access.
- Offers multiple types of alarms such as duress, tamper, emergency and alarms from door detectors.
- Supports leaving audio and video messages when no one responds through the indoor monitor. (An SD card in VTH is required.)
- Supports multiple unlock methods including password, IC card, fingerprint, QR code (supported by DSS) and face, and unlocks remotely.
- Unlocks the door through the indoor monitor, management center and app.
- Provides 12 VDC, 500 mA power for the extension module or card reader.
- IP65 rated (Silicone sealant is required for the shell, see the quick start guide).
- Standard PoE power supply. If the VTO device with 12 V power output needs to charge the load, it should be connected to a PSE switch that complies with the 802.3.at standard.)
Specifications
- Main Processor
- Embedded Processor
- Operating System
- Embedded Linux OS
- Button Type
- Touch button
- Interoperability
- CGI; ONVIF
- Network Protocol
- RTMP; HTTP/HTTPS; DNS; RTSP; SSH; ONVIF; SIP; RTP
- Screen Type
- Non-touchscreen
- Display Screen
- 4.3-inch display screen
- Screen Resolution
- 800 (H) × 480 (V)
- Image Sensor
- 1/2.8" 2MP CMOS high-definition, low illumination, dual cameras
- Field of View
- H: 95°; V: 50°; D: 110°
- WDR
- 120 dB
- Noise Reduction
- 3D NR
- Video Compression
- H.264; H.265
- Video Resolution
- Main stream: 720P/D1/WVGA; Sub stream: 1080P/720P/D1/WVGA/CIF/QVGA
- Video Frame Rate
- 25 fps
- Video Bit Rate
- 1,024 kbps–8,192 kbps
- Light Compensation
- Auto white light
- Audio Compression
- G.711a; G.711u; PCM
- Audio Input
- 1 channel
- Audio Output
- Built-in speaker
- Audio Mode
- Two-way audio
- Audio Enhancement
- Echo suppression/digital noise reduction
- Audio Bit Rate
- 16 kHz, 16 bit
- Communication Mode
- Full digital
- Verification Method
- Fingerprint; Remote; Face recognition; Card; Password
- Auto Snapshot
- Yes
- Information Release
- Receive and view text information released by the management center
- Leave Videos
- Yes (SD card inserted in VTH is needed)
- Web Configuration
- Yes
- Auto Registration
- Yes
- Card Type
- IC card
- Card Reading Distance
- 0 cm–5 cm (IC card)
- Issue Card Locally
- Yes
- Face Recognition Height Range
- 1.1 m–2.2 m (3.61 ft–7.22 ft)
- Face Recognition Distance
- 0.3 m–2.0 m (0.98 ft–6.56 ft)
- Face Recognition Accuracy
- 99.9%
- Face Recognition Time
- 0.2 sec
- Fingerprint Sensor Type
- Capacitive
- Fingerprint Comparison Time
- ≤1.5 sec
- Fingerprint Recognition Time
- ≤1 sec
- Casing Material
- PC + ABS
- Card Capacity
- 20,000
- Face Image Capacity
- 20,000
- Fingerprint Capacity
- 10,000
- RS-485
- 1
- Wiegand
- 1 (can be set as input or output port)
- Alarm Input
- 2 channels
- Alarm Output
- 2 channels
- Power Output
- 1 port (12 V, 500 mA)
- Exit Button
- 1 channel
- Door Status Detection
- 1 channel
- Lock Control
- 1 channel, open by default
- Network Port
- 1 × 10 Mbps/100 Mbps Ethernet port
- Tamper alarm
- Yes
- Unlock Password Mode
- User; Public; Duress passwords
- Appearance Color
- Silver
- Power Supply
- 12 VDC, 2 A; Standard PoE
- Power Adapter
- Optional
- Installation
- Flush mount; Wall mount
- Certifications
- CE
- Accessory
- Power supply (optional); Flush mount box (optional)
- Product Dimensions
- 389 mm × 145 mm × 43 mm (15.31" × 5.71" × 1.69")
- Protection
- IP65 rated (Silicone sealant required. See quick start guide for details.)
- Operating Temperature
- –30 °C to +60 °C (–22 °F to +140 °F)
- Operating Humidity
- 0%–90% (RH), non-condensing
- Operating Altitude
- 0 m–3,000 m (0 ft–9842.52 ft)
- Power consumption
- ≤5 W (standby); ≤18 W (working)
- Gross weight
- 1.50 kg (3.31 lb)
