Dahua

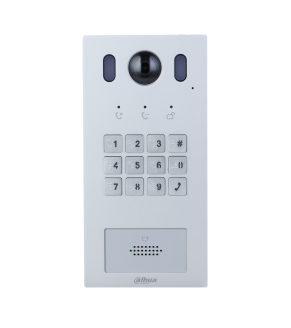

Dahua VD IP Doorphone Villa Camera VTO3222E-P
Order code: 27085
- Main Processor:Embedded Processor
- Operating System:Embedded Linux OS
- Button Type:Mechanical
- Number of Buttons:12
- Camera:1/2.9" 2 MP CMOS
- All specifications
€571.00incl. VAT
Out of stock
Description
- Highly durable and elegant, it is made of aluminum panel，and has a mechanical keypad.
- 2MP HD camera.
- Supports 5,000 users and 10,000 cards.
- Supports multiple unlock methods including password, IC card, and unlocks remotely.
- Connects card readers and controllers through Wiegand.
- Provides 12 VDC, 600 mA power.
- IP65 rated (silicone sealant is required for the shell, see the quick start guide).
- IK08 rated.
- Standard PoE power supply (if the VTO device with 12 V power output needs to charge the load, it should be connected to a PSE switch that complies with the 802.3.at standard).
Specifications
- Main Processor
- Embedded Processor
- Operating System
- Embedded Linux OS
- Button Type
- Mechanical
- Number of Buttons
- 12
- Camera
- 1/2.9" 2 MP CMOS
- Field of View
- H:140°,V:80°, D:160°
- WDR
- 120 dB
- Noise Reduction
- 3D NR
- Video Compression
- H264，H265
- Video Resolution
- Main stream: 720p,WVGA, D1, CIF : Sub stream: 1080p,WVGA, D1, QVGA, CIF
- Video Frame Rate
- 25 fps
- Light Compensation
- Auto white light
- Day/Night
- Color/B/W
- Audio Compression
- G.711a, G.711u, PCM
- Audio Input
- 1
- Audio Output
- Built-in speaker
- Audio Mode
- Two-way audio
- Audio Enhancement
- Echo suppression/digital noise reduction
- Audio Bit Rate
- 16 kHz, 16 bit
- Communication Mode
- Digital 2-wire
- Unlock Mode
- Card swiping;password;remote
- Card Type
- Mifare card
- Auto Snapshot
- Yes (SD card inserted in VTH or FTP server is configured for VTO)
- Leave Videos
- Yes (SD card is inserted in the indoor monitor or door station)
- Storage
- Supports Micro SD card (up to 256 GB)
- Web Configuration
- Yes
- Modulation Type
- AM
- Frequency Range
- 13.56 MHz
- Max. Transmission Power
- 42dBuA/m @10m
- Card Reading Distance
- 0 cm–3 cm (0"–1.18")
- Casing Material
- Aluminum
- Card Capacity
- 10000
- RS-485
- 1
- Wiegand
- 1
- Alarm Input
- 1
- Alarm Output
- 1
- Power Output
- 1 port,12 V/600 mA
- Door Bell
- 1
- Exit Button
- 1
- Lock Control
- 1
- Network Port
- 1 × RJ-45 port，10Mbps/100Mbps network port
- Tamper alarm
- Yes
- Appearance Color
- Silver
- Power Supply
- 48 VDC, 0.4 A, PoE (802.3af/at)
- Power Adapter
- Optional
- Installation
- Flush Mount;Surface Mount
- Certifications
- CE
- Protection
- IK08, IP65 (silicone sealant is needed, see the quick start guide)
- Operating Temperature
- –40 °C to +60 °C (–40 °F to +140°F)
- Operating Humidity
- 10%–90% (RH), non-condensing
- Operating Environment
- Outdoor
- Operating Altitude
- Beneath 3000 m (9842.52 ft)
- Power consumption
- ≤ 5 W (standby), ≤ 7 W (working)
- Gross weight
- 692 g (1.53 lb)
- Storage Temperature
- 0 °C to +40 °C (+32 °F to +104 °F)
- Storage Humidity
- 30%–75%(RH)
