Dahua VD IP Modular Doorphone Camera VTO4202F-P
Order code: 21283
- Main Processor:SoC processor
- Operating System:Embedded Linux operation system
- Network Protocol:IPv4, RTSP, RTP, TCP, UDP, SIP, P2P
- Camera:CMOS Low illumination 2MP HD colorful 160° fisheye camera
- Angle of View:H:160°, V:82°, D:180°
- All specifications
€242.00incl. VAT
Out of stock
Description

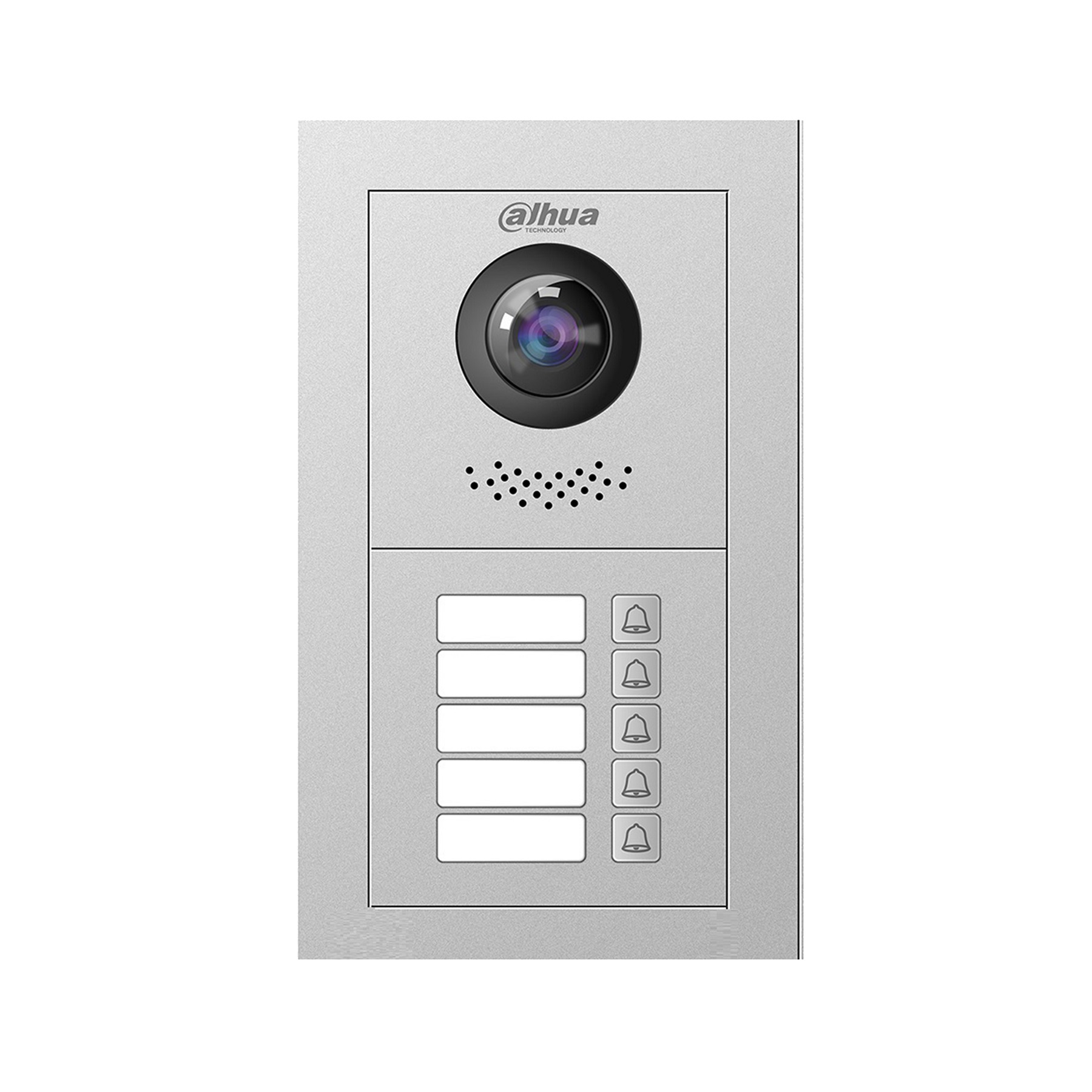

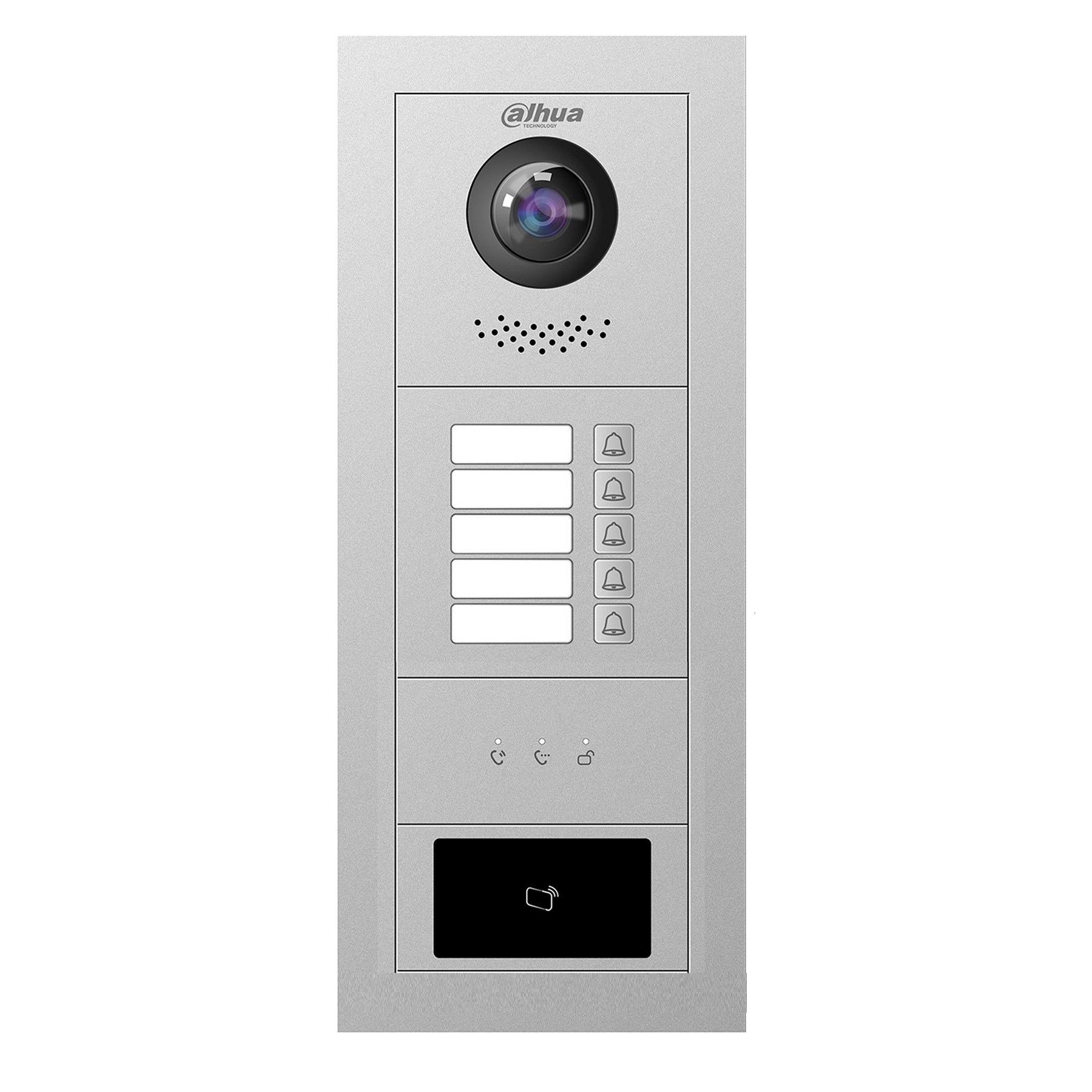

- Modules make the device with great expansibility
- Anodized front aluminum panel; IK07
- Supports voice and video communication

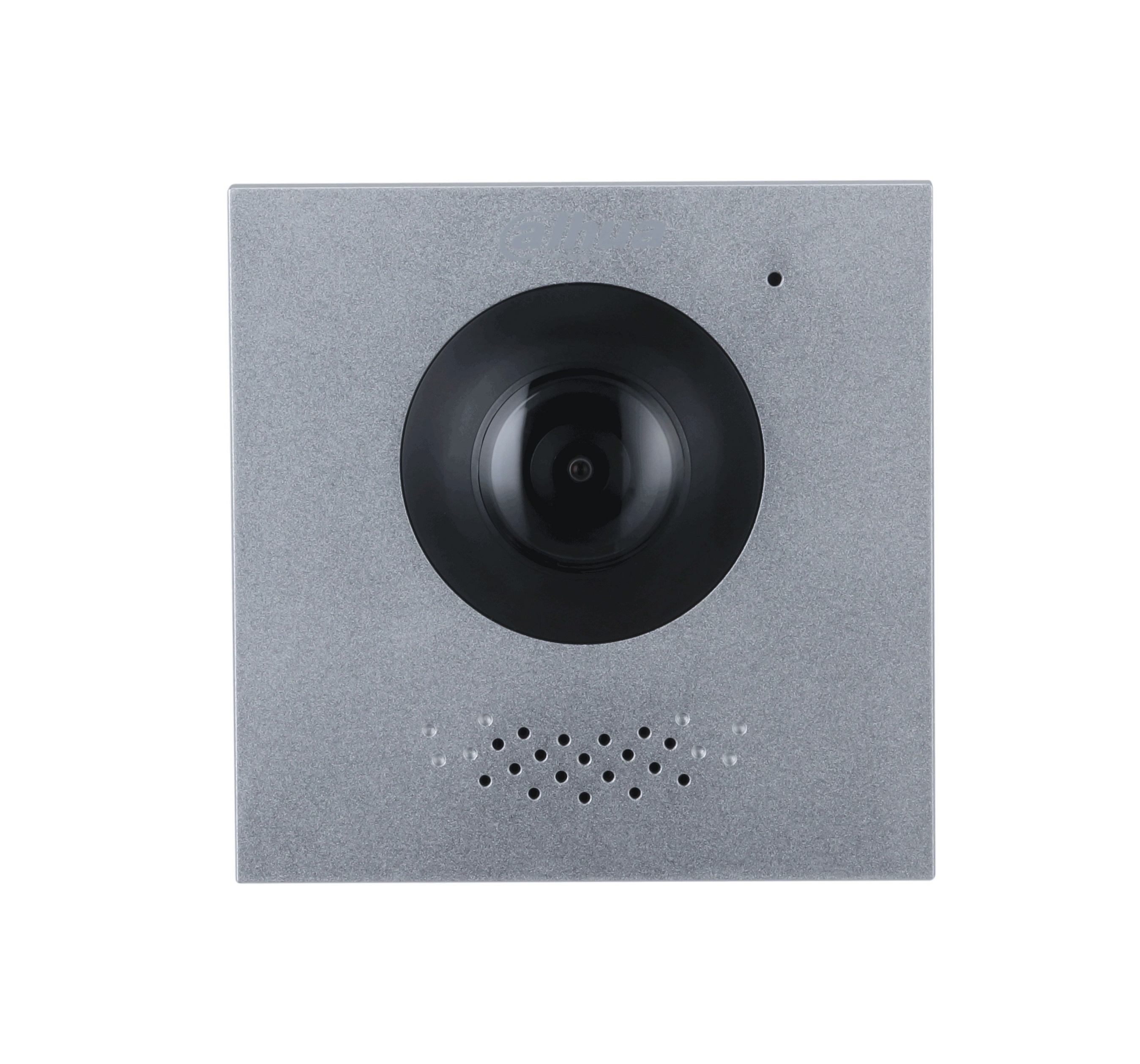

- 2 MP high definition fisheye camera with 160° view range
- Access control function; controls two locks
- Compatible with 2-wire interface and RJ45 interface
- Surface mount and flush mount
- IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)

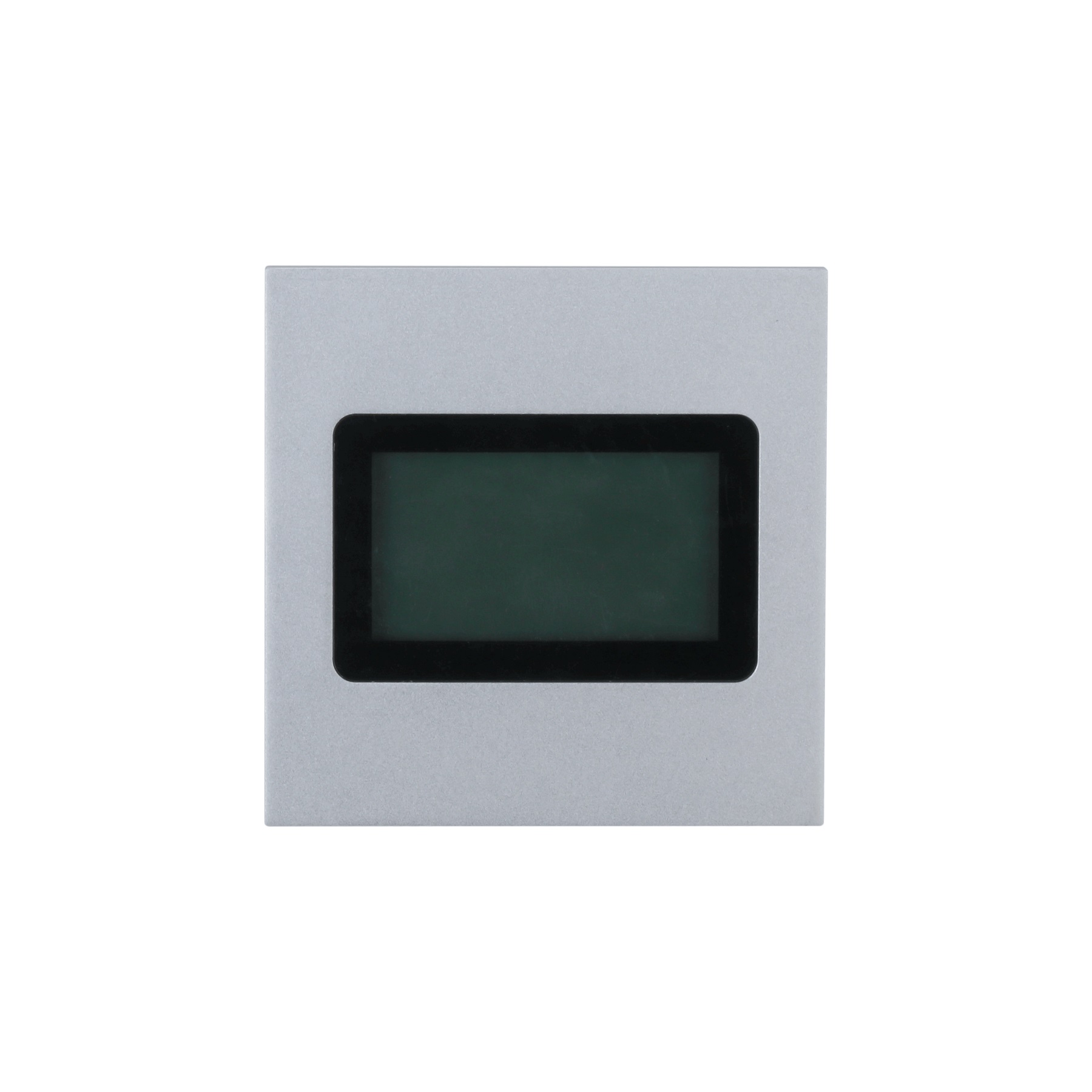

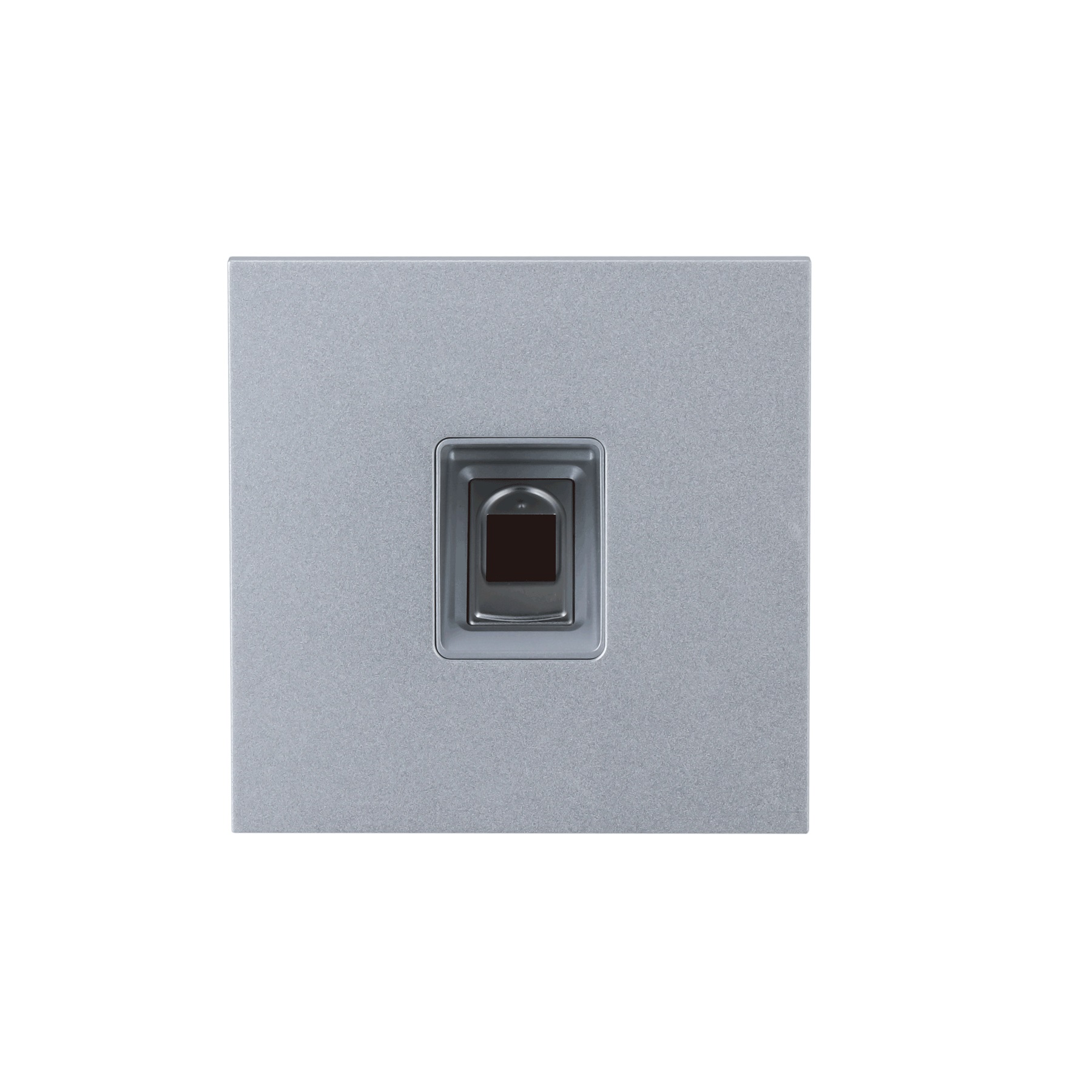

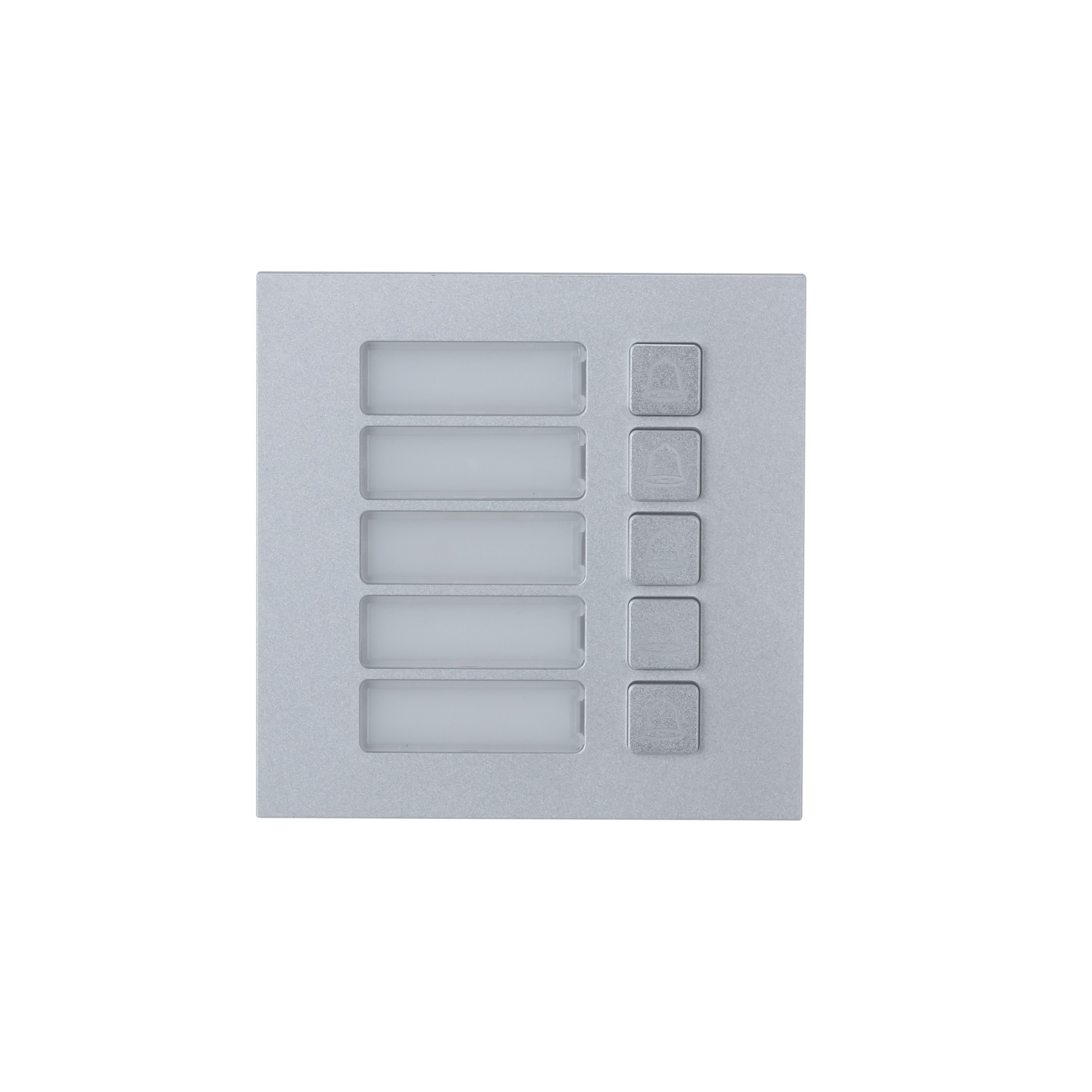

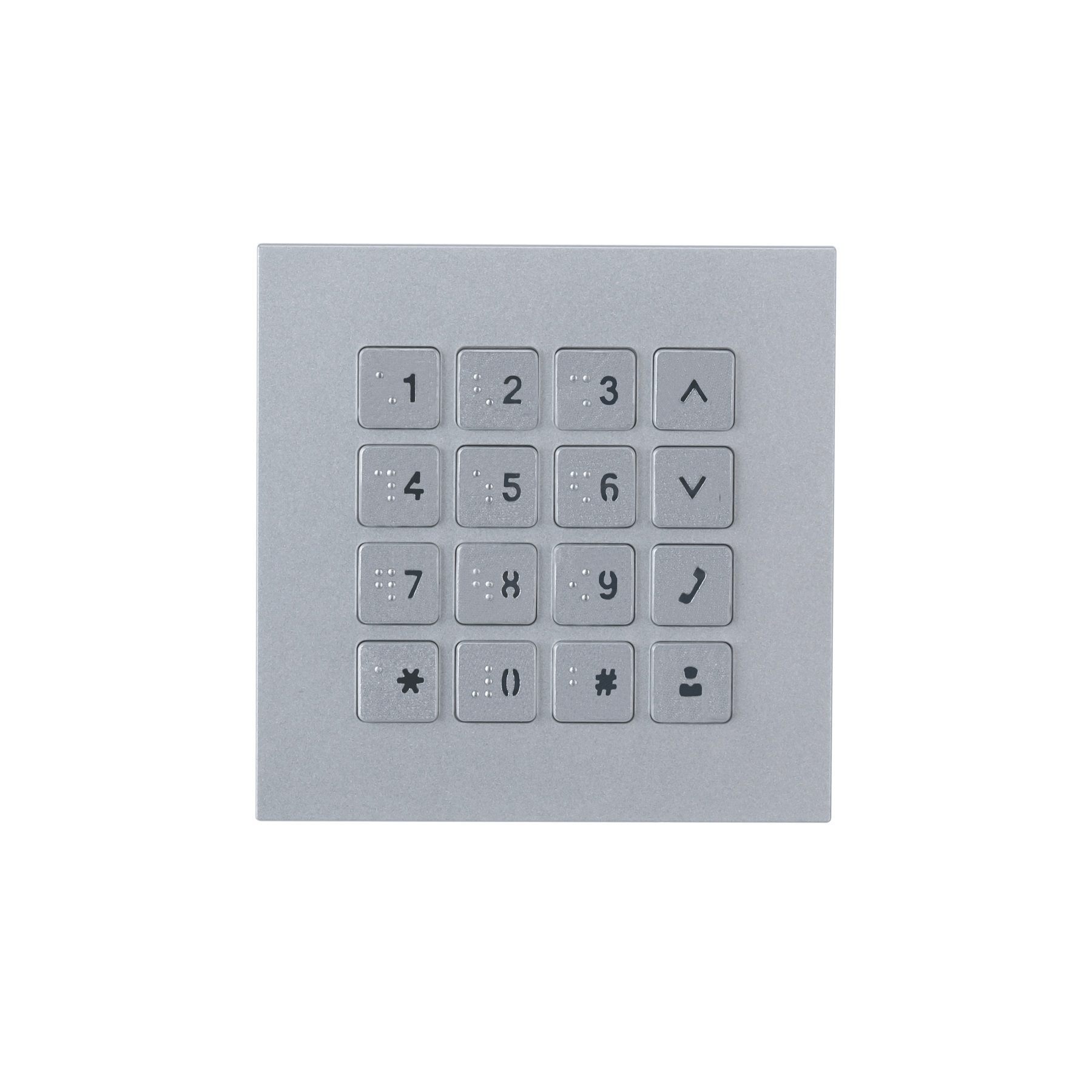

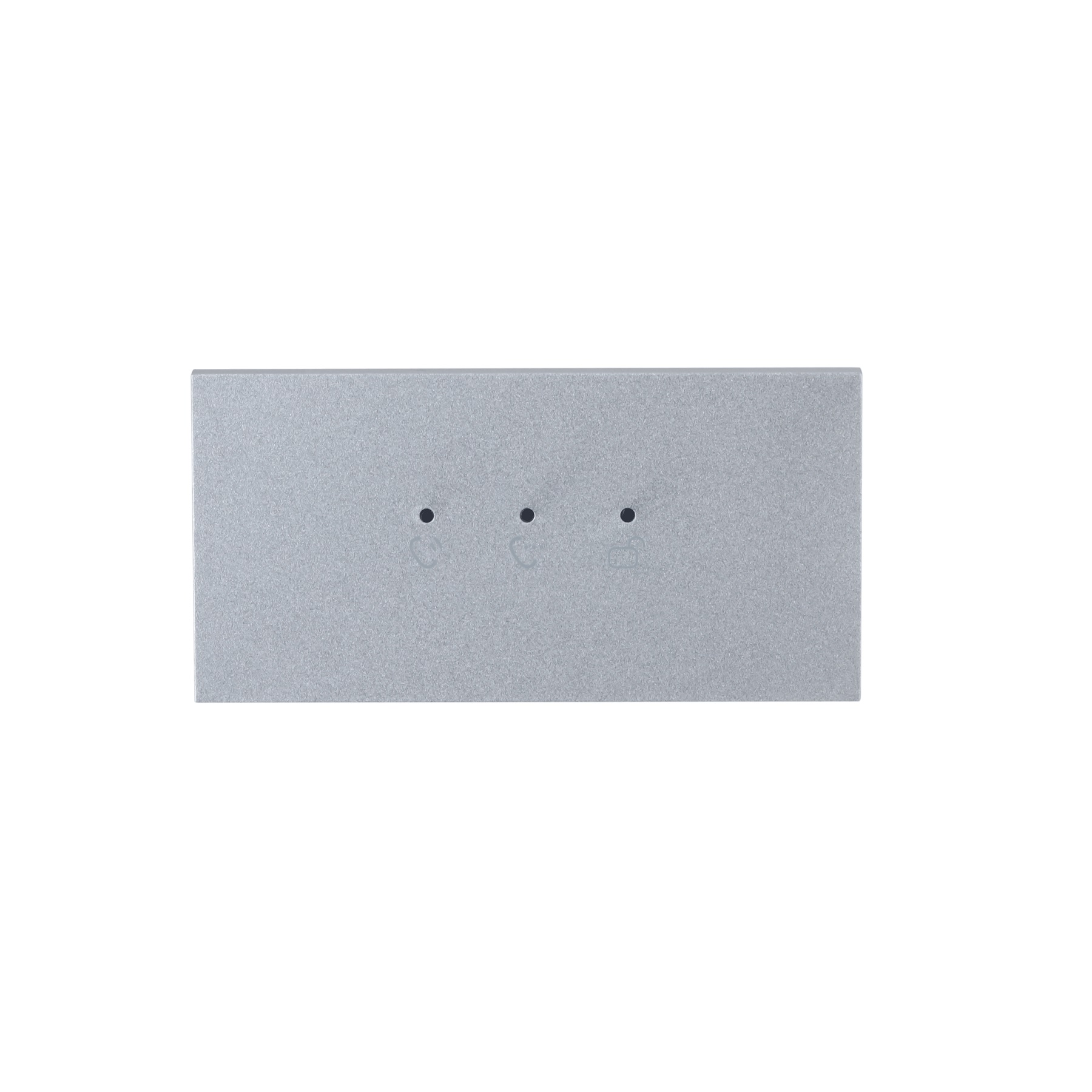

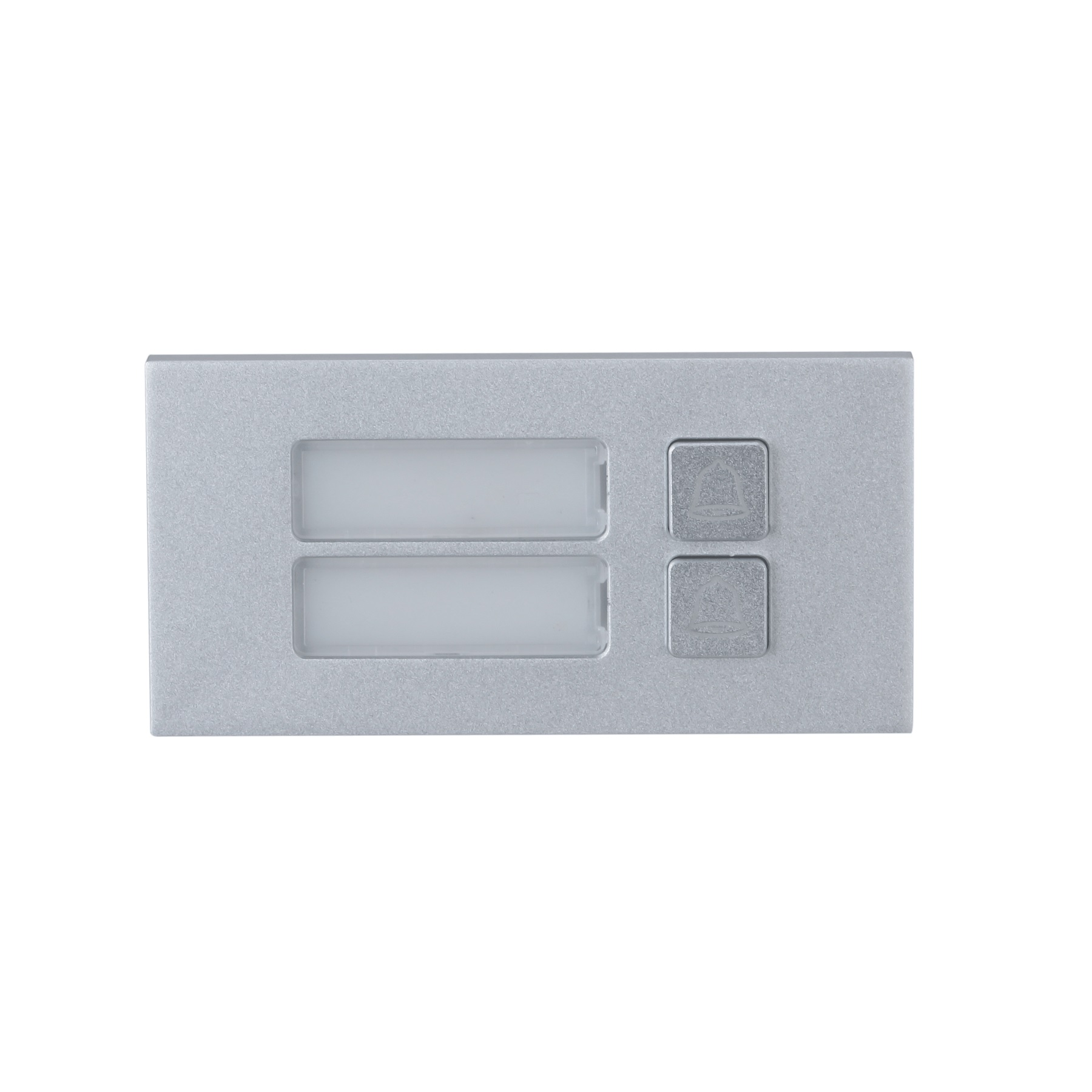

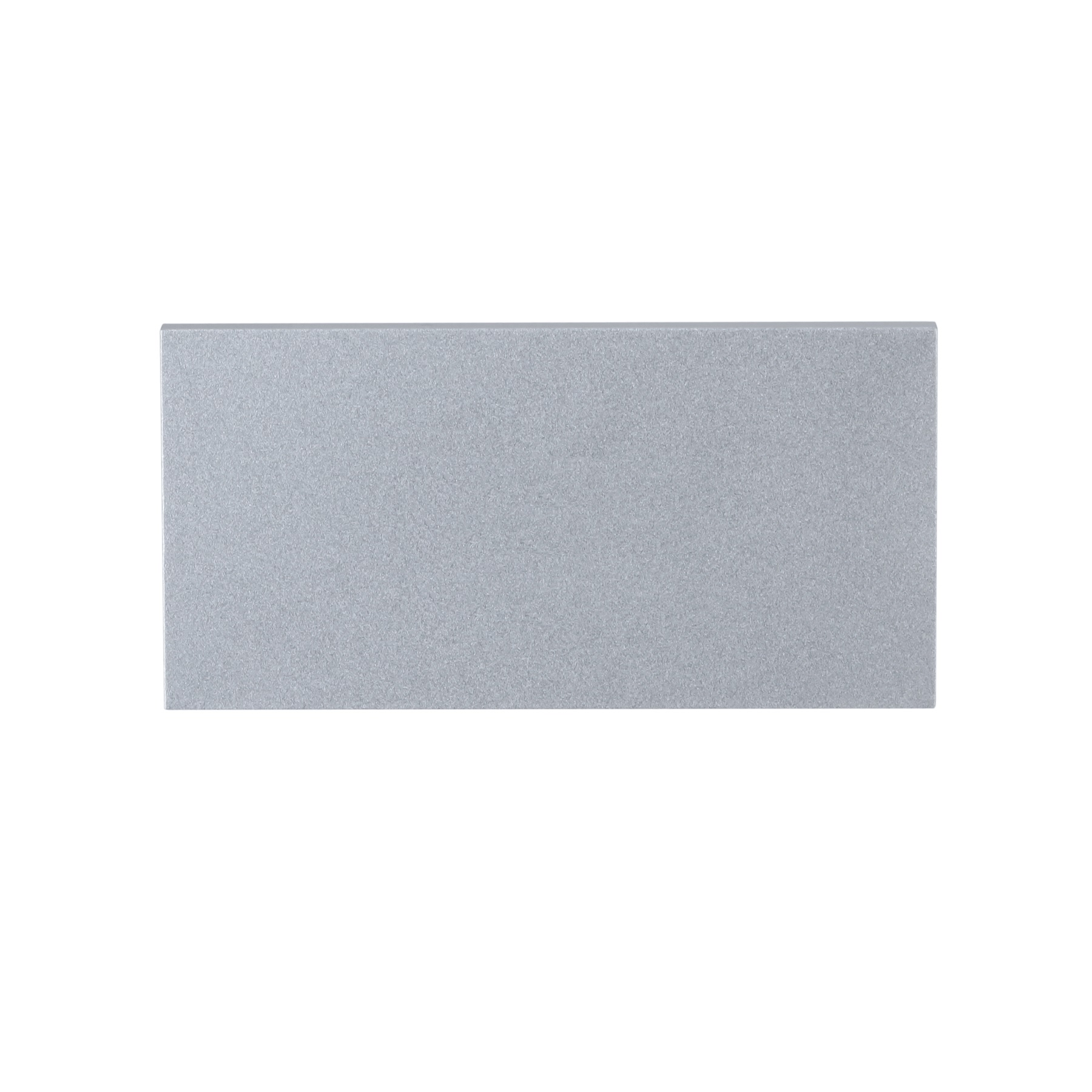

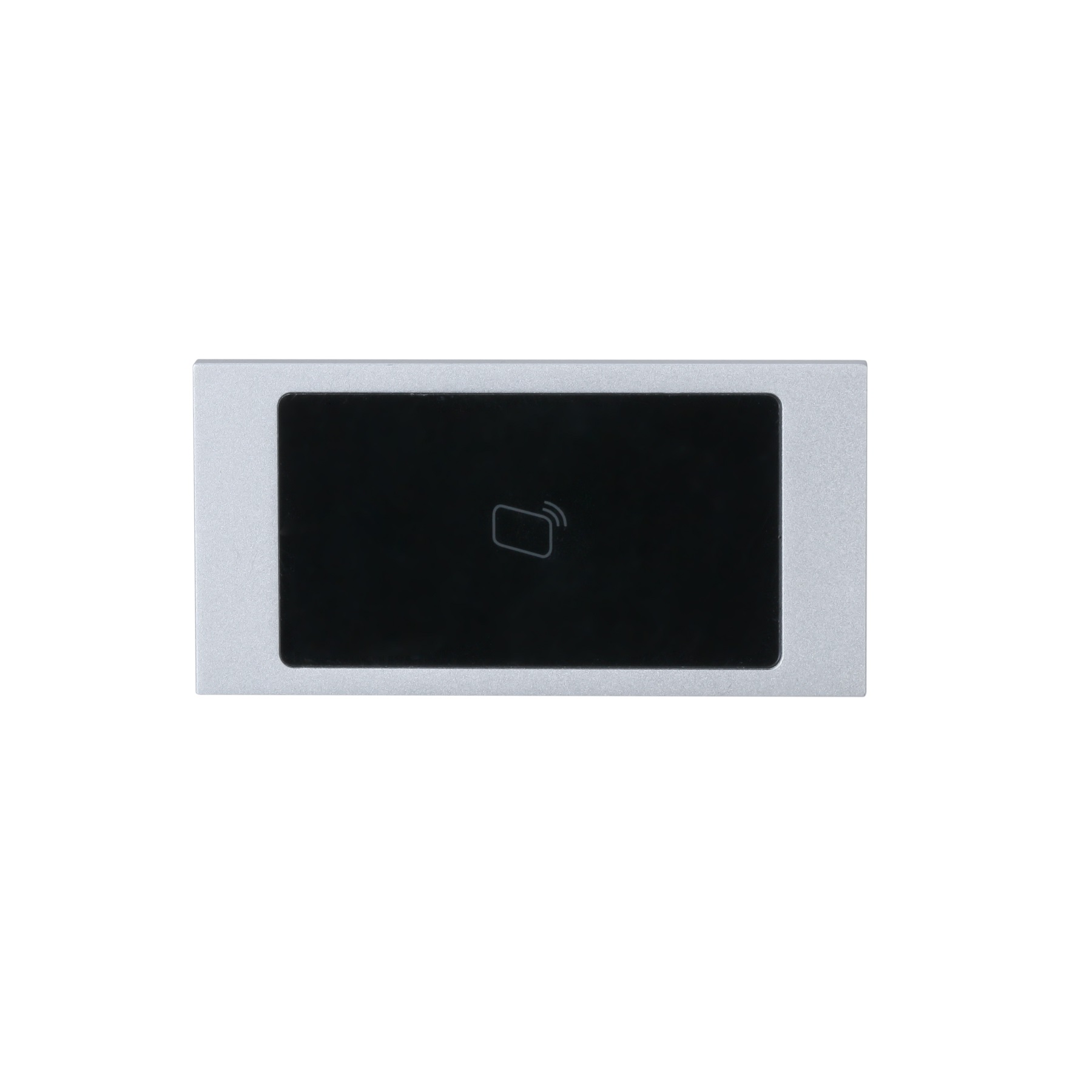

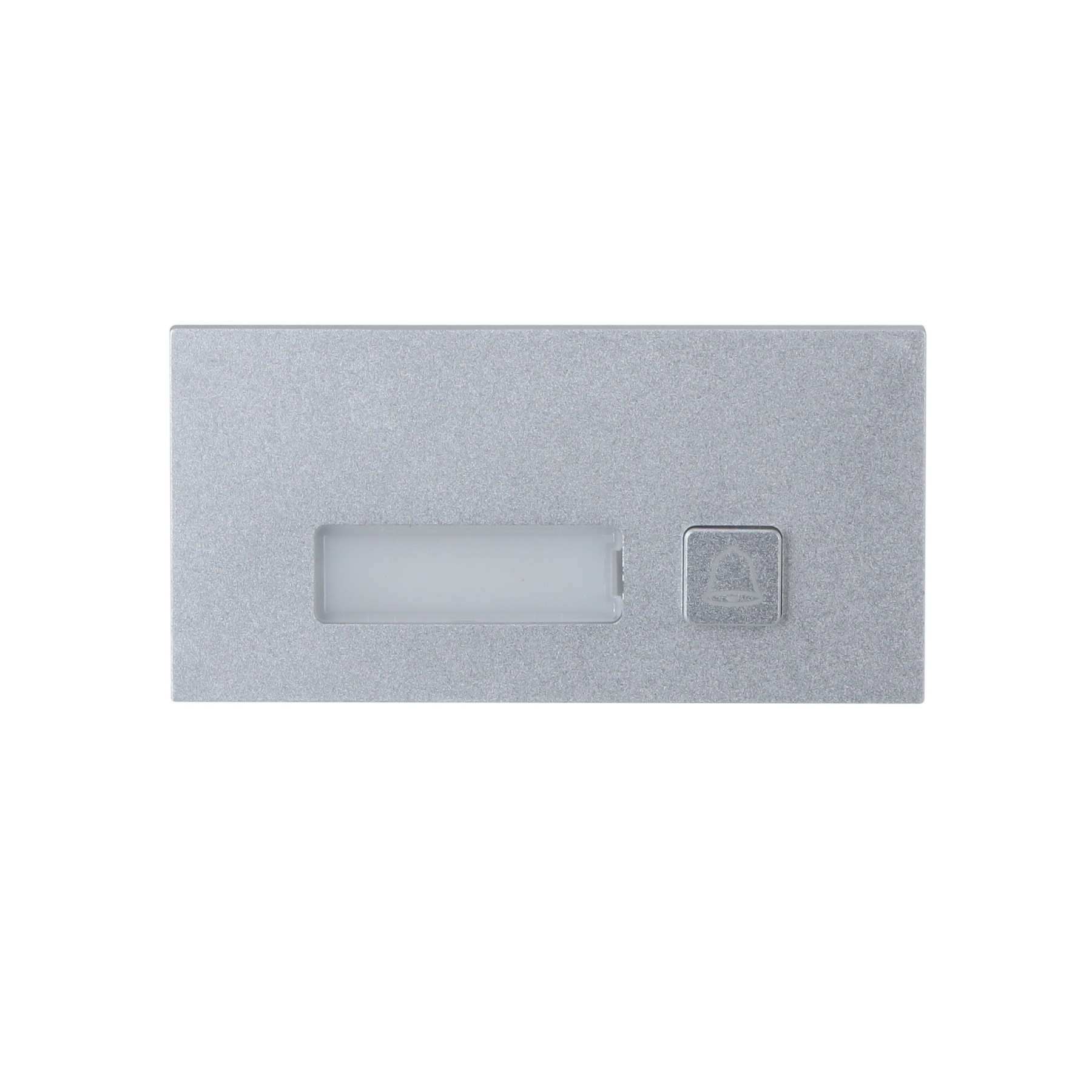

- All the modules are sold separately
Specifications
- Main Processor
- SoC processor
- Operating System
- Embedded Linux operation system
- Network Protocol
- IPv4, RTSP, RTP, TCP, UDP, SIP, P2P
- Camera
- CMOS Low illumination 2MP HD colorful 160° fisheye camera
- Angle of View
- H:160°, V:82°, D:180°
- Focal Length
- 1.95 mm
- WDR
- WDR
- Noise Reduction
- Noise suppression and echo cancellation
- Video Encoding
- H.264
- Frame Rate
- PAL: 25 fps; NTSC: 30 fps
- Video Bit Rate
- 256K to 2M
- Light Compensation
- IR light
- Day/Night Switch
- Yes
- Audio Encoding
- PCM G.711 A G.711 U
- Audio Input
- Built-in omnidirectional microphone
- Audio Output
- Built-in loudspeaker
- Audio Bit Rate
- 16 Khz 16bit
- Communication Methods
- Digital communication
- Unlock Mode
- Remote unlocking
- Auto Snapshot
- Yes
- Leave Videos or Text Messages
- Yes
- Web Configuration
- Yes
- Housing Material
- Aluminum
- RS-485 Port
- 1 RS-485 half-duplex port
- Alarm Output Port
- 1
- Power Output Port
- 1-ch DC 12V output 100mA
- Unlock Button
- Exit button for opening the door
- Door Status Detection
- Detects door magnetic status
- Door Lock Control
- NC/COM/NO
- Ethernet Port
- 10/100 Mbps self-adaptive Ethernet/2-wire
- Tamper alarm
- Tamper alarm
- Ingress Protection
- IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended.)
- Appearance Color
- Silver
- Power Supply Mode
- DC 12V/2-Wire IP Inteface/PoE
- Installation method
- Surface mount and flush mount
- Accessory
- Mounting box
- Dimensions
- 100 mm × 100 mm × 49.30 mm
- Protection Grade
- IK07, IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide)
- Working Temperature
- –20 °C to +60 °C (–4 °F to +140 °F )
- Working humidity
- 10%–90% (RH)
- Power consumption
- ≤ 12 W
- Net Weight
- 0.35 kg
- Gross weight
- 0.4 kg
