Dahua

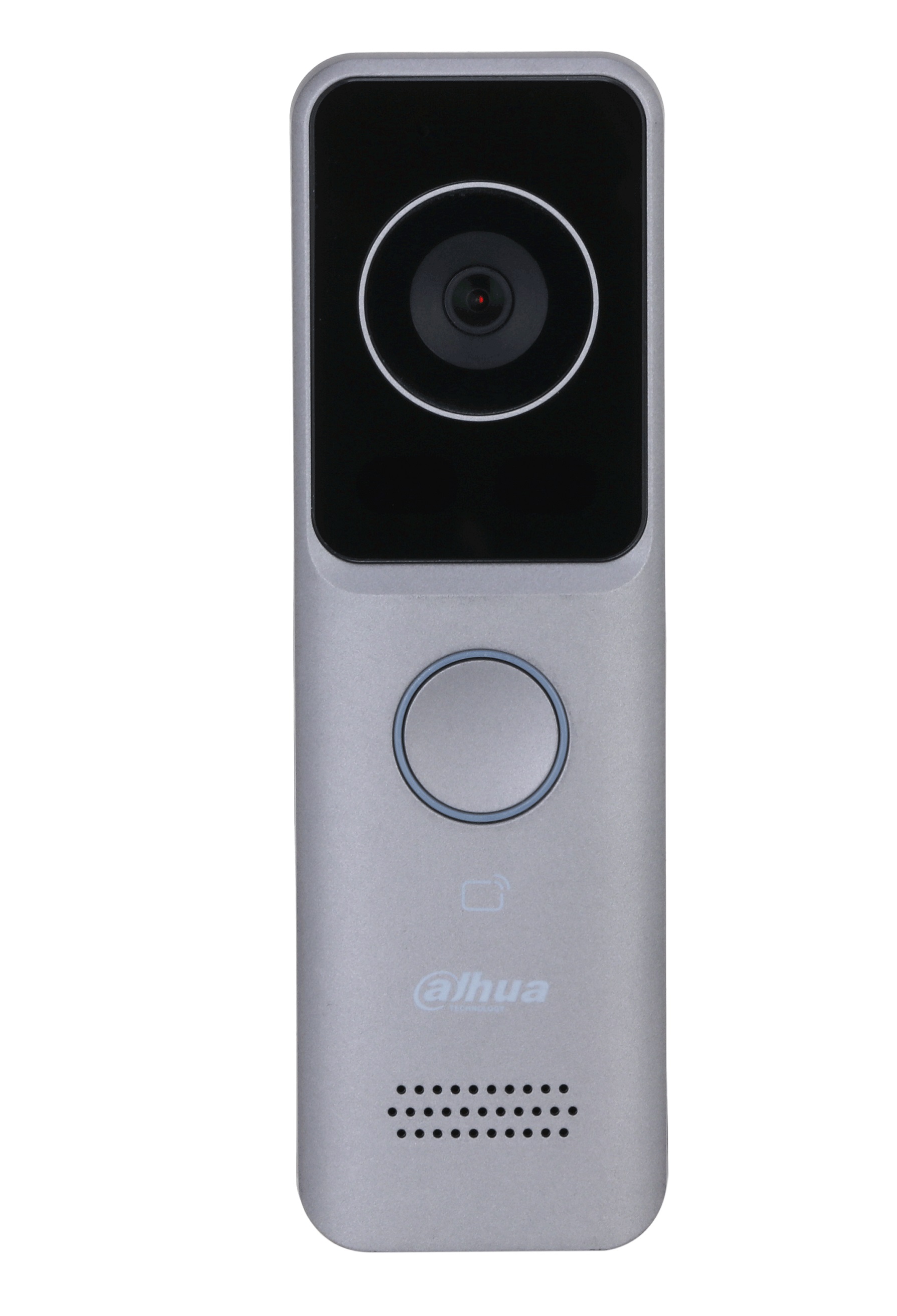

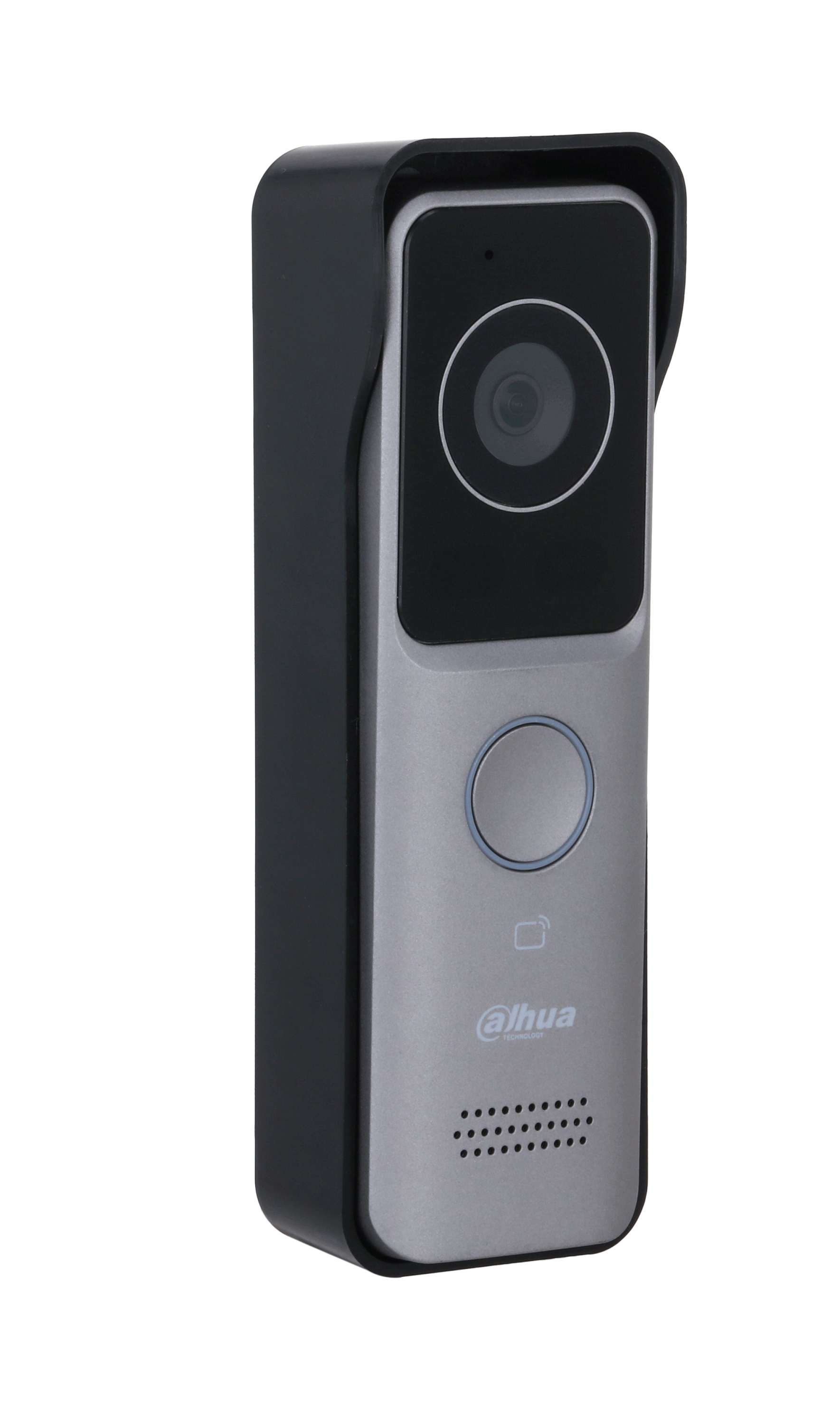

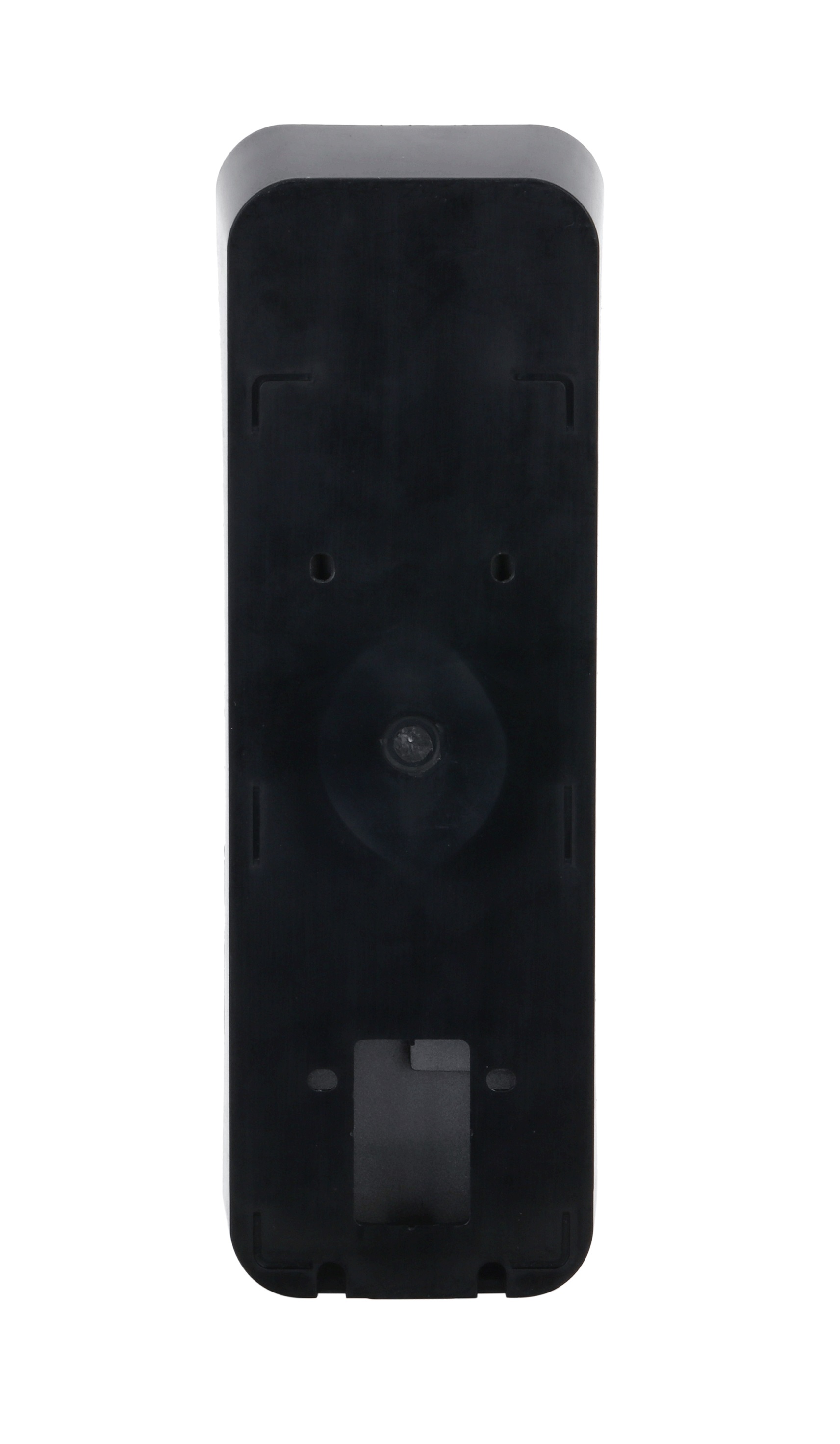

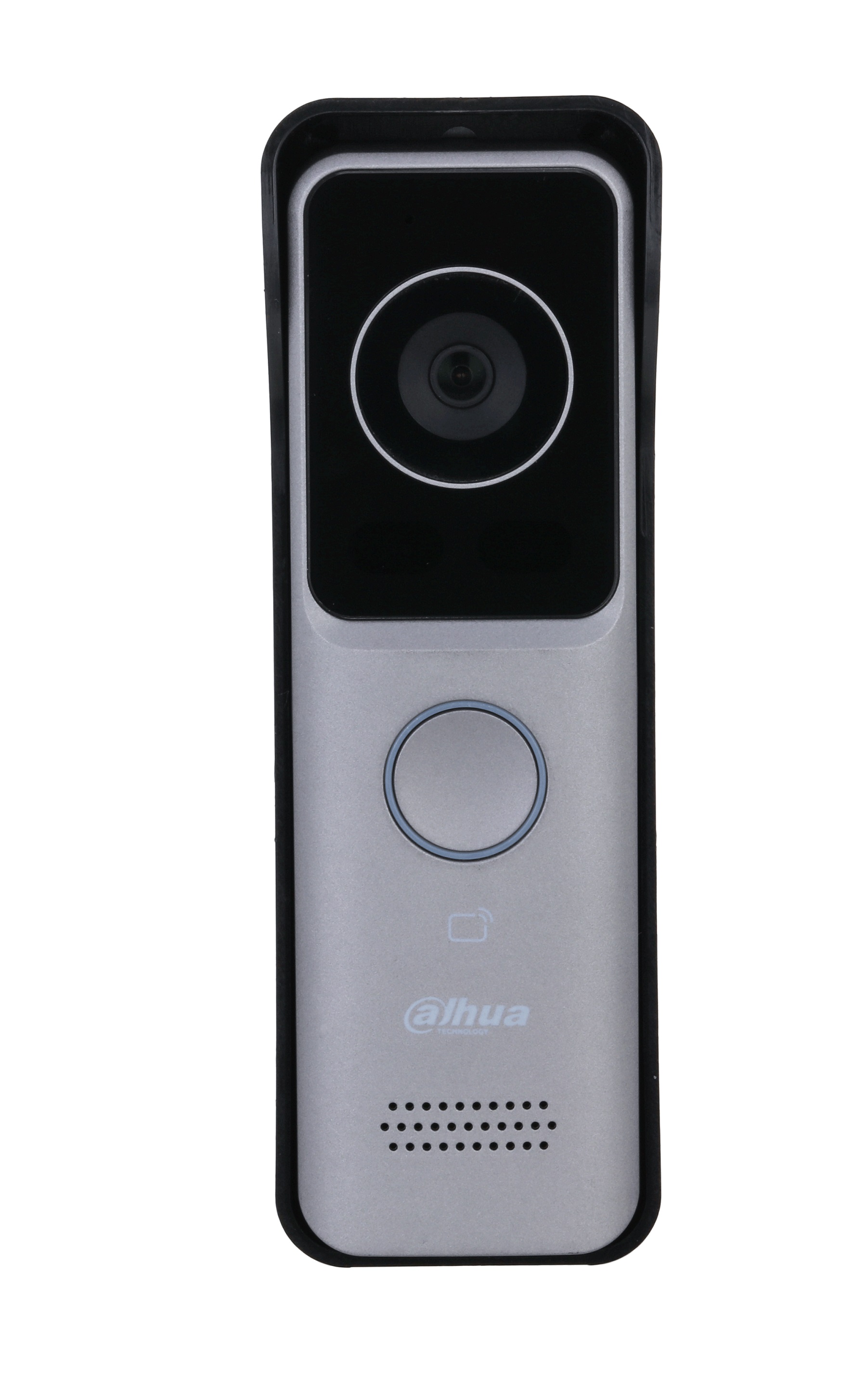

Dahua VD IP Wi-Fi Doorphone Camera 1Button VTO2311R-WP
Order code: 23529
- Main Processor:Embedded Processor
- Button Type:Mechanical
- Interoperability:ONVIF; CGI
- Network Protocol:RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF
- Camera:1/2.8" CMOS 2-MP HD camera
- All specifications
€283.00incl. VAT
Out of stock
Description
- Ultra slim design
- PC and ABS material make it ideal for indoor and outdoor use
- 1/2.8" 2-MP HD CMOS camera
- Offers two–way video call with indoor monitors
- Video and voice messages from visitors can be checked on the indoor monitor
- Video call and unlocking through app
- IR illumination and auto WDR
- Wi-Fi connection
- IP65 rated
- H.264 and H.265
- Unlock with IC card
- PoE power supply
Specifications
- Main Processor
- Embedded Processor
- Button Type
- Mechanical
- Interoperability
- ONVIF; CGI
- Network Protocol
- RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF
- Camera
- 1/2.8" CMOS 2-MP HD camera
- Field of View
- H: 110°; V: 62°; D: 133°
- WDR
- 120 dB
- Noise Reduction
- 3D NR; 2D NR
- Video Compression
- H.264; H.265
- Video Resolution
- Main stream: 720p, WVGA, D1, and CIF; / Sub stream: 1080p, WVGA, D1, QVGA, and CIF
- Video Frame Rate
- PAL: 25 fps / NTSC: 30 fps
- Video Bit Rate
- 768 kbps–8 Mbps
- Light Compensation
- Auto IR
- Day/Night
- Auto (ICR)/Color/B/W; Color/B/W
- Audio Compression
- G.711a; G.711u; PCM
- Audio Input
- 1
- Audio Output
- Built-in speaker
- Audio Mode
- Two-way audio
- Audio Enhancement
- Echo suppression/digital noise reduction; Echo suppression; Digital noise reduction
- Audio Bit Rate
- 16 kHz, 16 bit
- Communication Mode
- Full digital
- Unlock Mode
- Card; app; indoor monitor
- Card Type
- IC card
- Auto Snapshot
- Yes (SD card is inserted in the indoor monitor or door station)
- Leave Videos
- Yes (SD card inserted in VTH/VTO is needed)
- Web Configuration
- Yes
- Wi-Fi
- YES
- Wireless Standard
- IEEE 802.11b; IEEE 802.11g; IEEE 802.11n
- Wireless Frequency Range
- 2.4 GHz
- Storage
- Micro SD card (max. 256 GB)
- Card Reading Distance
- 0 cm–3 cm (0"–1.18")
- Issue Card Locally
- Yes
- Casing
- PC+ABS
- Card Capacity
- 3000
- Exit Button
- 1
- Door Status Detection
- 1
- Lock Control
- 1
- Network Port
- 1 × RJ-45 10/100 Mbps Ethernet port
- Tamper alarm
- Yes
- Appearance Color
- Light grey
- Power Supply
- 12–33 VDC, 1 A ; Standard PoE
- Power Adapter
- Optional
- Installation
- Surface Mount
- Certifications
- CE; FCC
- Accessory
- Included: Alarm power ribbon cable, rain cover
- Product Dimensions
- 160 mm × 50 mm × 30 mm
- Protection
- IP65
- Operating Temperature
- –40 °C to +60 °C
- Operating Humidity
- 10%–90% (RH), non-condensing
- Operating Altitude
- 0 m–3,000 m
- Power consumption
- ≤ 3.5 W (standby), ≤ 6 W (working)
- Gross weight
- 0.4 kg
- Net Weight
- 0.18 kg
