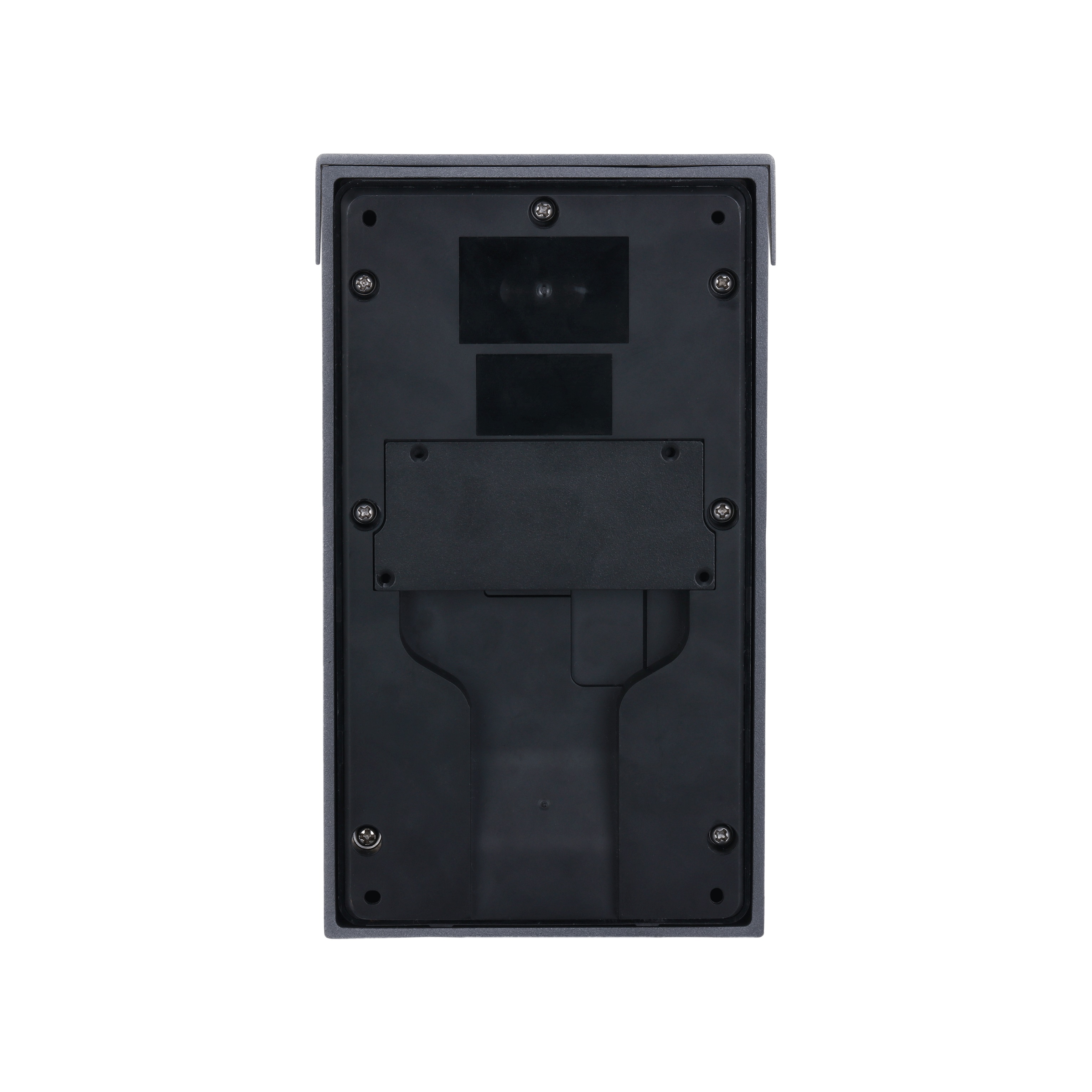

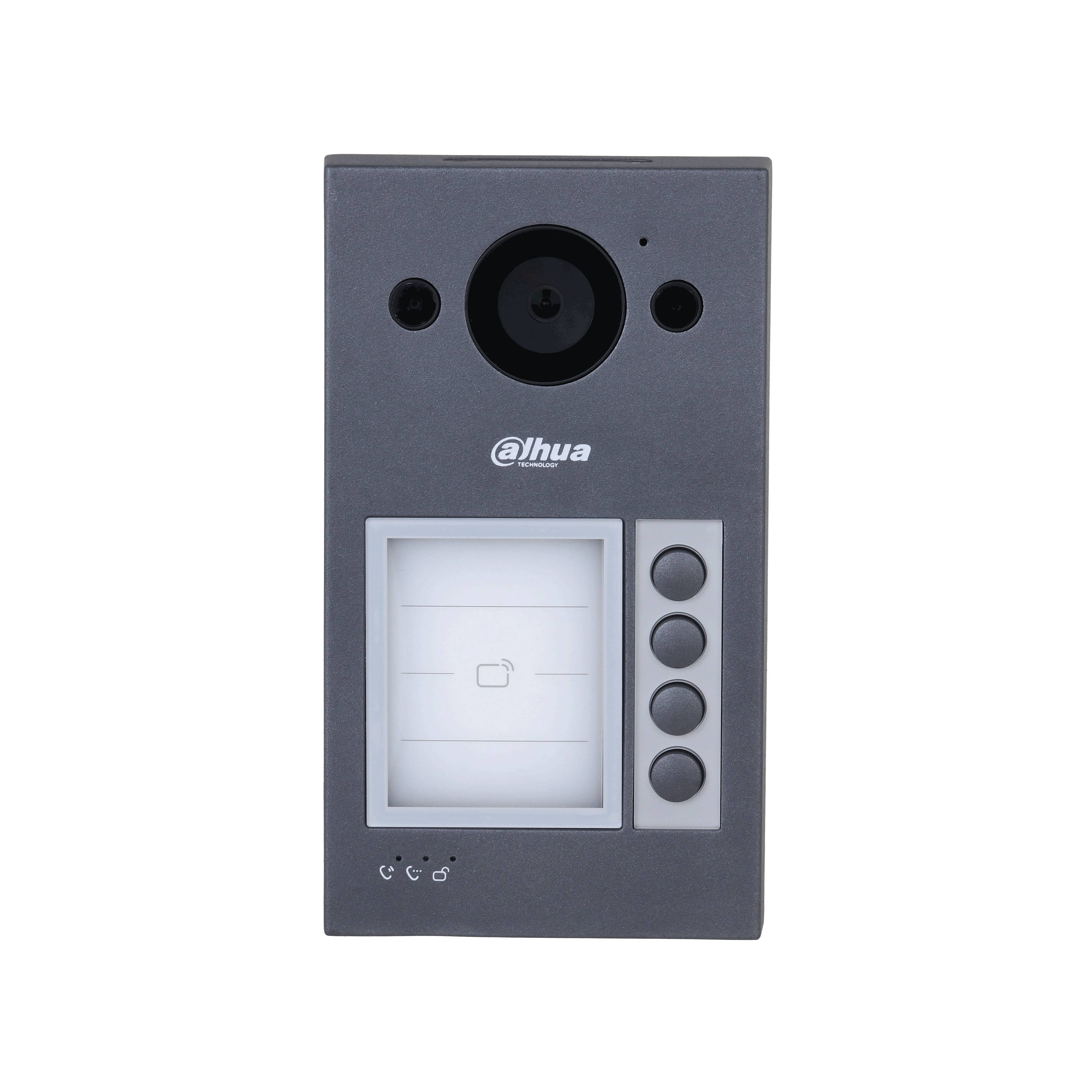

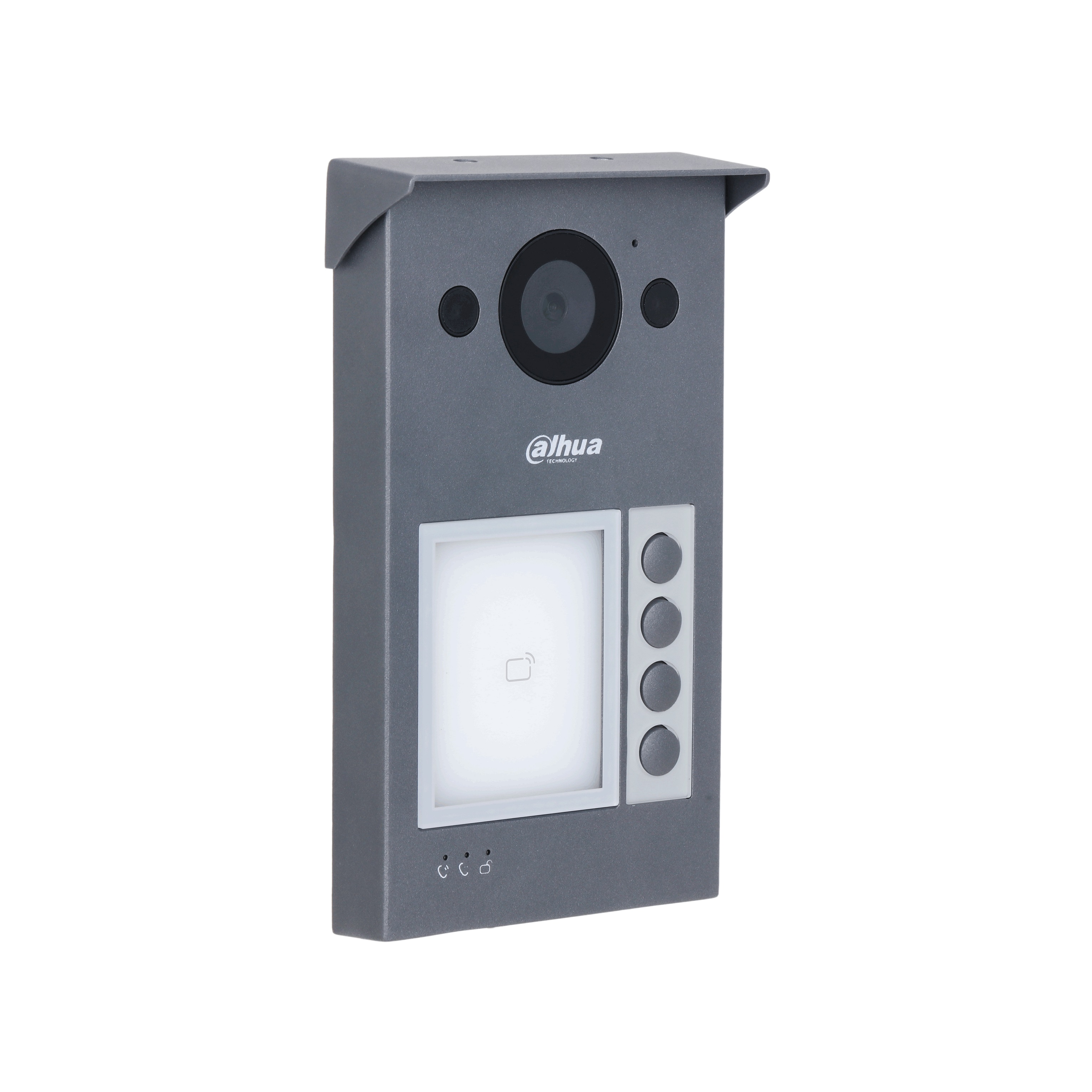

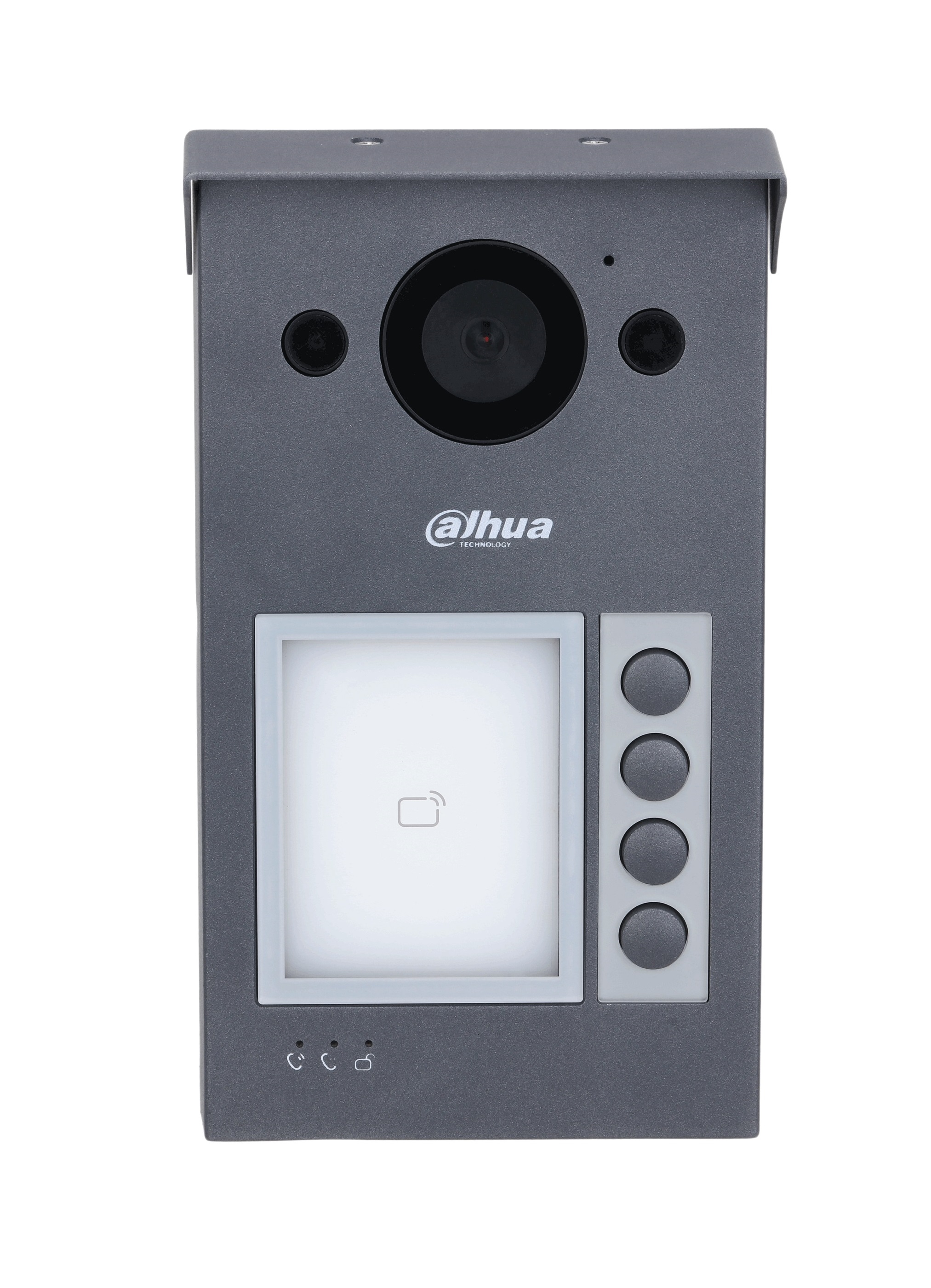

Dahua VD Wi-Fi 2MP Outdoor Station VTO3311Q-WP

Specifications

Main Processor

Embedded Micro Processor

Button Type

Mechanical

Interoperability

ONVIF; CGI

Network Protocol

RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF

Camera

1/2.8" CMOS 2-MP HD camera

Field of View

Horizontal: 125°; vertical: 65°; diagonal: 139°

WDR

120dB

Noise Reduction

3D NR; 2D NR

Video Compression

H.264; H.265

Video Resolution

Main stream: 720p, WVGA, D1, and CIF; / Sub stream: 1080p, WVGA, D1, QVGA, and CIF

Video Frame Rate

PAL:25 fps / NTSC:30 fps

Video Bit Rate

768 kbps–8 Mbps

Light Compensation

Auto IR

Day/Night

Auto (ICR)/Color/B/W; Color/B/W

Audio Compression

G.711a; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression and cancellation/digital noise reduction

Audio Bit Rate

16KHz, 16Bit

Communication Mode

Full digital

Unlock Mode

Card/app/indoor monitor unlock

Card Type

IC card

Motion Detection

Video motion detection

Auto Snapshot

Yes (SD card is inserted in the indoor monitor or door station)

Leave Videos

Yes (SD card inserted in VTH/VTO is needed)

Wi-Fi

YES

Wireless Standard

IEEE802.11b/802.11g/802.11n

Wireless Frequency Range

2.4GHz

Storage

Micro SD card (max. 256 GB)

Card Reading Distance

3cm–5cm

Issue Card Locally

Yes

Casing

Alluminum alloy

RS-485

1

Alarm Input

1

Alarm Output

1

Power Output

1

Exit Button

1

Door Status Detection

1

Lock Control

1

Network Port

1 × RJ-45 10/100 Mbps Ethernet port

Tamper

Yes

Color

Grey

Power Supply

12 VDC, 1 A; Standard PoE

Installation

Surface Mount

Certifications

CE; FCC

Accessory

Included: Alarm power ribbon cable, rain cover

Product Dimensions

188.1 mm × 107.2 mm × 30 mm

Protection

IP65 IK08

Operating Temperature

–40 °C to +60 °C

Operating Humidity

10%–90% (RH), non-condensing

Operating Altitude

0 m–3,000 m

Power consumption

≤ 3 W (standby), ≤ 6 W (working)

Gross weight

0.81 kg

Net Weight

0.55 kg
