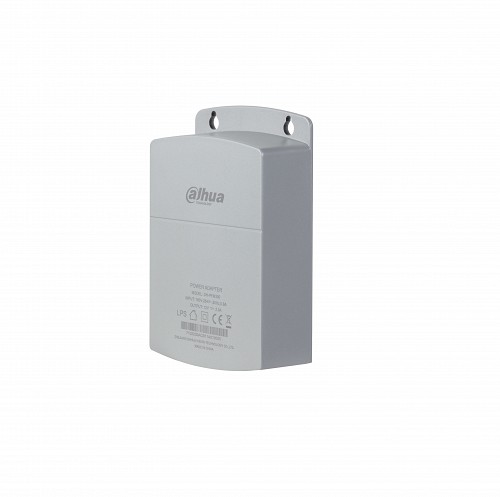

Dahua Waterproof Switching Power Supply 240V to DC12V 2A PFM300

Dahua Waterproof Switching Power Supply 240V to DC12V 2A PFM300

• Easy installation and wall mount, structural water-proof
• Support -30 ℃ ~+70 ℃ wide-range temperature operation, and the full load efficiency of the power supply can be up to 100% at these temperatures
• With junction function for camera wiring or can place video balun with HDCVI/AHD/TVI/CVBS cameras
• Made of PC environmental protection material, which meets “V0” fire protection;
• Accurate over current, voltage load protection

• Rated input : AC180~264V, 50/60Hz, 0.6A
• Efficiency : 82%
• no-load power consumption : <0.5W
• Output voltage : DC12V (±5%)
• Output current : 2A (±2%)

Protection/Environmental

• Protection : Accurate over current, voltage load protection / “V0” fire protection
• Working temperature : -30℃~+70℃(-22℉~+158℉)
• Working humidity : <90% RH

Physical Properties

• Weight : 160g(0.35lb)
• Dimension : 88mmx37mmx138mm
• Installation : Wall mount
• Color : Grey
• Input : Palisade terminal
• Output : DC output wire 60mm (interface: φ5.5×φ2.1)

Safety Standards

• Certification : CE
