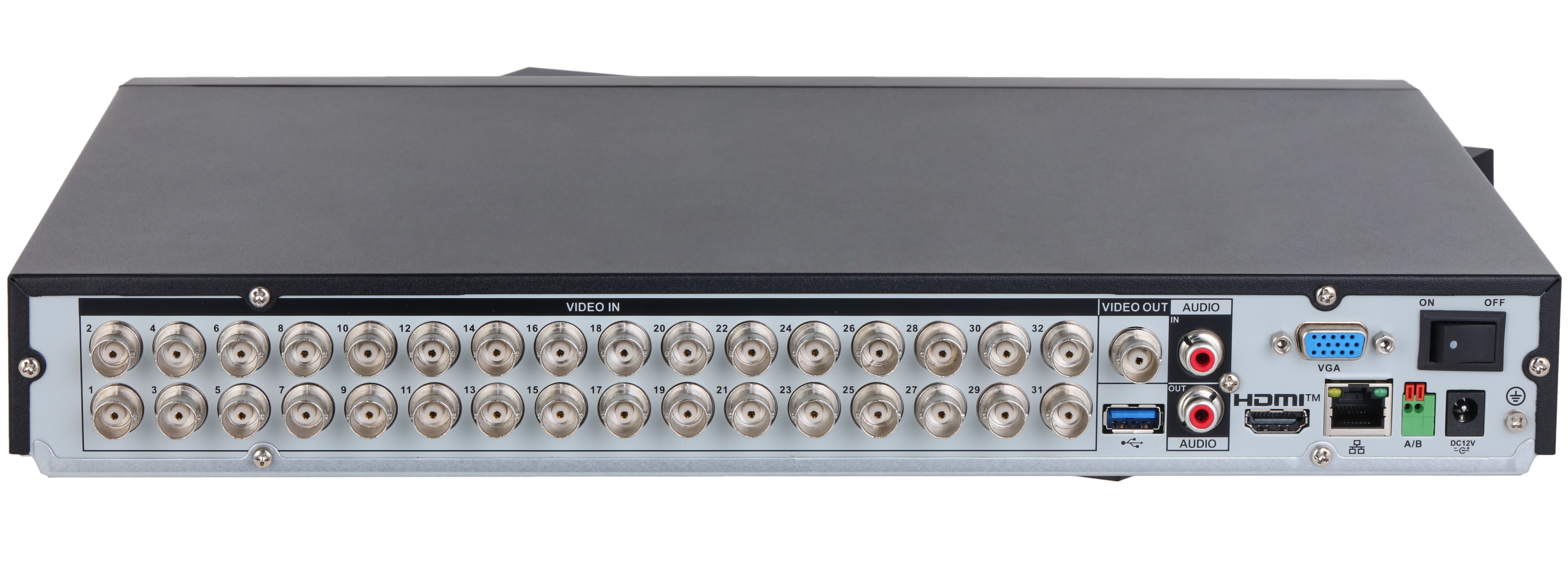

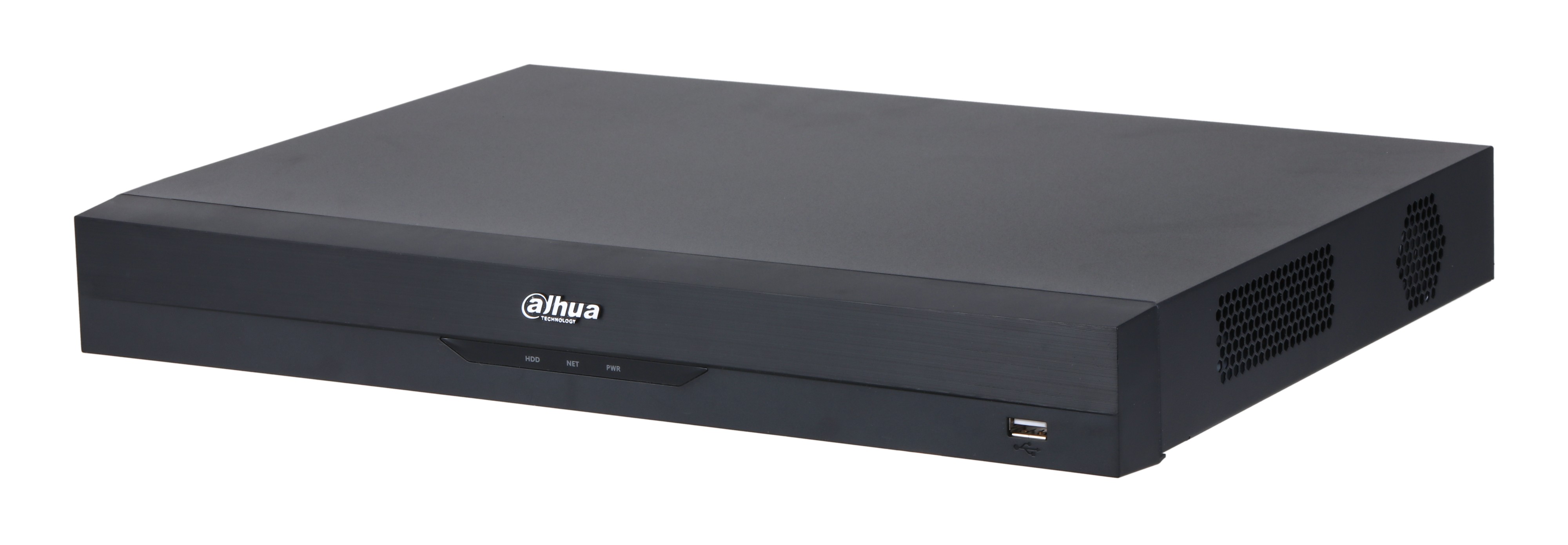

Dahua XVR 1080P 32channels H.265 Penta-brid 2HDD WizSense XVR5232AN-I3/T (Supports AI)

Order code: 29399

Main Processor:Industrial-grade processor
Operating System:Embedded Linux
Operating Interface:Web; Local GUI
AcuPick Performance of AI by Recorder (1080P) (Number of Channels):2 channels
Perimeter Performance AI by Recorder (Number of Channels):Advanced Model: 8 channels, 10 IVS for each channel
All specifications

€934.00incl. VAT

Out of stock

Description

32-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder
2-channel AcuPick for analog channels which improves the efficiency of target retrieval
8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI
2-channel face recognition for analog channels which supports face comparison
32-channel SMD Plus for analog channels or 48-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles
16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos
Supports HDCVI, AHD, TVI, CVBS and IP video input
Supports up to 48-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 192 Mbps
Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes
Smart H.265+ and H.265 dual-stream video compression

*Dolynk cloud version: DMSS 2.0.30 and above, Dolynk Care 2.50.20 and above

Specifications

Main Processor: Industrial-grade processor
Operating System: Embedded Linux
Operating Interface: Web; Local GUI
AcuPick Performance of AI by Recorder (1080P) (Number of Channels): 2 channels
Perimeter Performance AI by Recorder (Number of Channels): Advanced Model: 8 channels, 10 IVS for each channel
Face Attributes: 6 attributes
Face Detection Performance of AI by Recorder (Number of Channels): 2 channels (up to 12 face images/s)
Face Database Capacity: Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture
Face Recognition Performance of AI by Recorder (Number of Channels): 2 channels
SMD Plus by Recorder: 32 channels : Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change
AI Video Quality Analytics by Recorder: 32 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
Scene Changing by Recorder: 1 channel
Irregular Black Block Masking by Recorder: 1 channel
Analog Camera Input: 32 BNC ports, CVI access by default, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input: CVI: 5MP, 4 MP, 1080P@25/30 fps; 720P@50/60 fps; 720P@25/30 fps / TVI: 5MP, 4MP, 3MP, 1080P@25/30 fps; 720P @25/30 fps / AHD: 5MP, 4MP, 3MP, 1080P@25/30 fps, 720P @25/30 fps
IP Camera Input: Up to 32 channels of IPC access : 32 channels (analog channels are converted to IP channels) : incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
Encoding Capacity: Main stream: All channels 5M-N@(1fps–10fps); 4M-N/1080P@(1fps–15fps); 1080N; 720P; 960H; D1; CIF@(1fps–25/30fps) / Sub stream: D1/CIF@(1fps–25/30fps)
Dual-stream: Yes
Video Frame Rate: PAL: 1 fps–25 fps. / NTSC: 1 fps–30 fps
Video Bit Rate: 32 kbps–6144 kbps per channel
Audio Sampling: 8 kHz, 16 bit
Audio Bit Rate: 64 kbps
