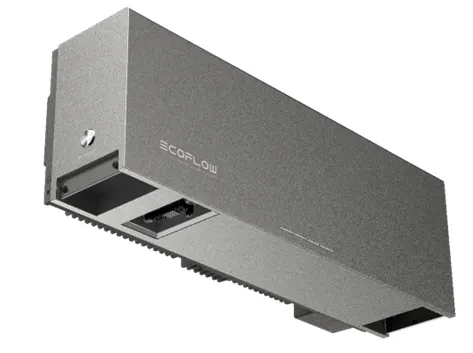

EcoFlow PowerOcean DC Fit Converter
Order code: 25304EAN: 4895251611541
- Coupling Method:PV coupling
- Maximum PV input power:5kW (2.5kW * 2)
- Maximum input voltage:1000V d.c.
- Operating Voltage Range:720V~960V
- Starting voltage:150V
- All specifications
€1,199.00€1,389.00incl. VAT
You save €190.00 (14%)
Ships in 2-4 working days
Free pickup from our shop
Description

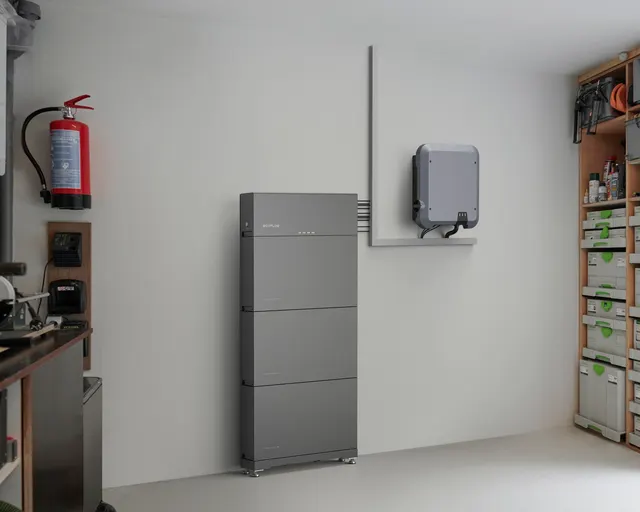

An easy and unique PV-coupled retrofit battery storage solution.

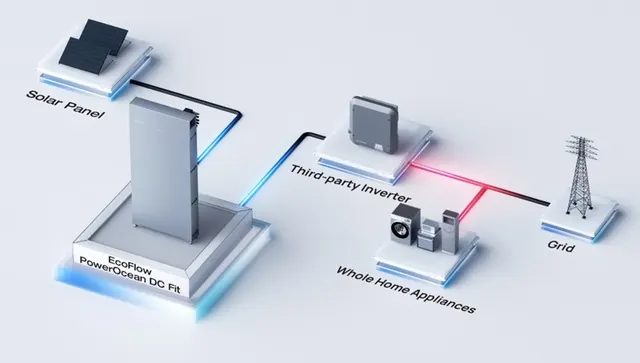

- With EcoFlow's unique PV-coupling technology, the PowerOcean DC Fit enables direct connection of the battery to the solar system on the PV side, eliminating the need for an additional storage inverter. This streamlined installation process saves valuable time while maximizing the efficiency of user’s existing solar system. By seamlessly integrating up to 15kWh of battery storage into your home solar system, the PowerOcean DC Fit empowers users to achieve energy self-sufficiency easily and cost-effectively
- Easy to retrofit Simply by connecting battery storage with solar panels
- Compared to conventional hybrid inverter and home battery systems,the PowerOcean DC Fit seamlessly integrates battery storage into your existing solar system, eliminating the need for an additional storage inverter. This innovative solution efficiently boosts your energy self-sufficiency without requiring significant modifications to your current solar inverter
No storage inverter is needed
- Seamlessly adding battery storage to your existing solar system without installing an additional storage inverter. Modular design, expandable anytime Starting with 5kWh per battery pack and expandable to up to 15kWh anytime when needed, helping users increase their energy self-sufficiency rate with more flexibility

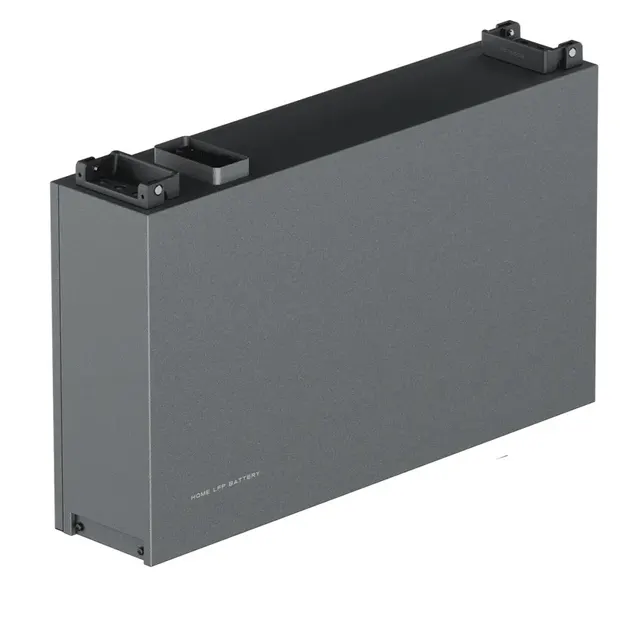

*Needs 1 x EcoFlow PowerOcean LFP Battery 5KWh to work
**Power Ocean battery sold seperately
Specifications
- Coupling Method
- PV coupling
- Maximum PV input power
- 5kW (2.5kW * 2)
- Maximum input voltage
- 1000V d.c.
- Operating Voltage Range
- 720V~960V
- Starting voltage
- 150V
- Maximum PV current per string
- 24A
- Maximum operating current per string
- 12A
- Number of PV strings
- 2
- Supported solar inverter type
- Single phase / Three phase
- Output voltage range
- 150V~800V d.c.
- Maximum output power
- 5kW
- Maximum output current
- 24A
- Output current per string
- 12A
- Battery material
- LFP
- Nominal Voltage
- 800V
- Output voltage of the battery pack
- 800V
- Capacity of each battery pack
- 5.1kWh
- Maximum charging power
- 2.5kW
- Maximum discharging power
- 3.3kW
- Cooling method
- Natural convection
- Operating temperature range
- -20°C~50°C
- Operating Humidity
- 0~100% RH
- Maximum Operating Altitude
- 3000m
- Converter weight
- 20kg

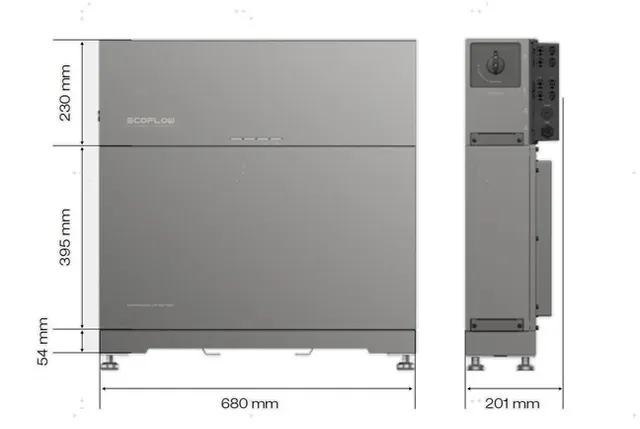

- Converter dimensions(W*D*H)
- 680mm*201mm*230mm (±1mm)
- 1 battery pack weight
- 59.2kg
- 1 battery pack dimensions(W*D*H)
- 680mm*183mm*479mm (±1mm)
- Protection Level
- P65
- Communication method
- RS485, Wi-Fi, WAN, Bluetooth
- Noise Level
- ≤35dB
- Converter safety standard
- IEC/EN62109-1
- Battery safety standard
- IEC/EN62619, IEC/EN62040-1,IEC/EN62477-1, ISO13849
- Protective Class
- I
