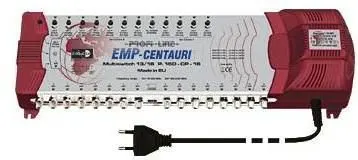

EMP P160CP16 Profiline 13/16 Active Multiswitch
Order code: UB-1595
- Type:Multiswitch
- Inputs:13
- Outputs:16
- Active Terrestrial:Yes
- Series:Profiline
€209.40incl. VAT
Ships in 1 working day
Free pickup from our shop
Description
EMP P160CP16 Profiline 13/16 Active Multiswitch
- Economical high-power switching power supply is integrated on the device already. It has an electronically controlled security, which reflects optical and acoustic signals
- Input (connectors) 13 (12x satellite, 1x terrestrial)
- Output (terminals) 16 (analogue or digital receiver)
- Input frequency range (Sat) 950 - 2300 MHz
- Input frequency range (terrestrial) 40-862 MHZ
- Output frequency range (receiver) 40-2300 MHz
- LNB voltage 10 to 14.5 / 15.5 to 20.0 V
- Input Attenuation 950 - 2300 MHz 5 dB typ
- Insertion Loss 40-862 MHz 5 dB typ
- Decoupling 30 dB typ
- Output Level 80 dBmV
- Current consumption (including all LNB's) 22 VA max.
- Umschaltssteuerung DiSEqC
- Terrestrial transmission attenuation 0 dB avg.
- Transmission attenuation Sat -2 DB avg.
- Max input level satellite 94 dBmV
- Max input level Terrestrial 830 dBmV
- Temperature Range -25 ° C - +60 ° C
- LNB supply 1000 mA max.
- Sat-input isolation 20 dB min.
Specifications
- Type
- Multiswitch
- Inputs
- 13
- Outputs
- 16
- Active Terrestrial
- Yes
- Series
- Profiline
