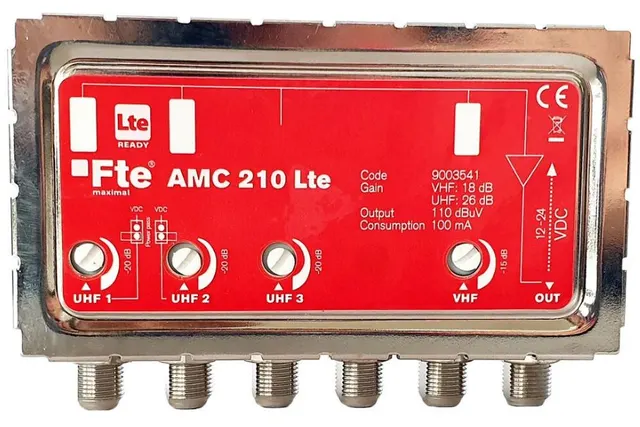

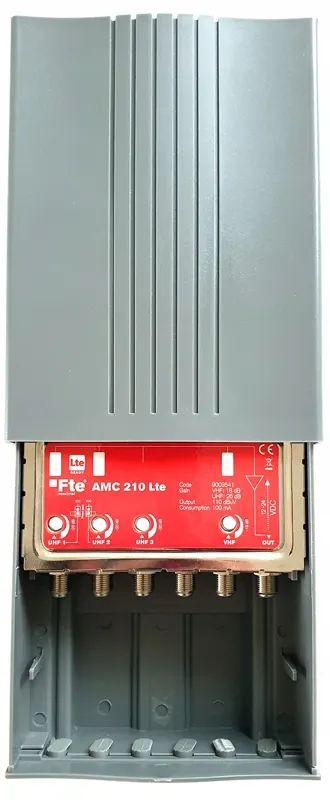

FTE AMC210 LTE Configurable VHF/UHF Mast Amplifier
Order code: 25726EAN: 8436545301999
- Type:Mast Amplifier
- Inputs:3
- UHF Inputs:3
- VHF Inputs:1
- Outputs:1
- All specifications
€32.00incl. VAT
Ships in 2-4 working days
Free pickup from our shop
Description
- Inputs and bands: 1: VHF / 3: UHF (470-790 MHz)
- Gain: VHF: 18 dB / UHF: 26 dB
- Regulation: VHF: 15 dB / UHF: 20 dB
- Noise figure: VHF: 3 dB / UHF: 4 dB
- Output level: 110 dBµV
- Current consumption: 100 mA
- Power Supply: 12 to 24 VDC
- Feeding (VDC): Yes / 2 UHF
Specifications
- Type
- Mast Amplifier
- Inputs
- 3
- UHF Inputs
- 3
- VHF Inputs
- 1
- Outputs
- 1
- Gain per output
- 26db
- Total Output
- 110db
