FTE Maximal

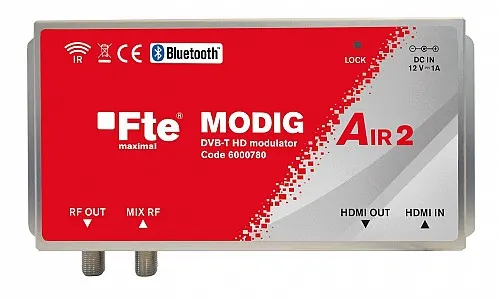

FTE MODIG AIR 2 Full HD Modulator Loop & Bluetooth
Order code: UB-1579
- Type:Digital
- Input Channels:Single
- Output:90db
- HDMI input:Yes
- Display:Mobile Phone
€199.00incl. VAT
Ships in 1 working day
Free pickup from our shop
Description
FTE MODIG AIR 2 Full HD Modulator Loop & Bluetooth
-
-
- Input: 1 x HDMI Type A
- Video encoder: MPEG-4 AVC / H.264
- Video bit rate: 1-19 Mb/s adjustable
- Audio bit rate : 64, 96, 128, 192, 256, 320, 384 Kbps
- Transport Stream configurable parameters: Video PID, Audio PID, PMT PID, TS IF, ONID, NID, Service name, Service ID, Providor Name
- LCN support: Yes
- Standard: DVB-T (COFDM) EN 300 744
- Bandwidth: 5, 6, 7, 8 MHz
- Mode: 2K, 8K
- Output frequencies: 174-230MHz / 470-862 MHz
- Output level: 90±2 dBµV
- MER: 35 dB (Typical)
- Programming interface: Via Bluetooth Requires Version 4.0 and above
- Voltage supply: +12 Vdc
- Current consumption: 290 mA
- External power supply: 100-230Vca-0.5A /12Vdc-2A
-
Specifications
- Type
- Digital
- Input Channels
- Single
- Output
- 90db
- HDMI input
- Yes
- Display
- Mobile Phone
