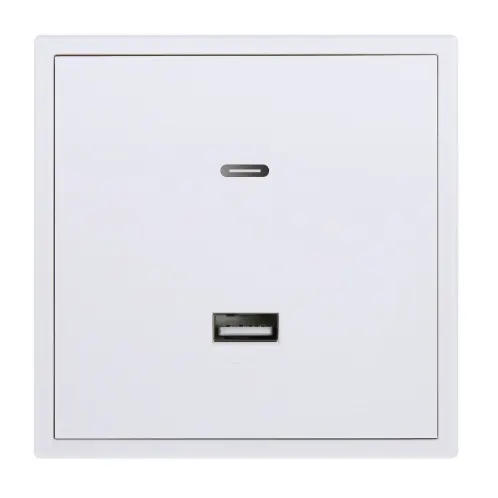

HDL Panel TILE SERIES Ivory White 1xUSB-A 1xUSB-C
Order code: 27009
- Rated voltage:220V AC, 50Hz
- Rated current:2.2mA/220V AC
- Output power:20W
- USB-A Output:5V/3A, 9V/2A, 12V/1.5A
- Type-C output:5V / 3A, 9V / 2.22A, 12V / 1.67A
- All specifications
€52.00incl. VAT
Ships in 2-4 working days
Free pickup from our shop
Description
- Tile USB2.0 and Type-C Socket is equipped with one Type-C port and one USB port, providing fast charging for Type-C and USB 2.0 devices at the same time.
Specifications
- Rated voltage
- 220V AC, 50Hz
- Rated current
- 2.2mA/220V AC
- Output power
- 20W
- USB-A Output
- 5V/3A, 9V/2A, 12V/1.5A
- Type-C output
- 5V / 3A, 9V / 2.22A, 12V / 1.67A
- USB-A + Type-C output
- 5V/3A MAX.
- Working Temperature
- -5℃~45℃
- Working relative humidity
- ≤90% RH, non-condensed
- Storage Temperature
- -20℃~60℃
- Storage relative humidity
- ≤93%
- Dimensions (W x H x D)
- 86×86×30.5 (mm)（with plastic frame)
- Net Weight
- 102.7g（without plastic frame)/113.7g（with plastic frame)
- Housing Material
- Flame-retardant PC
- Installation
- Wall box
- Protection rating (Compliant with EN 60529)
- IP20
