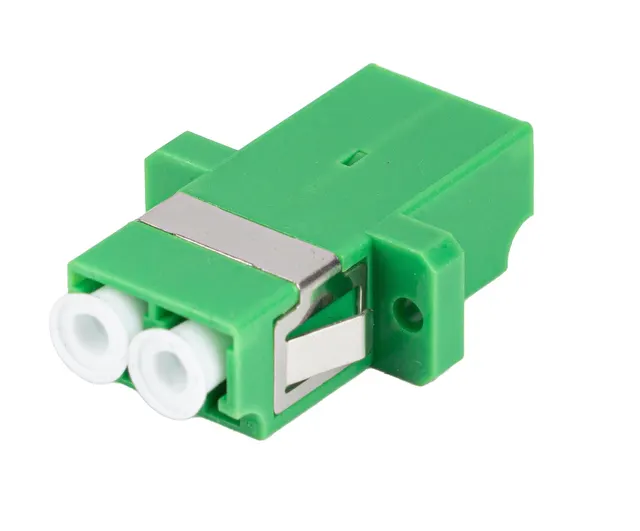

Lanberg Fiber Adapter LC/APC SM Duplex
Order code: 24333EAN: 5901969433739
- Connector type:LC
- Polishing standard:APC - ANGLED PHYSICAL CONTACT
- Type of optical fiber:single-mode (SM)
- Ferrule diameter:1.25 mm
- Cable Construction:DUPLEX
- All specifications
€1.99incl. VAT
Ships in 2-4 working days
Free pickup from our shop
Description
Lanberg Fiber Adapter LC/APC SM Duplex
Fiber optic adapter is one of the components necessary for the construction of a fiber optic network. It was made with high precision and using the highest quality materials.
The adapter housing is created from very durable plastic, has a flange (flanges) with screw holes and a standard latch. The precision of the ceramic sleeve forming the connection for the ferrules ensures very low attenuation and repeatability of parameters.
The adapter finds its use in various configurations of connecting patchcords and in fiber optic switches and subscriber outlets in which it connects the pigtail to the patchcord.
- Connector type: LC
- Polishing standard: APC - ANGLED PHYSICAL CONTACT
- Type of optical fiber: single-mode (SM)
- Ferrule diameter: 1.25 mm
- Cable Construction: DUPLEX
- Insertion loss: < 0,1 dB
- Return loss: > 55 dB
- Operating temperature: -40 – 85 °C
- Number of operating cycles: >1000
- Color: GREEN
Specifications
- Connector type
- LC
- Polishing standard
- APC - ANGLED PHYSICAL CONTACT
- Type of optical fiber
- single-mode (SM)
- Ferrule diameter
- 1.25 mm
- Cable Construction
- DUPLEX
- Insertion loss
- < 0,1 dB
- Return loss
- > 55 dB
- Operating temperature
- -40 – 85 °C
- Number of operating cycles
- >1000
- Color
- GREEN
