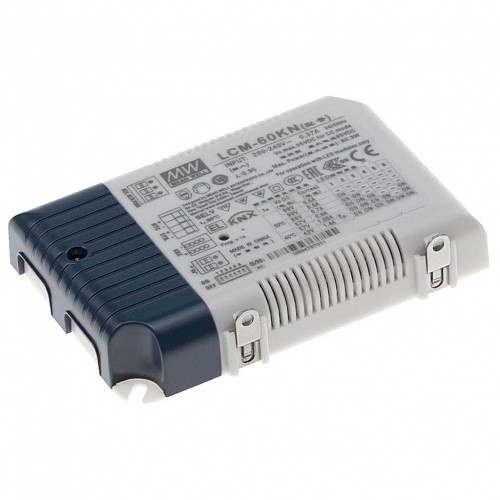

Meanwell LCM-60KN KNX Multi-Stage LED Driver 60W
- Constant current mode output with multiple levels selectable by dip switch
- KNX protocol
- Supports Emergency Lighting
- Integrated constant light output
- Integrated KNX push button interface
- Synchronisation of up to 10 units
- Functions: manual dim, operation hours, power consumption feedback and log/linear curve selection etc
- 3 years warranty
- Description : AC-DC Multi-Stage LED driver Constant Current (CC); Modular output 0.5A/0.6A/0.7A/0.9A/1.05A/1.4A; dimming KNX and push
- Application : LED EN 61347
- Net weight : 240g
- Technology : AC/DC / Constant Current C.C
- Power Format : Box Type - Enclosed / Enclosed Plastic housing
- Output Power : 60W
- Output Voltage (V) : 42,57,67,86,90
- Output Current (A) : 0.5,0.7,0.9,1.05,1.4
- Input Voltage (V) : 180 - 295
- IP Rating : No IP assigned
- Width : 81.5mm
- Height : 23mm
- Depth : 123.5mm
- Control Signals : KNX
- Dimming Technology : KNX / Push Button
- Housing Type : Plastic
