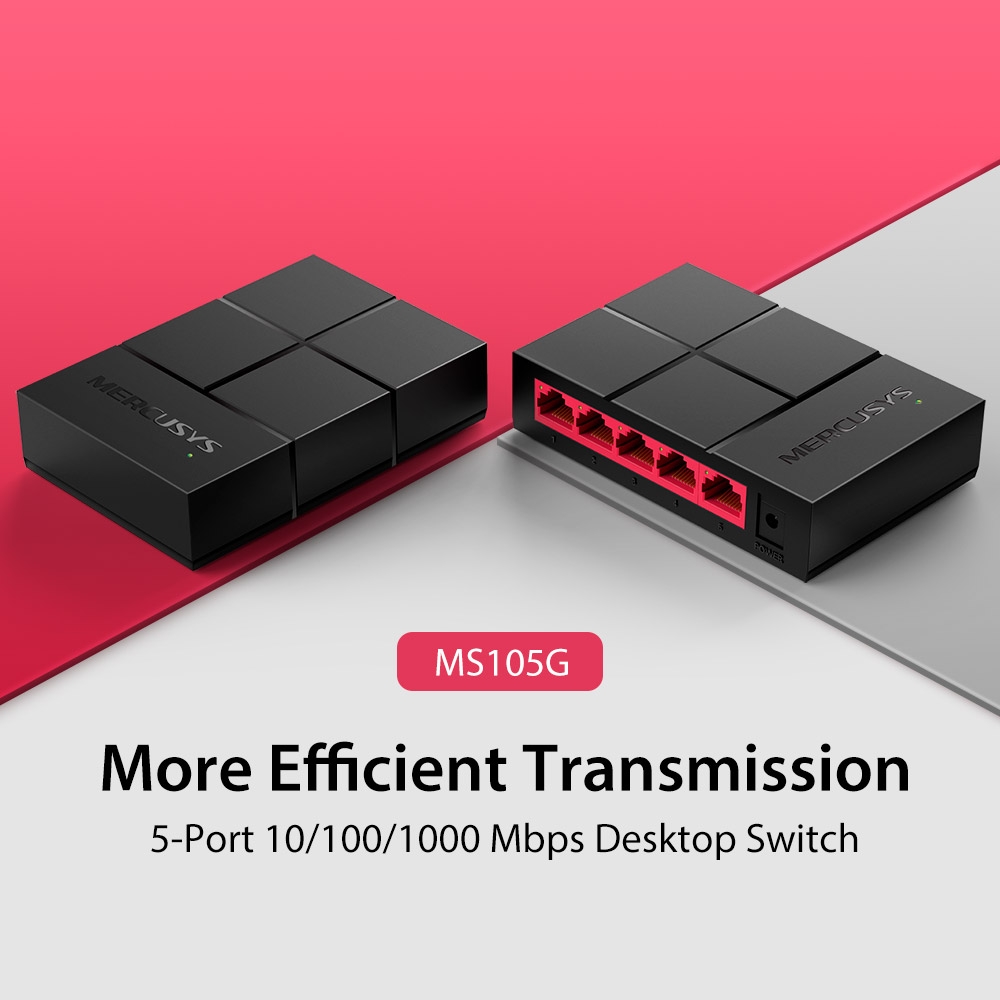

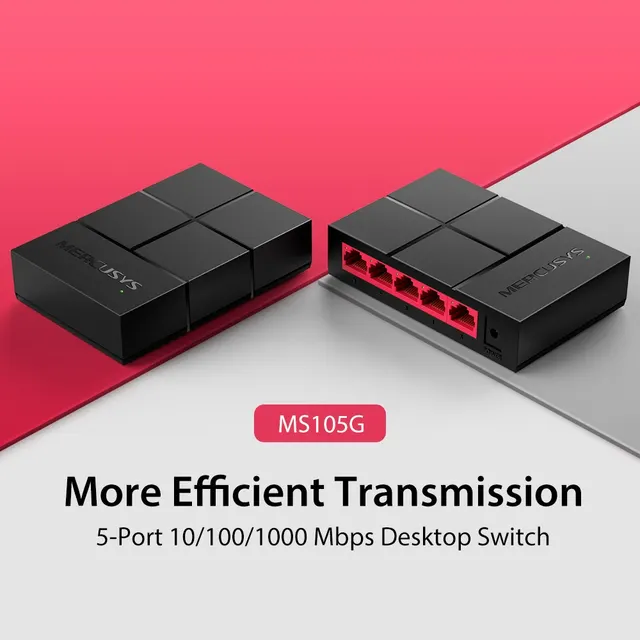

Mercusys MS105G 5-Port 10/100/1,000 Mbps Desktop Switch

Mercusys MS105G 5-Port 10/100/1,000 Mbps Desktop Switch

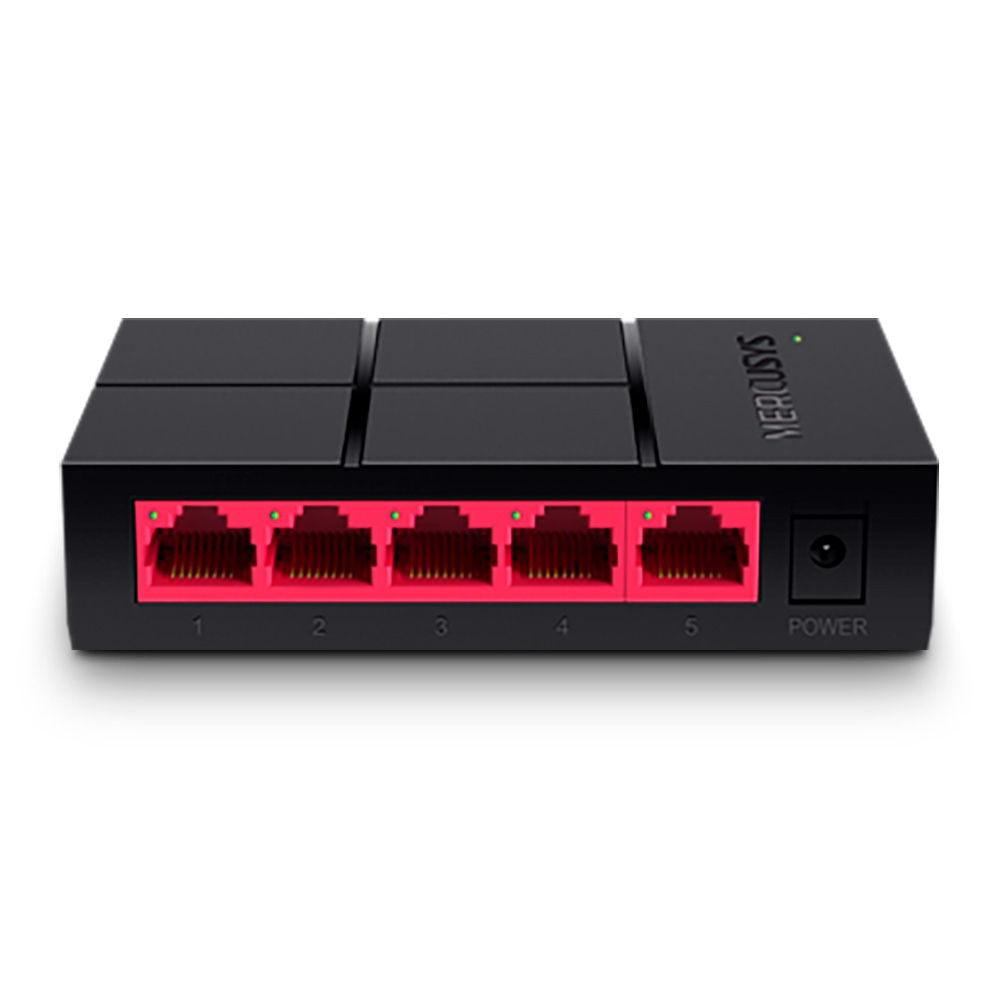

• Five 10/100/1,000 Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported

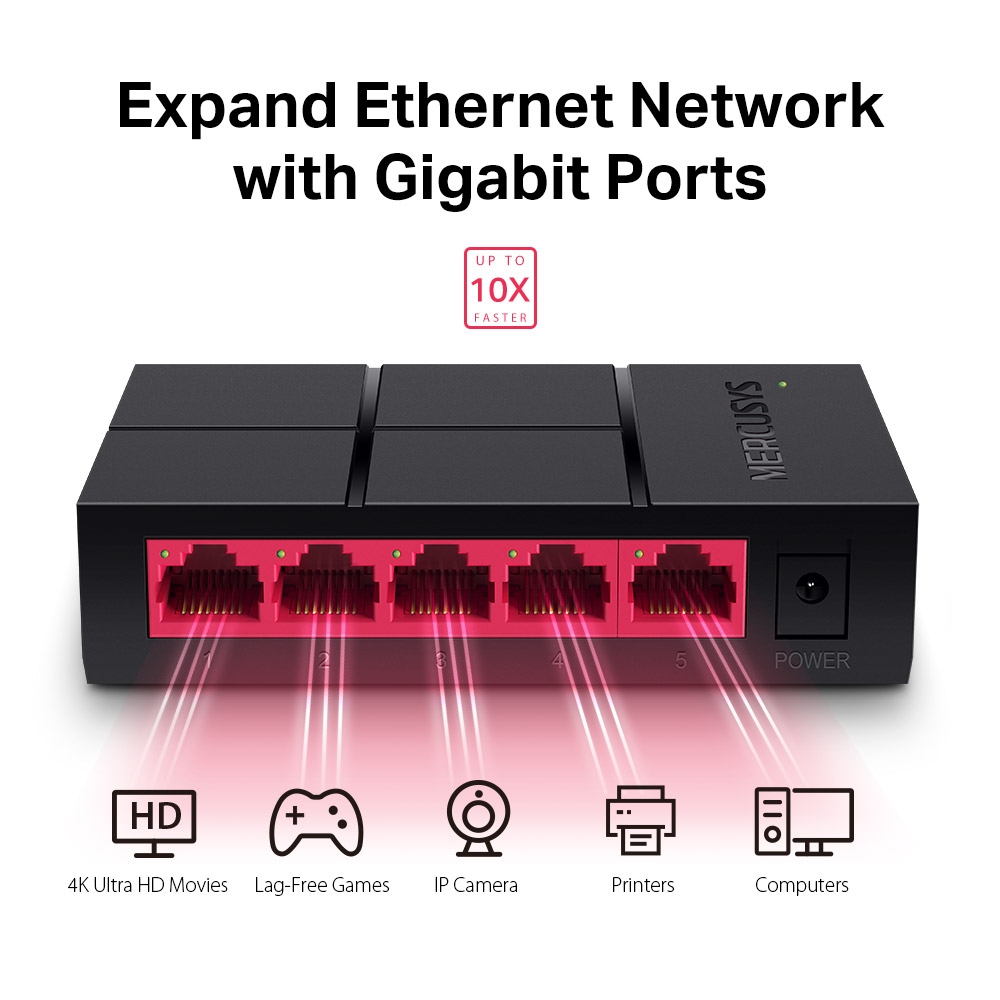

• Easily wired network expansion

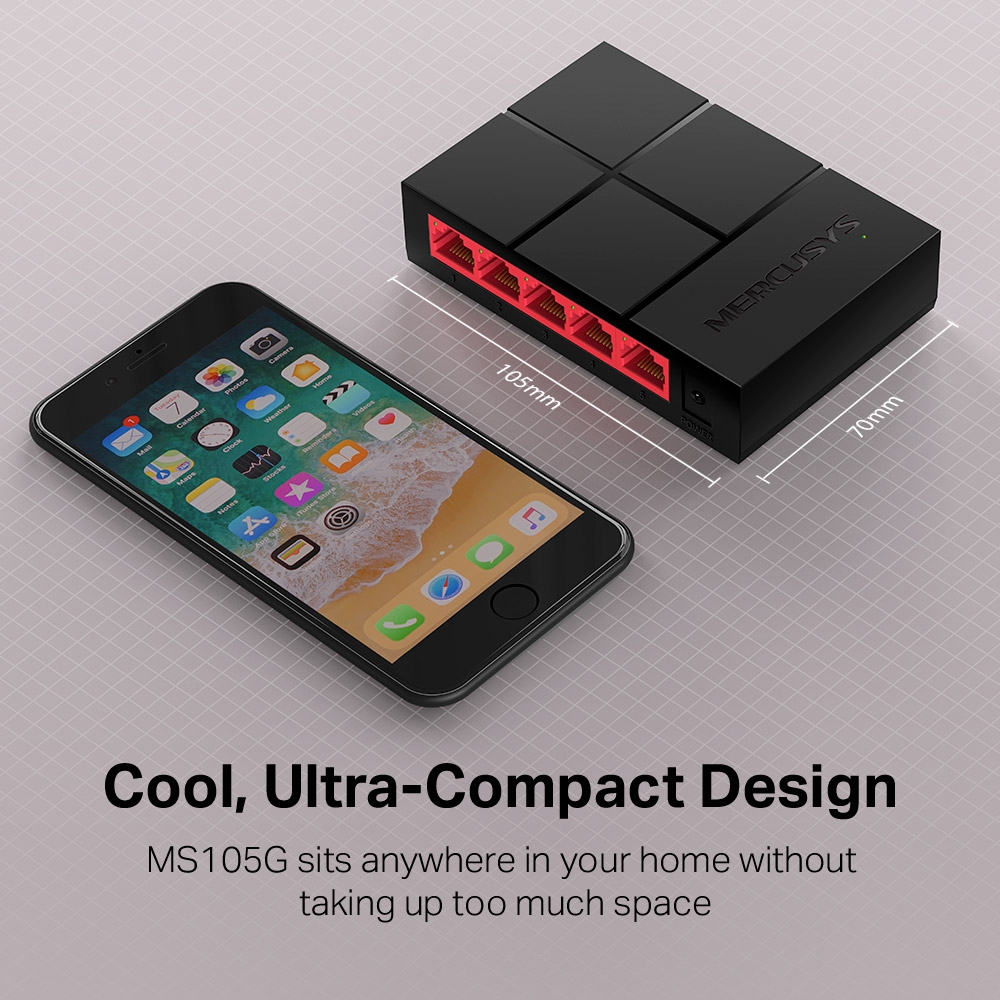

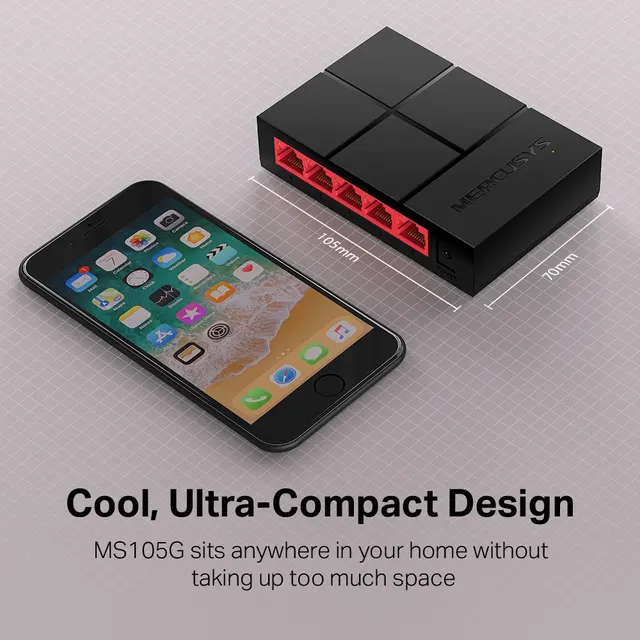

• Compact design for flexible arrangement

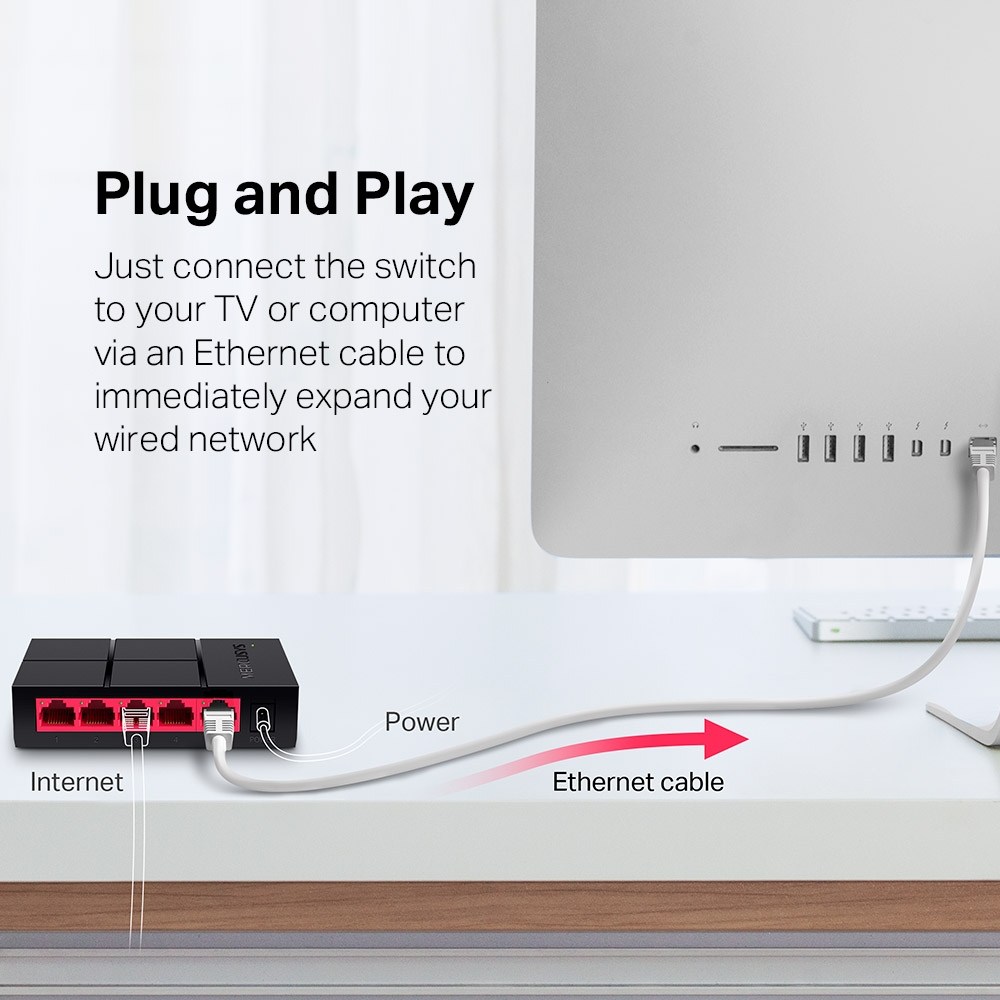

• Plug and play setup, no configuration required
• Green Ethernet technology saves power by up to 82%

Software

Transfer Method: Store and Forward

Hardware

Dimensions: 105×70×24.9 mm



Interfaces: 5 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX



External Power Supply: 5V/0.6A



Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD



Data Rates: 10/100/1000 Mbps at Half Duplex
                   20/200/2000 Mbps at Full Duplex



Buffer Capacity: 512 Kbit



Jumbo Frame: 9 KB



LED: Ethernet Ports (1, 2, 3, 4, 5), Power

Others

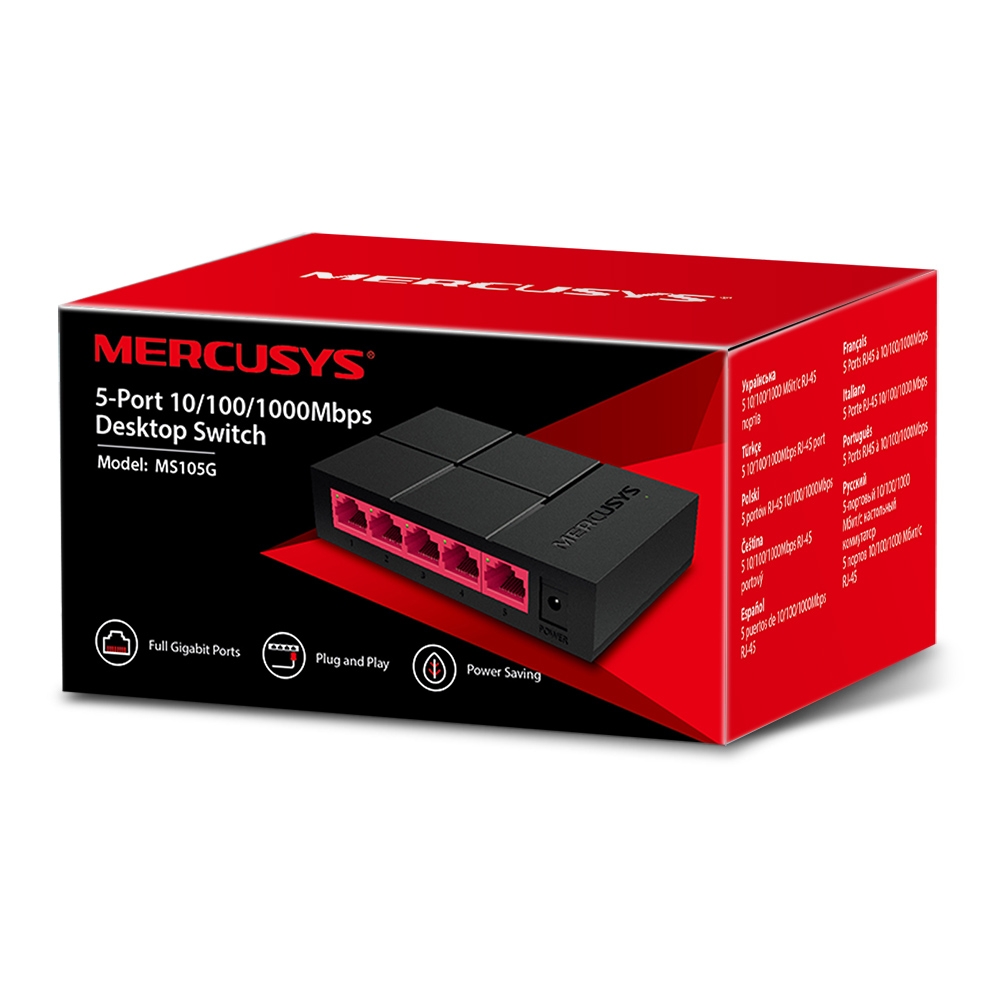

Package Contents



1. 5-Port 10/100/1000Mbps Desktop Switch (MS105G)
2. Power Adapter
3. Quick Installation Guide
