Noyafa

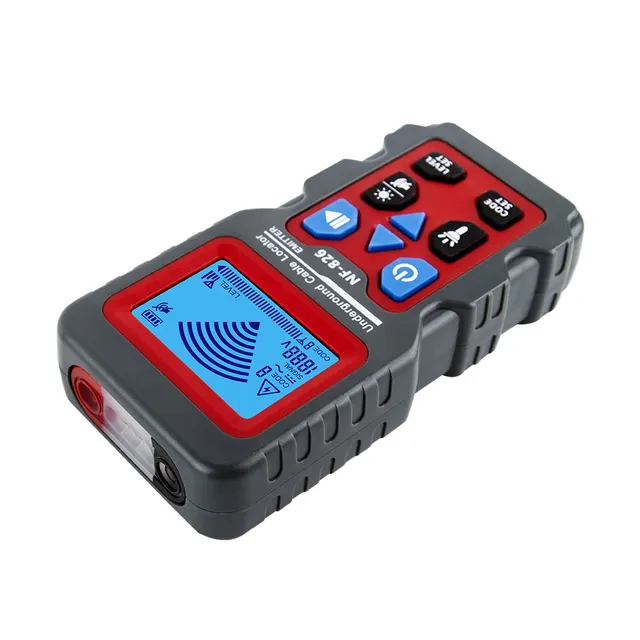

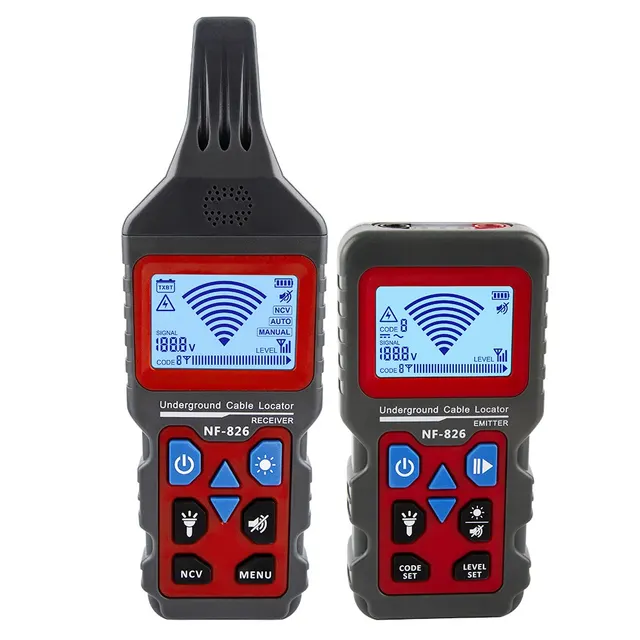

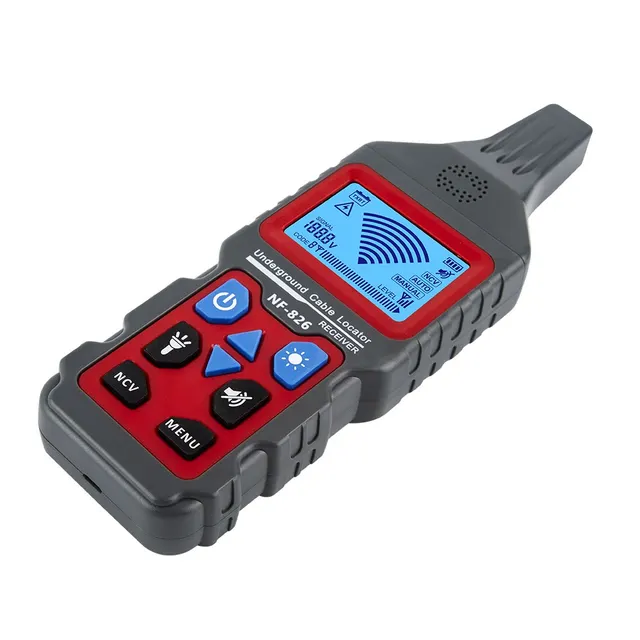

Noyafa Network Multi Tester & Tracking Device with Cable Tracing & Fault Detection NF-826
Order code: 22446EAN: 6971278906827
- Output signal:125KHz
- Voltage measurement range:12V-400V (AC / DC)
- Voltage's dielectric strength:Max. 400V AC/DC
- Cable Depth Measurement:0~2.5m, the depth of tracking depends on the material and specific applications.
- Grid voltage identification:about 0-0.4m
€119.00€179.00incl. VAT
You save €60.00 (34%)
Out of stock
Description
- Detecting and Locating breaks and short circuit in cables and electrical lines buried in wall or underground
- Detecting the laid metal tap water pipe and metal heating pipe
- Detecting interruptions and short-circuits in floor heating
- Detecting fuses and assigning current circuits,tracing sockets and junction boxes having accidentally been covered by plastering
- The transmitter is integrated with the function of AC/DC voltmeter, which can measure 12 to 400V AC/DC voltage on a linear basis
Specifications
- Output signal
- 125KHz
- Voltage measurement range
- 12V-400V (AC / DC)
- Voltage's dielectric strength
- Max. 400V AC/DC
- Cable Depth Measurement
- 0~2.5m, the depth of tracking depends on the material and specific applications.
- Grid voltage identification
- about 0-0.4m
