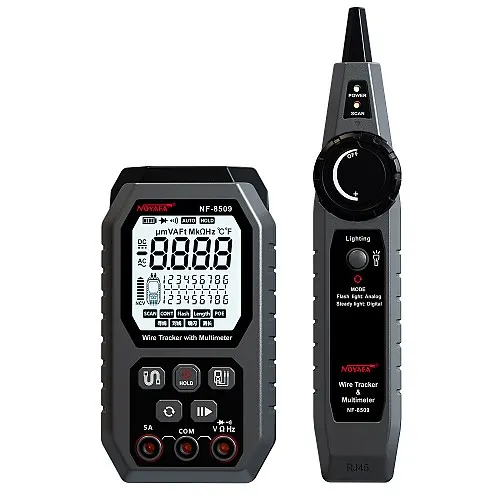

Noyafa NF-8509 Network Tester/Tracker with Multimeter

Order code: UB-4775
€99.00incl. VAT
Ships in 1 working day

Free pickup from our shop

Description

Noyafa NF-8509 Network Tester/Tracker with Multimeter

  • Two scan modes selectable: AC filter & Non AC filter
  • Detect AC voltage presence (50V-1000V).
  • Test physical status for STP, UTP lan cable.
  • Measure cable length accurately , the range is 200m.
  • Hub blink for locating network port by the flashing port light on Hub / Switch. Available to 10M/100M/1000M Hub/ switch.
  • PoE testing : identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard)
  • Digital multimeter function:AC/DC current testing ,AC/DC voltage testing/Diode testing/ temperature testing.

Technical parameters of transmitter

Display: 3.8' FSTN LCD display
Language: English
Button: Function button*4+Power button*1
  • Testing function
1.Wiremapping for RJ45
2.Measuring length for RJ45
3.Tracing RJ45 cable and other metal wires
4.Digital multimeter function:AC/DC current,AC/DC voltage,assitant,
5.NCV function"
  • Wiremapping
Cable continuity test: Yes
USP/STP: Yes
Short circuit: Yes
Max testing range: 2000m
  • Measuring
Cable type: CAT5,CAT6
Measuring range: 5m-200m
Accuracy: ±3M
  • Scanning
Frequency: 455KHz
Tons: 2
Analog mode: Yes
Digital mode: Yes
Max tracing range: 600m
Port-flash 10M/100M/1000M: Yes
  • POE test
Test range DC 5~60V standard / non-standard PoE switch
Voltage display: Yes
PSE type: IEE​E 802.3af/at
  • Measuring range:
AC voltage: 600mV-610V（Accuracy:±0.8%+3）
DC voltage: 600mV-610V（Accuracy:±0.5%+3）
  • Continuity Test
The connection of wires and conductors: ＜50Ω,Alarm
Diode polarity: 0-3.3V
NCV: Test range
  • Resistance
Testing range: 600Ω-60MΩ（Accuracy:±1.0%+5）
  • AC current-DC current
Testing range" 1mA-3A（Accuracy:±0.8%+3）
  • HZ frequency
Testing range: 0-10MHz（Accuracy:±1.0%+3）
  • Temperature: Yes (Show the temperature when testing)
  • Testing cable type :CAT5,CAT6
  • Auto-off: Yes
  • Battery :3.7V 1500mA lithuim battery
  • Low battery indication Yes (3.37V ±0.1V)
  • Charging indication: Yes
  • DC in: DC60V
  • Max working current: ≦200mA
  • Charging current: ≦350mA
  • Dimesion: 137.5X76X34mm
Technical parameters of receiver"
  • Analog and Digital scan Yes
  • Sensitivity adjustable function Yes
  • Analog probe distance 5cm Volume (dB) ＞100dB
  • Digital probe distance 5cm Volume (dB) ＞90dB
  • LED Yes
  • Earphone function Yes
  • Sound tip Yes
  • Auto-off Yes
  • Power 9V Battery
  • Power indicator Yes
  • Low battery indication Yes 7 ±0.1V
  • Interface Description RJ45+earphone socket
  • Max working current ≦ 150mA
  • Dimesion 204.9X38X29mm
