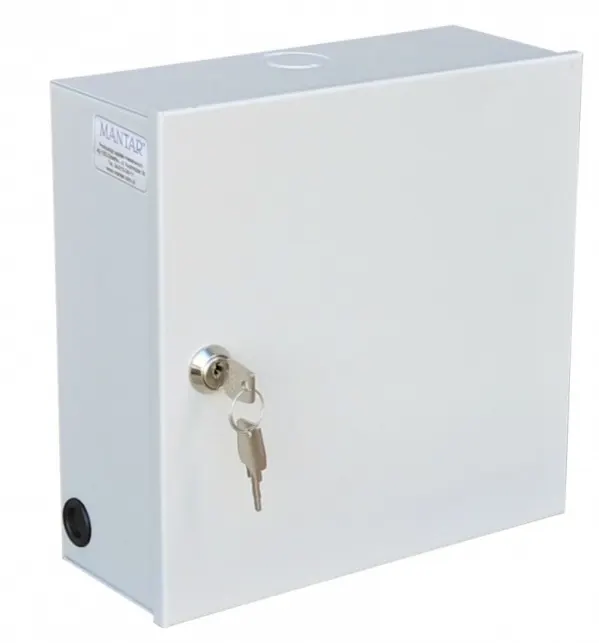

Opton Mantar Fiber Wall Mounted Distribution Frame 12 x SC Duplex PSN-25/25/10
- Frame:12 holes for SC Duplex / LC Quad adapters
- Height:255 mm
- Width:255 mm
- Depth:101 mm
- Installation method:On the wall
- All specifications
Free pickup from our shop
Description

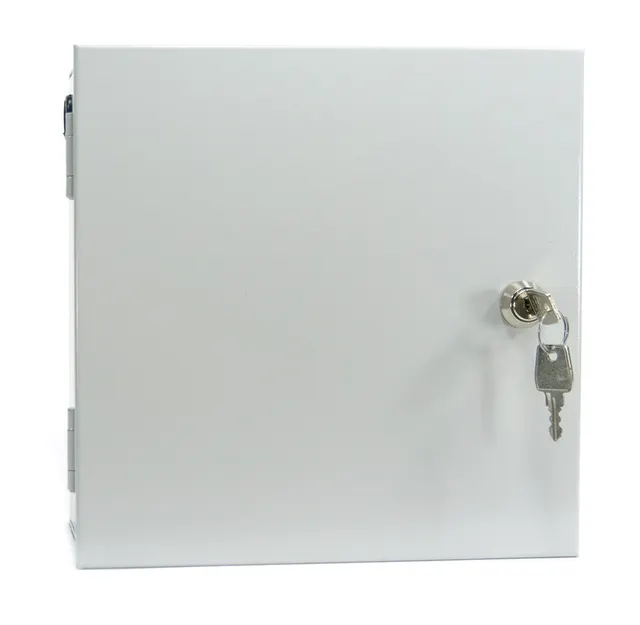

- Wall-mounted switchboard
The offered product is a fiber optic switchboard adapted for wall mounting. It is made of 1 mm thick steel sheet and painted in light gray RAL7035. External dimensions are 255 x 255 x 101 mm.
- Frame for 12 SC Duplex adapters

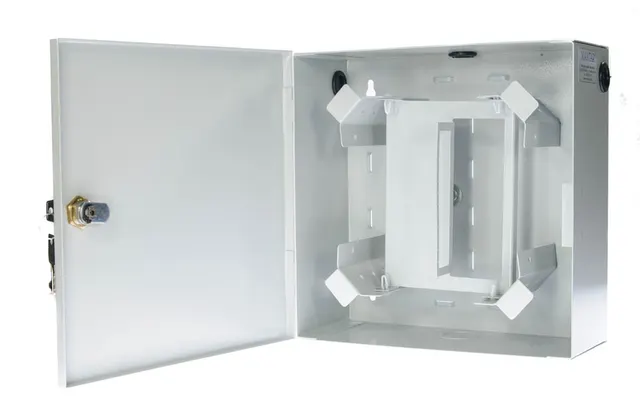

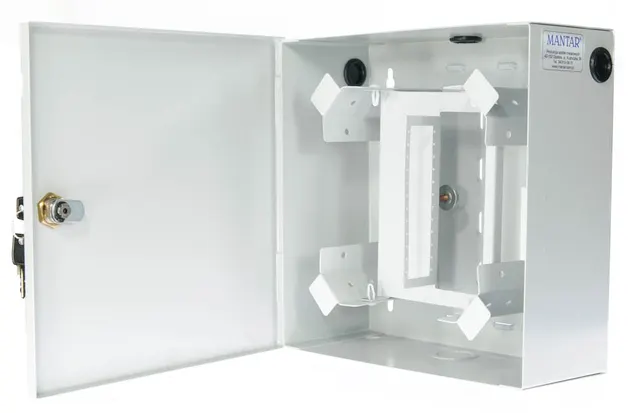

Inside the switchboard there is a frame with 12 holes for mounting SC Duplex or LC Quad adapters. The frame is attached with a centrally placed screw, under it you can mount a splice tray. The switchboard has embossments that make it easier to manage the cables. Additionally, there are a total of 4 handles on the sides for winding the spare cable.
- Universal switchboard
PSN-25/25/10 PK is a universal solution designed for FTTH networks in multi-family buildings. It has 1 opening on each wall, the one in the upper part has a diameter of 19 mm, the others 29/38 mm. The switchboard will work well both in standard PON networks and in combination with an easy access cable.
Specifications
- Frame
- 12 holes for SC Duplex / LC Quad adapters
- Height
- 255 mm
- Width
- 255 mm
- Depth
- 101 mm
- Installation method
- On the wall
- Libra
- 3 kg
- Sheet thickness
- 1 mm
- Color
- RAL7035 light gray
