Opton Mantar Fiber Wall Mounted Distribution Frame 6 x SC Duplex PSN-4
- Frame:6 holes for SC Duplex / LC Quad
- Height:295 mm
- Width:294 mm
- Depth:102 mm
- Mounting Type:Wall mounting
- All specifications
Free pickup from our shop
Description

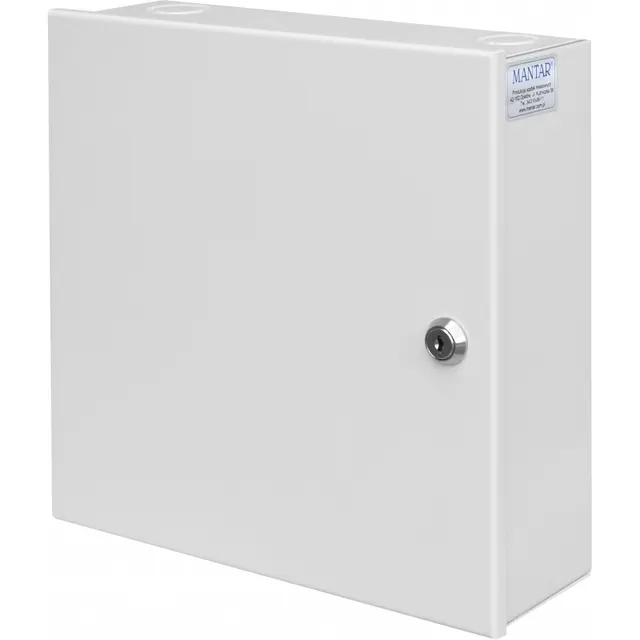

- Wall-mounted distribution frame
The offered product is a fiber optic patch panel designed for wall mounting. It is made of 1 mm thick steel sheet and painted in light gray RAL7035. The external dimensions are 295 x 294 x 102 mm.
- Frame for 6 SC Duplex Adapters

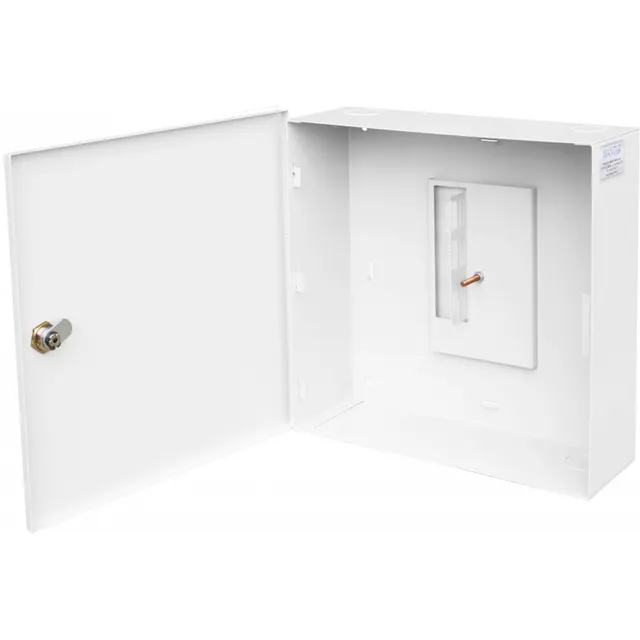

Inside the patch panel, there is a frame with 6 holes designed for mounting SC Duplex or LC Quad adapters. The frame is secured with a centrally placed screw, allowing you to install a splice tray underneath. The patch panel features embossments that facilitate cable management. You can use cable ties to secure the cables, such as for attaching cable slack.
- Ideal Solution for Vertical Cable Installation
The patch panel is ideal for indoor use, especially if you are installing vertical cabling. It has 4 knockout holes with diameters of 38/29 mm, with 2 located at the bottom and 2 at the top. You can introduce a cable from the bottom, use a single fiber, and then route the cable upwards. The patch panel comes with full doors that can be locked with a cam lock.
Specifications
- Frame
- 6 holes for SC Duplex / LC Quad
- Height
- 295 mm
- Width
- 294 mm
- Depth
- 102 mm
- Mounting Type
- Wall mounting
- Weight
- 2,5 kg
- Plate thickness
- 1 mm
- Colour
- Light gray RAL7035
