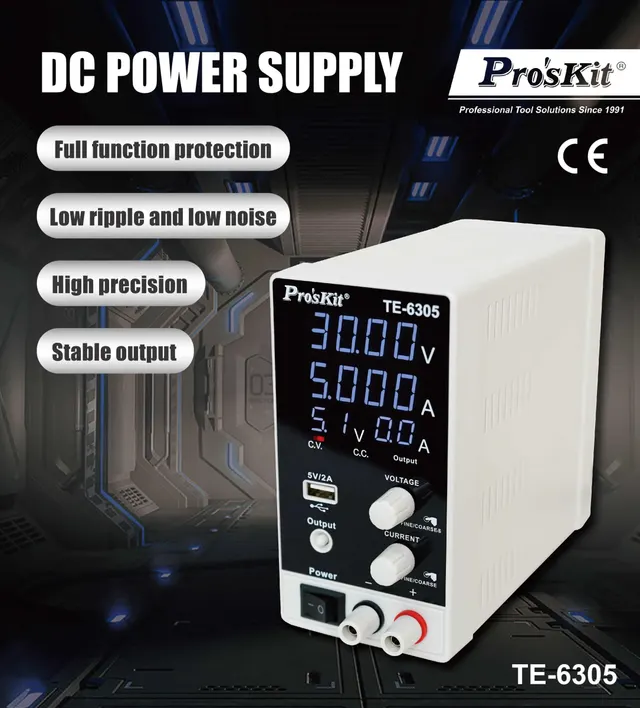

Proskit Bench Switching Power Supply 0-30V / 0-5A
Order code: 29432EAN: 4711552168877
- Input:100 - 240V~ 50/60Hz
- Output:(adjustable) 0 - 30 V
- Current:(adjustable) 0 - 5 A
- Load regulation (voltage):CV≤0.1% +10mV
- Signal regulation (voltage):CV≤0.01% +3mV
- All specifications
€109.00incl. VAT
Ships in 2-4 working days
Free pickup from our shop
Description
- Constant voltage and current, high precision, stable output

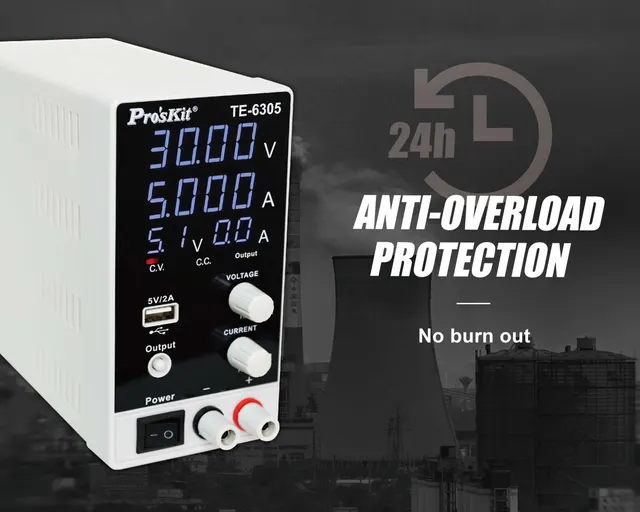

- Full function protection
- Low ripple and low noise

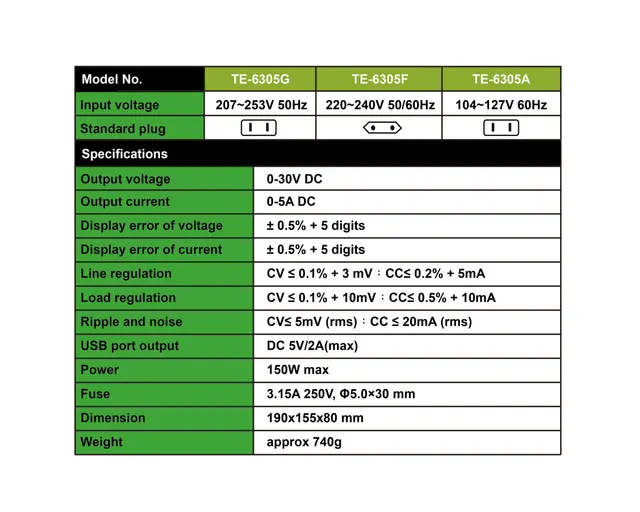

Specifications
- Input
- 100 - 240V~ 50/60Hz
- Output
- (adjustable) 0 - 30 V
- Current
- (adjustable) 0 - 5 A
- Load regulation (voltage)
- CV≤0.1% +10mV
- Signal regulation (voltage)
- CV≤0.01% +3mV
- Ripple & noise (voltage)
- CV≤5mVrms
- Load regulation (current)
- LCV≤0.5% +10mA
- Signal regulation (current)
- LCV≤0.2% +5mA
- Ripple & noise (current)
- CV≤20mArms
- Efficiency
- ≥80%
- Display precision

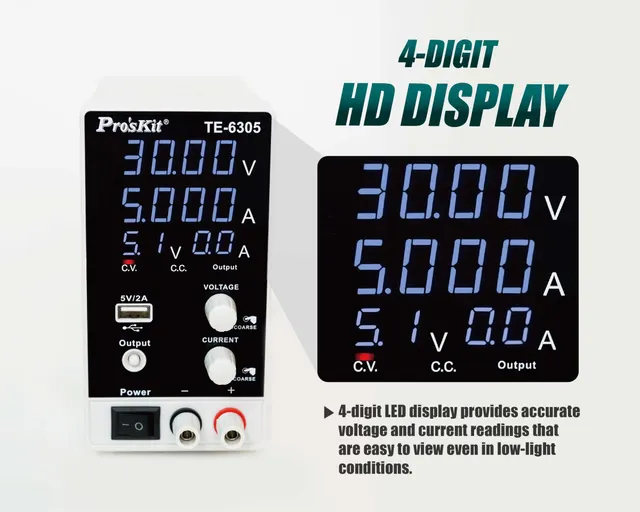

- 0.02A/0.2V ± 2digit LED display
- Operating Conditions
- 0~40°C, umidità relativa: ≤80%
- Dimensions
- 190x80x155 cm
- Weight
- 0.74 kg
