Sonoff

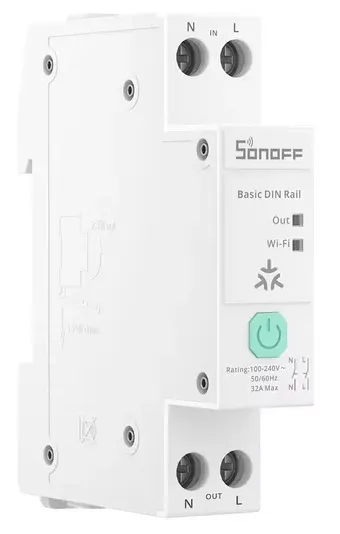

Sonoff WiFi Smart Switch BASIC-1GSP Din-Rail With Matter 32A (cuts off neutral and Live)
Order code: 30833EAN: 6979033600379
- Model:BASIC-1GSP
- MCU:BK7238
- Rating:100-240V~ 50/60Hz 32A Max
- Max. load:7680W
- Net Weight:92.1g
- All specifications
€24.99incl. VAT
Ships in 2-4 working days
Free pickup from our shop
Description

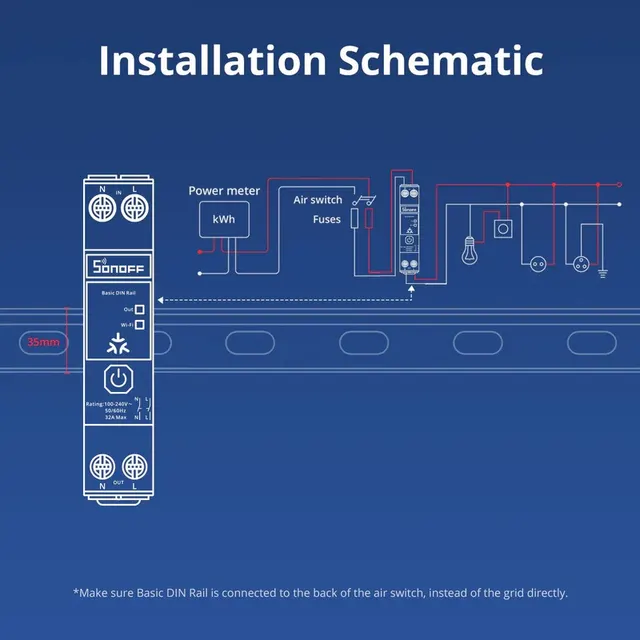

- Standard DIN Rail Mounting : Compatible with standard DIN rails for quick installation inside electrical distribution boxes without extra drilling or modifications, ideal for centralized electrical management in buildings, factories, and industrial environments.
- Real-Time Energy Monitoring : Track voltage, current, power, and energy consumption in real time. Supports electricity cost calculation, historical data storage/export, and helps optimize energy usage while reducing bills.
- 32A High-Power Load Support : Designed for high-power circuits up to 32A, suitable for electric floor heating, EV charging stations, water heaters, and other heavy-duty electrical devices.

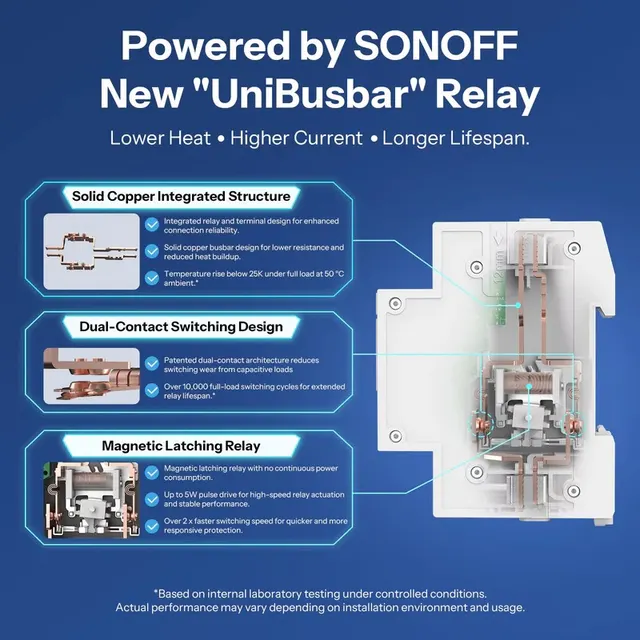

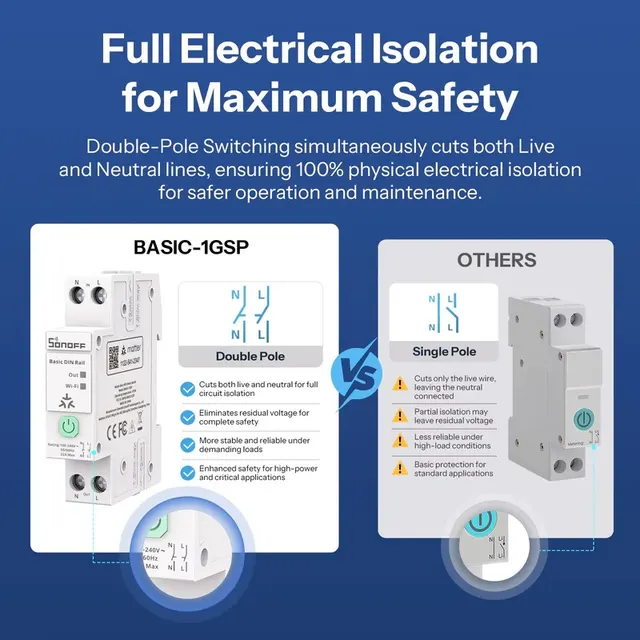

- Overload Protection & Double-Pole Safety Switch : Customizable voltage, current, and power thresholds. The device automatically cuts off output when limits are exceeded. The double-pole switching design disconnects both live and neutral wires, ensuring full physical isolation and improving electrical safety and device protection.
- Matter Certified Compatibility : Works seamlessly with major Matter ecosystems including Apple Home, Google Home, Amazon Alexa, and Samsung SmartThings for smarter and more flexible automation.
Specifications
- Model
- BASIC-1GSP
- MCU
- BK7238
- Rating
- 100-240V~ 50/60Hz 32A Max
- Max. load
- 7680W
- Net Weight
- 92.1g
- Product dimension
- 84 x 66.5 x 18 mm
- Color
- White
- Casing Material
- PC
- Recommended wire gauge range
- For 11 AWG to 6 AWG (4mm² to 10 mm²) SOL/STR copper conductors only
- Applicable place
- Indoor
- Operating Temperature
- 15T50 (-15℃~50℃)
- Operating Humidity
- 10% ~ 90% RH, non-condensing
- Certification
- CE/RoHS/FCC/CP65
