Sonoff

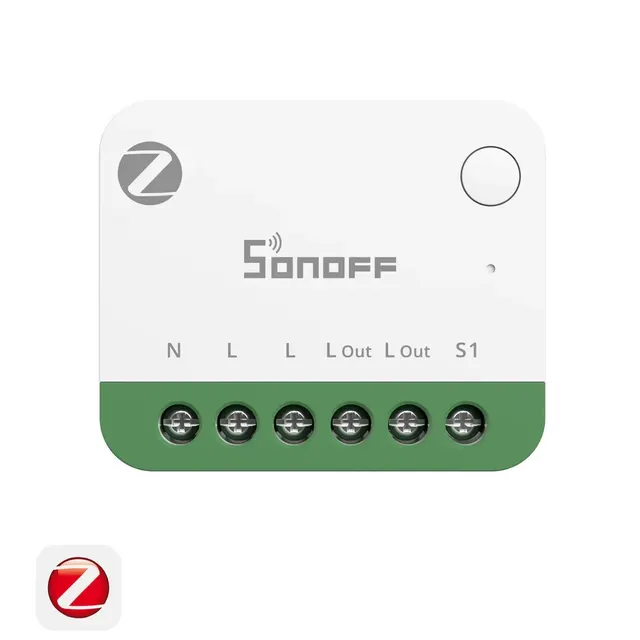

Sonoff Zigbee Smart Switch Compact MINI-ZB1GSP
Order code: 30836EAN: 6979033600515
- Product Model:MINI-ZB1GSP
- Rating:16A 110-240V~ 50/60Hz Max Resistive load μ
- Zigbee:IEEE 802.15.4
- Net Weight:27.3g

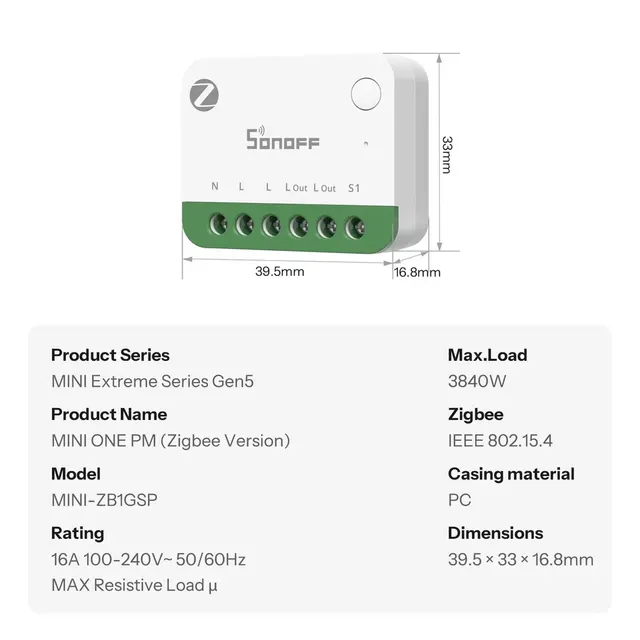

- Dimensions:39.5 × 33 × 16.8mm
- All specifications
€21.99incl. VAT
Ships in 2-4 working days
Free pickup from our shop
Description

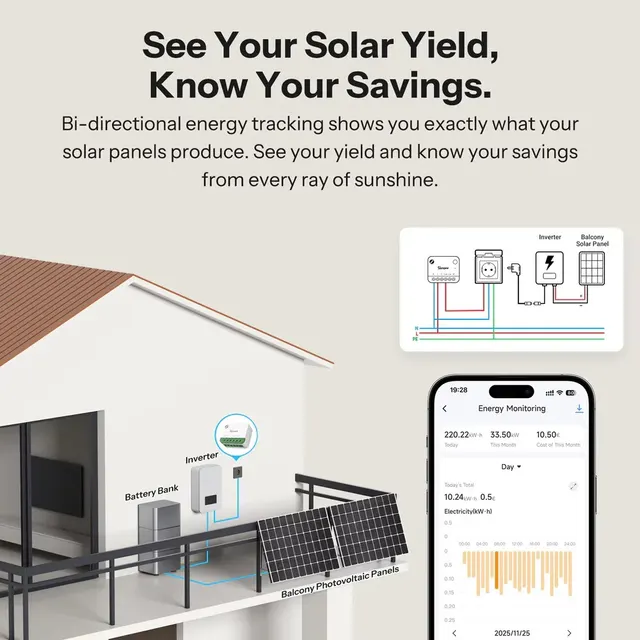

- Energy Monitoring & Generation : Track both electricity consumption and renewable generation from solar systems. The app provides visual charts and exportable data for smarter energy management
- Energy Billing & Tariff Optimization : Create accurate electricity bills with customizable currency and rates. Supports time-of-use pricing, tracking costs across different periods to identify savings opportunities and optimize appliance usage
- Smart Load Detection & Alerts : Automatically detects the real operating status of up to 16A appliances like coffee makers, ovens, and kettles by monitoring power changes, and sends app notifications when tasks finish

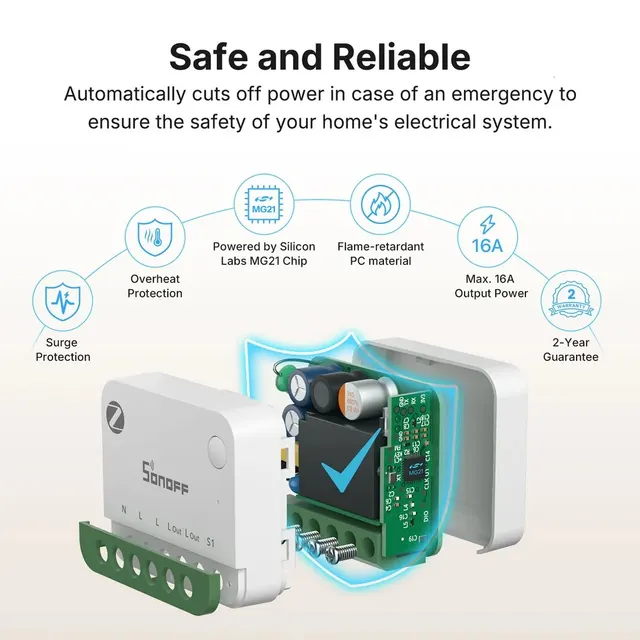

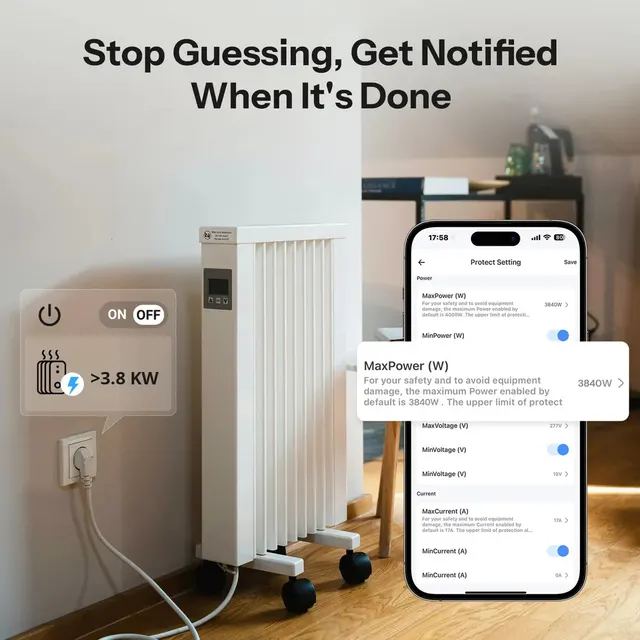

- Advanced Protection : Provides overload, overcurrent, overvoltage, and undervoltage protection with customizable thresholds. Automatically cuts power when limits are exceeded and includes overcharge protection to extend battery life
- Zigbee 3.0 & Network Extension : Built on Zigbee 3.0 for seamless smart home integration and automation. Also works as a Zigbee router, relaying signals to extend network range and improve stability
Specifications
- Product Model
- MINI-ZB1GSP
- Rating
- 16A 110-240V~ 50/60Hz Max Resistive load μ
- Zigbee
- IEEE 802.15.4
- Net Weight
- 27.3g
- Dimensions
- 39.5 × 33 × 16.8mm
- Color
- White+Green
- Housing Material
- PC
- Recommended Wire Gauge
- 18 AWG to 14 AWG (0.75mm² to 2.5mm²) SOL/STR copper conductor only
- Installation Location

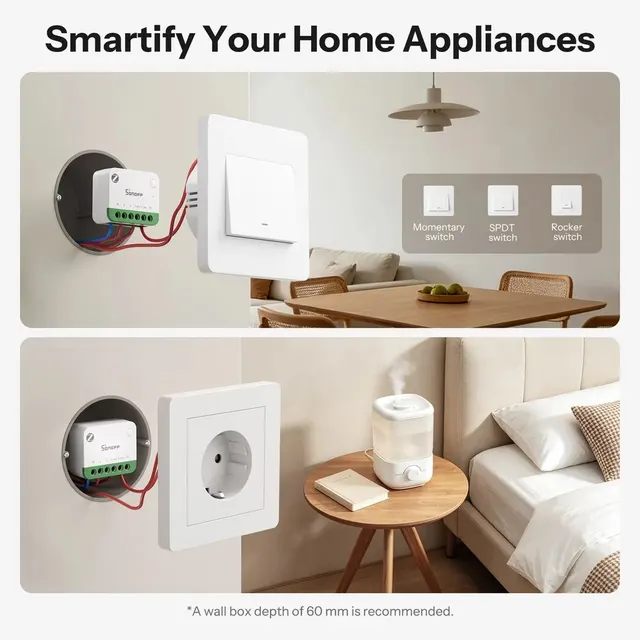

- Indoor concealed installation
- Operating Temperature
- -10℃ ~ 40℃
- Operating Humidity
- 10%~90% RH, non-condensing
- Certifications
- CE / RoHS / FCC
