Sonoff

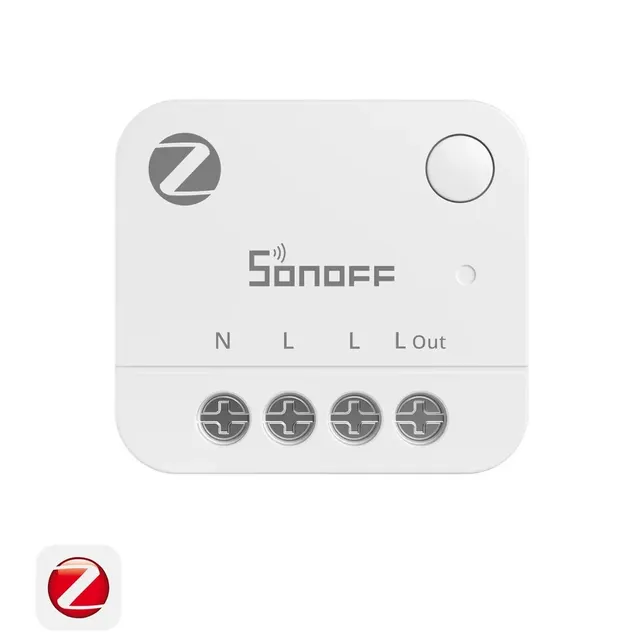

Sonoff Zigbee Smart Switch With Power Meter MINI-ZB1GP
Order code: 30837EAN: 6979033600522
- Product Model:MINI-ZB1GP
- Rating:100-240V~ 50/60Hz 16A
- Zigbee:IEEE 802.15.4
- Net Weight:14g
- Dimensions:32x29x15.9mm
- All specifications
€16.99incl. VAT
Ships in 2-4 working days
Free pickup from our shop
Description
- Real-Time Energy Tracking : Monitor real-time power consumption or renewable energy generation from solar systems. Access detailed charts, historical records, and exportable data directly in the app
- Smart Cost Calculation : Support fixed electricity rates and time-of-use tariffs to generate accurate energy cost reports. Gain clear insights into energy expenses across different pricing periods, helping you manage electricity costs more effectively
- Intelligent Appliance Monitoring : Recognizes the operating status of connected appliances up to 16A and sends instant notifications when tasks are completed, helping you stay informed without constant checking

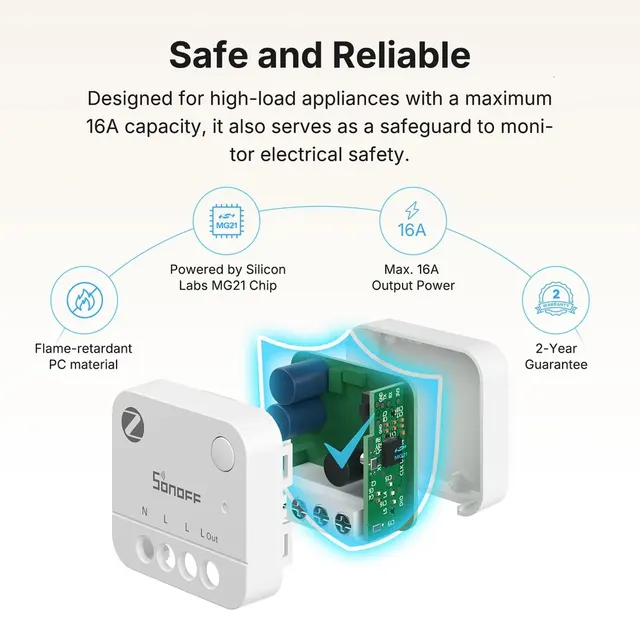

- Comprehensive Safety Protection : Safeguard connected devices with customizable overload, overcurrent, overvoltage, and undervoltage protection. Receive instant notifications via the eWeLink app when preset thresholds are exceeded
- Reliable Zigbee Connectivity : Featuring Zigbee 3.0 technology for stable communication and seamless automation. Functions as a Zigbee repeater to strengthen signal coverage and enhance network performance
Specifications
- Product Model
- MINI-ZB1GP
- Rating
- 100-240V~ 50/60Hz 16A
- Zigbee
- IEEE 802.15.4
- Net Weight
- 14g

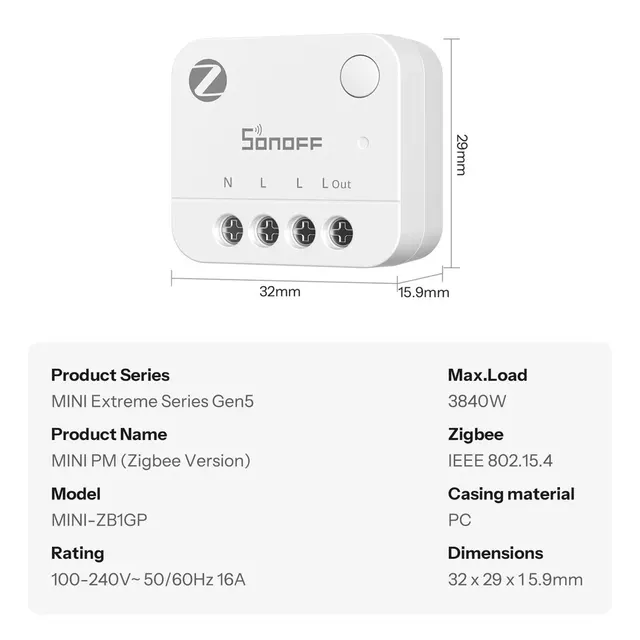

- Dimensions
- 32x29x15.9mm
- Color
- White
- Housing Material
- PC
- Recommended Wire Gauge
- Value
- Heading
- 18 AWG to 14 AWG (0.75mm² to 2.5mm²) SOL/STR copper conductor only
- Installation Location
- Indoor concealed installation
- Operating Temperature
- -10℃~ 40℃
- Operating Humidity
- 10%~90% RH / non-condensing
- Voltage measurement range
- 100-240V
- Current Measurement Range
- 0-16A
- Power Measurement Range
- 0-3840W
