Sonoff

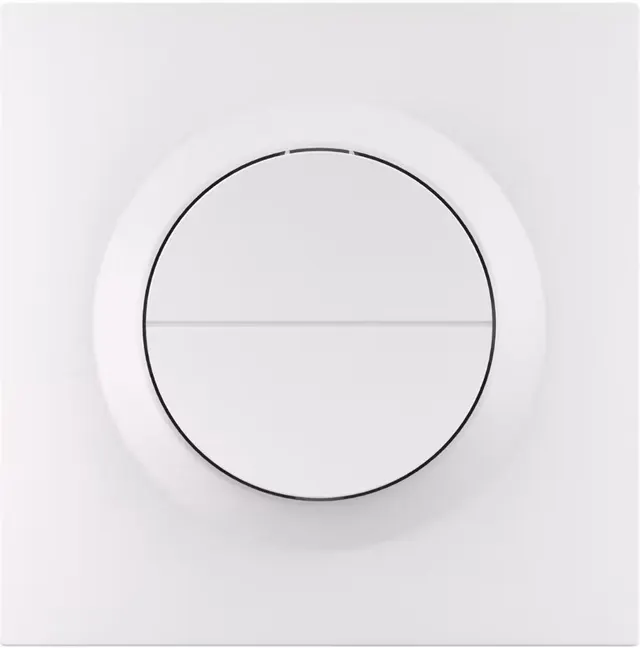

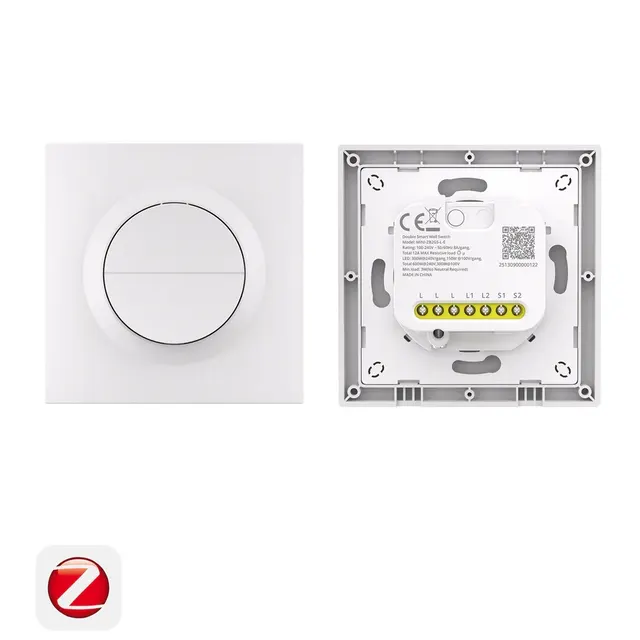

Sonoff Zigbee Smart Wall Mechanical Switch 1-Button 2 Gang White With Matter (no neutral)
Order code: 29734EAN: 6979033600102
- Product Type:Zigbee Double Smart Wall Switch (No Neutral Required)
- Model:MINI-ZB2GS-L-E 2
- MCU:EFR32MG22
- Rating:100-240V~ 50/60Hz 8A/gang, Total 12A MAX Resistive load μ
- LED:300W@240V/gang, 150W@100V/gang, Total 600W@240V, 300W@100V
- All specifications
€27.99incl. VAT
Ships in 2-4 working days
Free pickup from our shop
Description
- No Neutral Wire Required, Easy Installation : Designed for homes without a neutral wire, no bypass needed on the load. Simple retrofit saves time, effort, and installation costs
- Flexible Dual-Channel Control : Innovative dual-channel design supports up to 12A total load, with 8A per channel, enabling flexible current allocation for lights
- Zigbee 3.0 Reliable Connectivity : Built on the global Zigbee 3.0 standard, ensuring seamless integration with mainstream Zigbee ecosystems, stable connections, and low power consumption
- Enhanced Smart Experience : Supports Zigbee Simple Setup (ZSS) and Zigbee Binding for one-tap pairing and automatic device syncing. Devices remain locally linked even if the network or hub goes offline
- Safe, Reliable, And Durable : Features a flame-retardant housing with surge and overload protection, plus a 100,000-cycle long-life relay for durable, stable, and continuous operation
Specifications
- Product Type
- Zigbee Double Smart Wall Switch (No Neutral Required)
- Model
- MINI-ZB2GS-L-E 2
- MCU
- EFR32MG22
- Rating
- 100-240V~ 50/60Hz 8A/gang, Total 12A MAX Resistive load μ
- LED
- 300W@240V/gang, 150W@100V/gang, Total 600W@240V, 300W@100V
- Min. load
- 3W (No Neutral Required)
- Zigbee
- IEEE 802.15.4
- Net Weight
- 96.5g

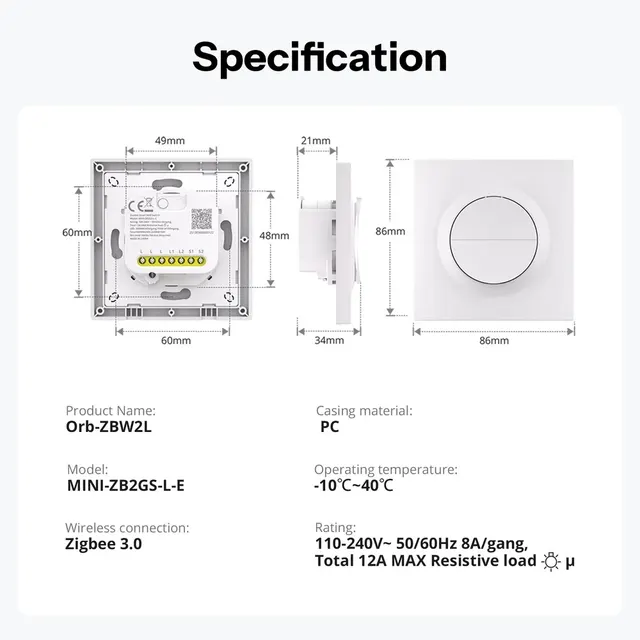

- Product dimension
- 86x86x33.7mm
- Color
- White
- Casing Material
- PC
- Diameter of wiring (recommend)
- 16AWG to 14AWG SOL/STR copper conductor only
- Applicable place
- Indoor
- Working Temperature
- 10T40 (-10℃~40℃)
- Working humidity
- 5-95%RH, non-condensing
- Certification
- CE/RoHS
