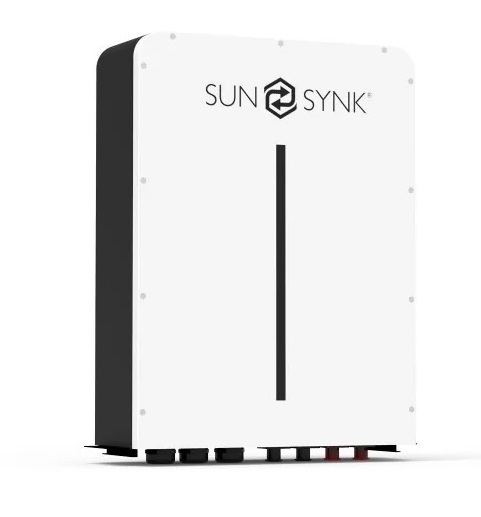

SUNSYNK Battery (LFP) Outdoor 5.12KWh
SUNSYNK-L5.1 lithium iron phosphate battery is one of the new energy storage products developed and produced by SUNSYNK. SUNSYNK-L5.1 is especially suitable for application scenarios of high power, limited installation space, and long cycle life. It can be used to support reliable power for various types of equipment and systems
The energy storage module includes lithium-ion rechargeable batteries with 5.12kWh capacity, and the controller enables a central of multiple modules. Thus, batteries can be connected in parallel to expand capacity and power for applications that require larger capacity and longer power support
SUNSYNK-L5.1 has a built-in BMS (battery management system), which can manage and monitor cell-battery information, including voltage, current, and temperature. Moreover, the BMS can balance cells charging and discharging to extend cycle life.
High-power density: flat design, wall-mounted, and 19-inch rack-mount, saving installation space
SUNSYNK-L5.1
Main Parameter
- Battery Chemistry : Lithium Ferro Phosphate (LifePO4 or LFP)
- Capacity : 100 Ah
- Scalability : Max. 32 pcs in parallel (163.8kWh)
- Nominal Voltage : 51.2 V
- Operating Voltage : 43.2~57.6 V
- Energy : 5.12 kWh
Other Parameter
- Recommend Depth of Discharge : 90%
- Dimension (W/H/D) : 440*620*135mm (don’t include Circuit Breaker, terminals and hanging boards)
- Weight Approximate : 50kg
- Master LED Indicator : 5 LED (SOC 20%~100%) / 3 LED (working, alarming, protecting)
- IP Rating of enclosure : IP65
- Working Temperature Charge : 0ºC ~ +55ºC (optional heating: -20ºC~+55ºC)
- Discharge : -20ºC ~ +55ºC
- Storage Temperature : -20ºC ~ +35ºC
- Humidity : 5% ~ 95%
- Altitude : ≤2000m
- Installation : Wall Mounted or 19-inch standard cabinet
- Communication Port : CAN2.0, RS485
- Certification : IEC62619, CE, UN38.3
