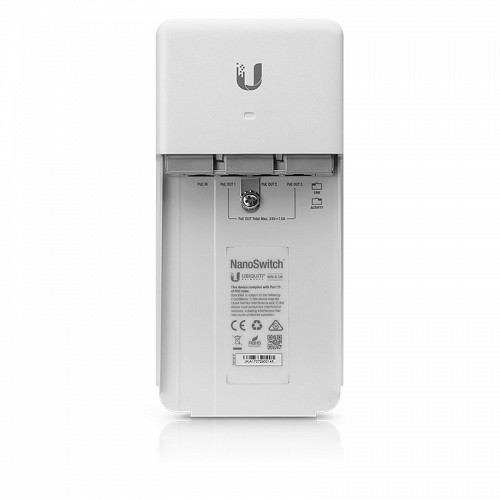

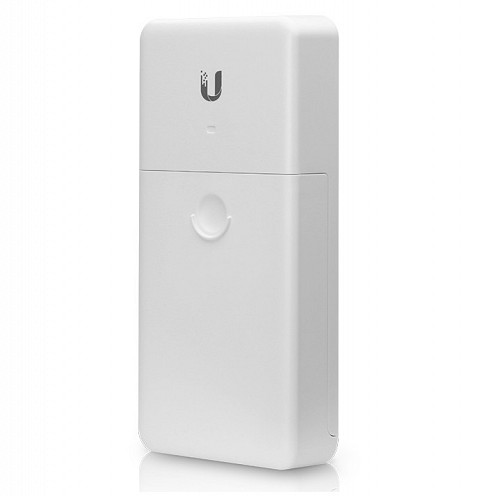

Ubiquiti N-SW NanoSwitch Outdoor 4-Port PoE Passthrough Switch

Ubiquiti N-SW NanoSwitch Outdoor 4-Port PoE Passthrough Switch

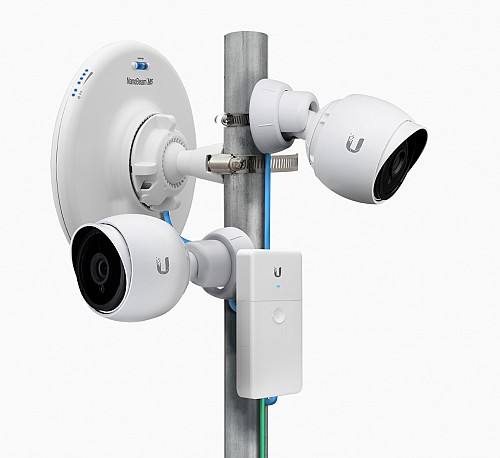

The NanoSwitch is an outdoor, 4-port Gigabit switch with PoE pass-through. It is powered by 24V Passive PoE and provides up to 24W of power on three PoE out ports. The NanoSwitch is designed for outdoor deployment and supports up to 4 Gbps total, non-blocking line rate.

*PoE Injector Not Included

• Processor: RTL8367N-VB
• On-Board Flash Storage:    4Kbits
• Total Non-Blocking Line Rate: 4Gbps
• TYP. Power Consumption:    1.5W
• Power Method: Passive 24V PoE-in
• Supported Voltage Range: Passive 24V PoE-in

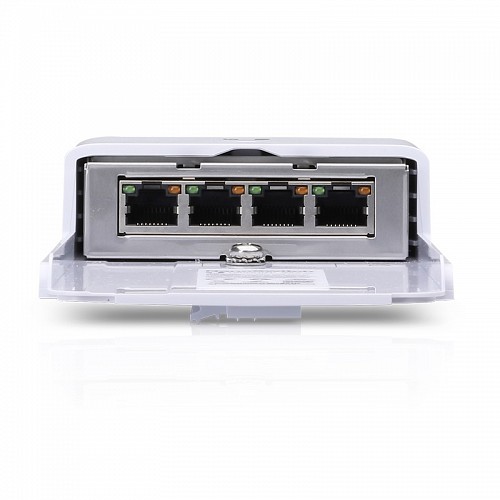

• Networking Interfaces: (4) 10/100/1000 Mbps Ethernet RJ45
• PoE Interfaces:    Passive 24V PoE-in
• Max PoE+ Wattage per Port by PSE: 24V@1A per port / Total [email protected] for three ports
• Passive PoE Max wattage per port: 24W per port / Total 36W for three ports
• Dimensions: 196.4*93.5*32.4mm
• Weight: 269g
• Enclosure Characteristics: White Polycarbonate
• Operating Temperature: -30C ~ 70C
• Operating Humidity: 5 to 95% Non-Condensing
