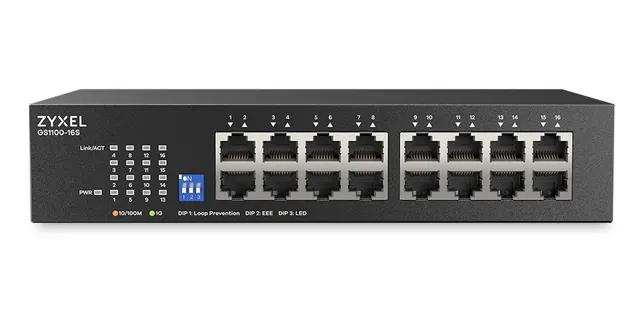

Zyxel Switch Gigabit Ethernet 16-Port R/M UK Plug GS1100-16S
- <strong>Product Classification:</strong> 16-port GbE Unmanaged Switch
- <strong>Total Port Count:</strong> 16 x 10/100/1000 Mbps (RJ-45)
- <strong>Switching Capacity:</strong> 32 Gbps
- <strong>Forwarding Rate:</strong> 23.8 Mpps
- <strong>Packet Buffer:</strong> 1 MB
- All specifications
Free pickup from our shop
Description
Expand your wired network capacity seamlessly and reliably with the Zyxel GS1100-16S. This 16-port Gigabit unmanaged switch is designed to deliver immediate, wire-speed network connectivity for office environments, small businesses, and home setups requiring high throughput without the hassle of configuration. Built with a robust metal housing that easily fits into standard IT racks, it ensures maximum durability and optimal heat dissipation. Thanks to its fanless architecture, the GS1100-16S guarantees completely silent operation, making it perfect for shared, noise-sensitive workspaces. With built-in energy-efficient Ethernet technologies and a practical front-panel DIP selector, you gain instant control over your network's power consumption and basic operational modes without needing a software interface.
- True Plug-and-Play Simplicity: Instantly expand your Gigabit network with zero software configuration required—just plug in your Ethernet cables and power up.
- Non-Blocking Gigabit Performance: Experience rapid file transfers and media streaming with a full 32 Gbps switching capacity and 16 high-speed Gigabit ports.
- Whisper-Quiet Operation: The smart, passive cooling fanless design ensures 0 dBA acoustic noise, blending perfectly into quiet office environments.
- Energy-Efficient Networking: Compliant with the IEEE 802.3az standard, the switch dynamically adjusts power output based on cable length and network traffic, helping reduce operational overhead.
- Built for the Rack: Measuring at a standard 1U height (44 mm) with a durable metal chassis, it is perfectly suited for desktop placement or direct integration into a server cabinet.
Specifications
- <strong>Product Classification
- </strong> 16-port GbE Unmanaged Switch
- <strong>Total Port Count
- </strong> 16 x 10/100/1000 Mbps (RJ-45)
- <strong>Switching Capacity
- </strong> 32 Gbps
- <strong>Forwarding Rate
- </strong> 23.8 Mpps
- <strong>Packet Buffer
- </strong> 1 MB
- <strong>MAC Address Table
- </strong> 16K entries
- <strong>Jumbo Frame Support
- </strong> 12 KB
- <strong>Flash / RAM Memory
- </strong> 2 MB / 256 KB
- <strong>Power Input
- </strong> 100 to 240 V AC, 50/60 Hz (Internal power supply)
- <strong>Minimum Power Consumption
- </strong> 2.36 Watts (without connections)
- <strong>Maximum Power Consumption
- </strong> 8.33 Watts (under full load)
- <strong>Physical Dimensions (W x D x H)
- </strong> 215.5 x 133 x 44 mm
- <strong>Weight
- </strong> 0.81 kg
- <strong>Operating Temperature
- </strong> 0°C to 40°C
- <strong>Storage Temperature
- </strong> -40°C to 70°C
- <strong>Operating and Storage Humidity
- </strong> 10% to 95% (non-condensing)
- <strong>Mean Time Between Failures (MTBF)
- </strong> 6,476,619 hours (at 25°C)
- <strong>Acoustic Noise Level
- </strong> 0 dBA (Fanless design)
- <strong>Surge Protection
- </strong> Power supply (Line-to-GND: 2 KV, Line-to-Line: 1 KV)
- <strong>ESD Protection
- </strong> 8 KV (air discharge) / 4 KV (contact discharge)
